| Detailed Specifications |
| Camera Type |
Digital interchangeable lens system camera |
| Image Sensor |
Type: Live MOS Sensor
Total pixels: 13.06 Megapixels
Camera effective pixels: 12.10 Megapixels
Colour filter: Primary color filter
Dust reduction system: Supersonic wave filter |
| Image Sensor Size |
17.3 x 13.0 mm (in 4:3 aspect ratio) |

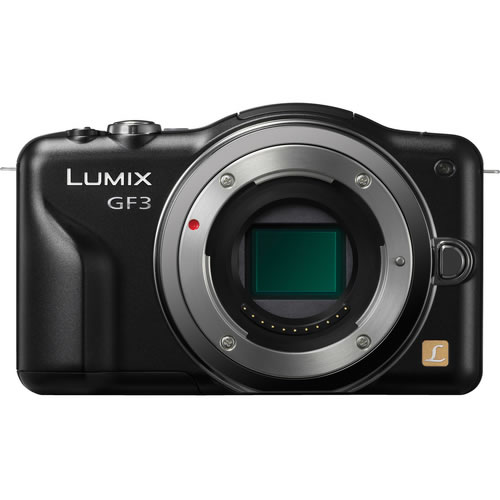

| Mount |
Micro Four Thirds mount |
| Focus |
Type:Contrast AF system, Focus mode:AFS/ AFC/ MF
AF mode: Face detection / AF Tracking / 23-area-focusing / 1-area-focusing/Pinpoint |
| AF detective range |
EV 0-18 (ISO100 equivalent) |
| Focus Others |
Quick AF, Continuous AF (during motion image recording), AF+MF, Touch shutter, Touch MF Assist |
| AF/AE Lock |
Set the Fn button in custom menu to AF / AE lock |
| AF Assist Lamp |
Yes |
| ISO Sensitivity |
Auto / Intelligent ISO / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 |
| White Balance |
Auto / Daylight / Cloudy / Shade / Flash / Halogen / Color Temperature / White Set 1 / White Set 2
(Selectable at Portrait, Soft Skin, Sports, Baby, Pet, High Sensitivity, Hi-Speed Burst, Pinhole, Panorama Assist mode |
| White Balance Adjustment |
Blue/Amber Bias
Magenta/Green Bias |
| Colour Temperature Setting |
2500-10000K in 100K |
| White Balance Bracket |
3 exposures in blue/amber axis or in magenta/green axis |
| Exposure |
Program AE, Aperture Priority AE, Shutter Priority AE, Manual |
| Exposure Compensation |
1/3 EV Step, ± 3 EV |
| Auto Bracketing (AE) |
3,5 frame, in 1/3 or 2/3 EV Step, ±4/3 EV |
| Light Metering System |
Intelligent Multiple / Center Weighted / Spot |
| Metering Range |
EV 0-18 (F2.0 lens, ISO 100) |
| Still Image Scene Mode |
Portrait / Soft Skin / Scenery / Architecture / Sports / Peripheral Defocus / Flower / Food / Objects / /Night Portrait / Night Scenery / Illiminatioms / Baby 1, 2 / Pet / Party / Sunset |
| Movie Scene Mode |
Portrait/SoftSkin/Scenery/Architecture/Sports/Flower/Food/Objects/Lowlight/Party/Sunset (Activated by selecting Still Image SCN mode then pressing MovieButton.) |
| Movie Scene Mode Note |
(Activated by selecting Still Image SCN mode then pressing Movie Button. Still Image SCN modes without corresponding Movie SCN mode is recorded in mode suitable for the recording situation.) |
| Shutter Speed/Shutter System |
Type: Focal-plane shutter
Shutter speed: Still Images: 1/4000~60
Motion image: 1/16000~1/30 (NTSC) |
| Self Timer |
10sec, 3 images/ 2sec / 10sec |
| Recording Format |
Still Image: JPEG(DCF, Exif 2.3), RAW, MPO (When attaching 3D lens in Micro Four Thirds standard)
Motion Image: AVCHD / QuickTime Motion JPEG |
| Image Quality |
RAW, RAW+Fine, RAW+Standard, Fine, Standard,
MPO+Fine, MPO+Standard (with 3D lens in Micro Four Thirds standard) |
| Colour Space |
sRGB, Adobe RGB |
| 4:3 Aspect Ratio (Still Image) |
[4:3] 4000x3000(L) / 2816x2112(M) / 2048x1536(S) / 1600x1200(When attaching 3D lens in Micro Four Third System standard) |
| 3:2 Aspect Ratio (Still Image) |
[3:2] 4000x2672(L) / 2816x1880(M) / 2048x1360(S) / 1600x1064(When attaching 3D lens in Micro Four Third System standard) |
| 16:9 Aspect Ratio (Still Image) |
[16:9] 4000x2248(L) / 2816x1584(M) / 1920x1080(S) / 1600x904(When attaching 3D lens in Micro Four Third System standard) |
| 1:1 Aspect Ratio (Still Image) |
[1:1] 2992 x 2992 (L) / 2112 x 2112 (M) / 1504 x 1504 (S) / 1440x1440(When attaching 3D lens in Micro Four Third System standard) |
| Motion Picture Recording 4:3 |
MotionJPEG: [4:3] QVGA : 320 x 240, 30fps / VGA : 640 x 480, 30fps |
| Motion Image (HD Movie) |
Motion JPEG: [HD] 1280 x 720, 30fps |
| Motion Image (AVCHD) NTSC |
[Full HD] 1920×1080, 60i (sensor output is 30p) (FSH:17Mbps)
[HD] 1280 x 720, 60p (sensor output is 30p) (SH:17Mbps) |
| Aspect Ratio |
4:3, 3:2, 16:9, 1:1 |
| Protection/Erase |
Protection: Single / Multi, Single in Burst Group / Multi in Burst Group, Cancel
Erase: Single / Multi / All / Except Favorite |

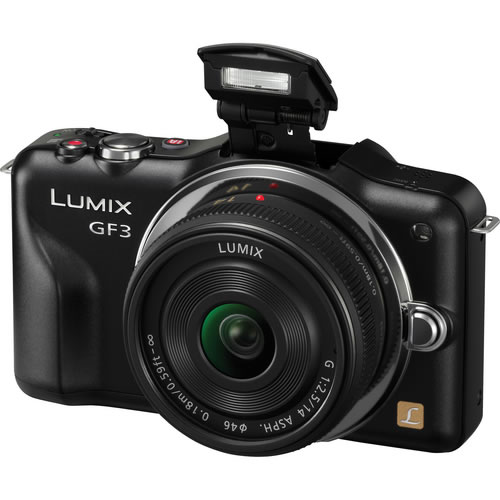

| Built-in Flash Type/Mode |
TTL Built-in-Flash, GN6.3 equivalent (ISO 160•m), Built-in Pop-up
Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off |
| Flash Synchronization |
1st. Curtain Sync |
| Synchronization speed |
Less than 1/160 second |

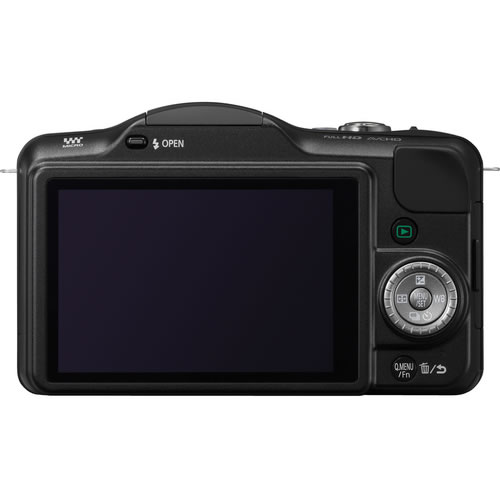

| LCD Monitor |
Type: TFT LCD with Touch panel
Monitor size: 3.0inch / 3:2 Aspect / Wide-viewing angle
Pixels: 460K dots
Field of View: 100%
Monitor Adjust:Brightness (7 levels), Cnotrast & Saturation (7 levels), Red tint (7 levels), Blue tint (7 levels) |
| Live View |
Digital Zoom: 2x, 4x
Extra Tele Conversion:Still image: Max.2x
Motion image: 3.1x (SH/H in AVCHD and HD/WVGA in Motion JPEG), 4.2x (VGA/QVGA in Motion JPEG) |
| Extra Tele Conversion |
Still image: Max.2x (Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.) |
| Live View: Other Functions |
Guide Lines (3 patterns)/Real-time Histogram |
| Playback Mode |
Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (16x Max.), Slideshow (duration & effect is selectable), Playback Mode (Normal/Picture/AVCHD/Motion JPEG/3D Play/Category/Favorite) |
| Additional Playback Mode |
Title Edit, Text Stamp, Video Divide, Resize, Cropping, Aspect Conversion, Rotate, Rotate Display, Favorite, Print set, Protect, Face Recognition Edit |
| OSD Language |
English, Spanish
*Check the website of the Panasonic sales company in your country or region for details on the OSD languages on the products that are available in your market. |
| Recording Media |
SD memory card, SDHC memory card, SDXC memory card |
| Microphone |
Monaural, Wind-cut: Off / Low / Standard / High
Microphone level adjustable: Lv1 / Lv2 / Lv3 / Lv4 |
| Speaker |
Monaural |

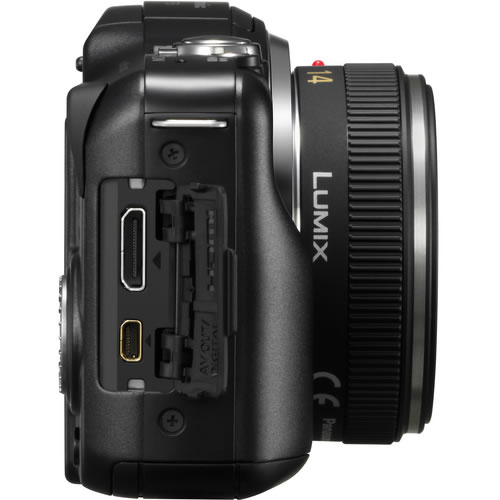

| HDMI |
miniHDMI TypeC
Video: Auto / 1080i / 720p / 480p
Audio: Linear PCM |
| Direct Print |
PictBridge compatible (Print size, Layout, Date setting is selectable) |
| Battery |
Li-ion Battery Pack (7.2V, 940mAh) (Included)
Battery Charger |
| Battery Life 1 |
CIPA standard: Approx. 320 images with H-FS014042
Approx. 340 images with H-H014 |
| Operating Humidity |
10% to 80% |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Included Software |
PHOTOfunSTUDIO 6.2 HD Edition
SILKYPIX® Developer Studio 3.1 SE
Super LoiLoScope (trial version)
USB Driver |
| Continuous recordable time (Motion images) |
AVCHD with picture quality set to [SH]: Approx. 160 min with H-FS014042 / Approx. 170 min with H-H014 |
| Actual recordable time (Motion images) |
AVCHD with picture quality set to [SH]: Approx. 130 min with H-FS014042 / Approx. 150 min with H-H014 |
| Burst Speed |
H: 3.8 frames/sec, M: 2.8 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
| BURST SHOOTING: Number of recordable images |
7 images (when there are RAW files with the particular speed)
Unlimited consecutive shooting (when there are no RAW files)
(depending on memory card size, battery power, picture size, and compression) |
| USB |
USB 2.0 High Speed |
| Audio video output |
Monaural Type, NTSC
*Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market. |
| Creative control |
(Still image & Motion image) Expressive / Retro / High key / Sepia / High Dyamic / Miniature |
| Dimensions (W x H x D) |
107.7 x 67.1 x 32.5 mm / 4.24 x 2.64 x 1.28 inch (excluding protrusions) |
| Weight |
Approx. 264g / 9.31 oz (SD card, Battery, Body)
Approx. 222g / 7.83 oz (Body only)
Approx. 319g / 11.25 oz (SD card, Battery, H-H014 lens included) |
| Footnotes |
1. Shooting conditions: 73.4°F with 50% humidity;LCD On; Using an SD Memory Card; Starting to shoot 30 seconds after turning on the power; Shooting once every 30 seconds with the flash in full operation for every other shot; Changing the zoom setting from telephoto to wide, or wide to telephoto, for each shot; Temporarily turning the power off after each 10 shots (long enough to lower the battery temperature. For DMC-LC1: Shooting once every 30 seconds, flash in operation for every shot, 77°F(25°C) ambient temperature. |
