Elinchrom EL-Skyport WiFi Module

Elinchrom EL-Skyport WiFi Module

With the Elinchrom EL-Skyport WiFi module and your Apple iPhone, iPad, or iPod Touch, you can now control your Elinchrom RX flash lights via remote control!

Key Features

• Works with iPhone, iPad, iPod Touch
• Internal rechargeable Li-Ion battery, one charged battery lasts up to 10 hours
• Li-Ion battery recharges in approx. 3 hours
• Integrated intelligent quick-charge circuit
• Multi-Voltage, Multi-Connector EL-Skyport Universal Charger
• Indication LED’s for charge and operating modes
• Multi use, as EL-Skyport Universal Receiver module, when synchronised directly with a flash unit or as a EL-Skyport RX WiFi module to enable remote control functions for Elinchrom flash “RX” units with iPhone™, iPad™, iPod Touch™
• 3.5 mm SYNC-socket for all common flash units, when used directly as a “Universal Receiver”
• EL-Skyport NORMAL SYNC and SPEED SYNC mode settings
• Settable 8 frequency channels and 4 workgroups
• Interference free operation with 40 Bits security
• Distance range: WiFi up to 50 m outdoors and 20 m indoor.
• Distance range: EL-Skyport up to 100 m outdoors and 40 m indoor.

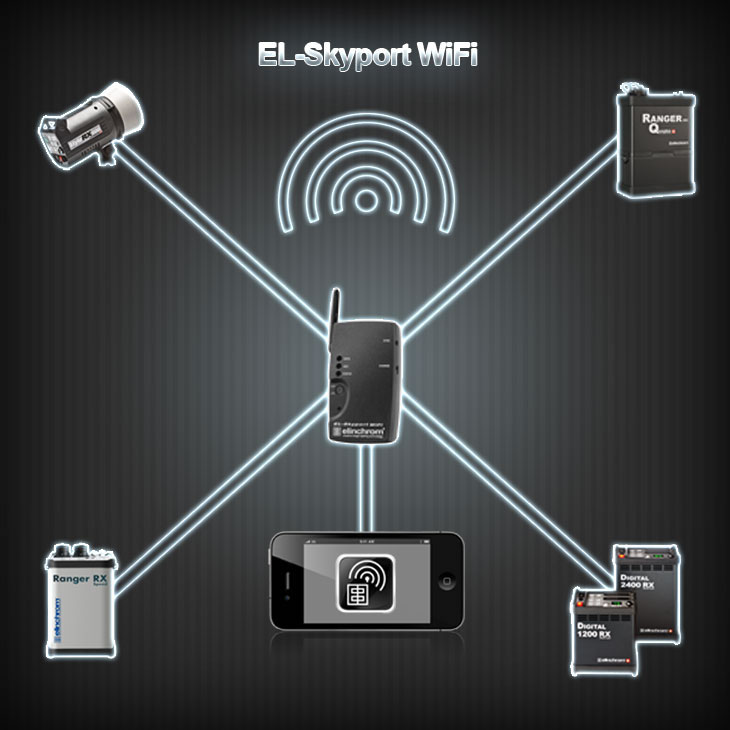

• Detection of all Elinchrom RX units:

   1. Digital RX 1200 / 2400 (with EL-Skyport Transceiver RX module connected to the flash unit).
   2. Style RX 300 / 600 / 1200 (with EL-Skyport Transceiver RX module connected to the flash unit).
   3. Ranger RX / RX SPEED / RX SPEED AS (with EL-Skyport Transceiver RX module connected to the flash unit).
   4. Ranger RX Quadra AS (with built-in EL-Skyport RX receiver).

• EL-Skyport Universal Receiver modules
• Wireless Firmware Update possibility with EL-Skyport 3.0 PC/MAC software
• Automatic Auto-Standby to save battery power, when the module is not used for more than 1 hour
• Camera triggering capability; requires extra camera cables
• Designed, engineered and made in Switzerland

Compatible RX units include:

• Compacts: Style RX 300 / 600 / 1200
• Battery Power Packs: Ranger Quadra RX / Ranger RX / Ranger RX Speed / Ranger RX Speed AS
• Power Packs: Digital RX 1200 / 2400

What do you need to make it work:

• Apple® iPhone 3G™ / 3Gs™ / 4™, iPod Touch™, iPad™ / 2™

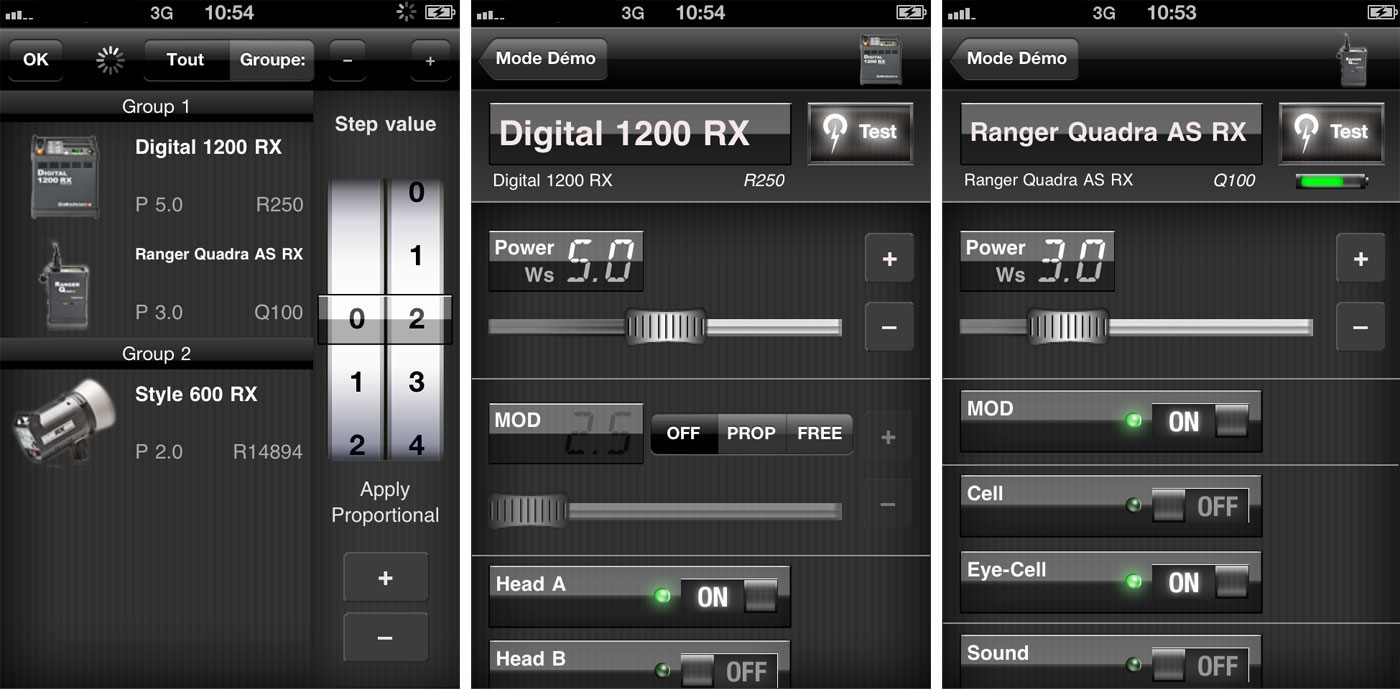

• FREE Elinchrom EL-Skyport Mobile Phone Application from the Apple® App Store
• EL Skyport WIFI Module
• Elinchrom "RX" flash units
• Download and follow the EL Skyport WIFI Manual from our SUPPORT area

What's Included:

• EL-Skyport RX WiFi module
• EL-Skyport charger with USA, EURO, UK adapters
• Sync cable 40 cm, 3.5 mm - 3.5 mm jack
• Sync cable 40 cm, 3.5 mm – EL Standard Socket
• Sync Adapter 6.3 mm – 3.5 mm Jack
• Sync Adapter 3.5 mm – PC (female)
• Limited Warranty
