Panasonic BT-LH1760P 17" Widescreen Screen LCD Monitor
The high-performance BT-LH1760 17" LCD production monitor combines an advanced In-Plane Switching panel with outstanding black level and high-end functionality to provide exceptional performance for critical monitoring and viewing. Because it has a 120-Hz double-speed drive, twice that of current LCD monitors, the BT-LH1760 handles fast motion content exceptionally well and reduces image blur to a level never before seen in a professional LCD display. Designed with a 3D Look Up Table (LUT) and 10-bit image processing, this AC/DC high definition monitor delivers a remarkable picture that will give you the edge in the studio or in the field.
The LH1760 is equipped with a built-in waveform monitor and Vectorscope, as well as five function buttons that assure quick access to value-added features such as pixel-to-pixel display, cross hatch, split screen, audio level meters, time code and closed caption (from video) displays. With a rugged diecast aluminum frame, low power consumption and quiet operation, the LH1760 is ideal for a wide range of HD production applications in the studio or the field.

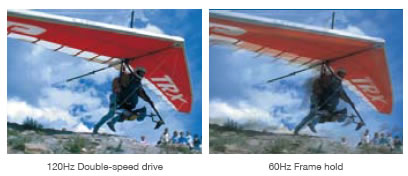

Double-Speed Drive for Blur-Free Moving Images
Moving images without any motion blur are achieved by driving at a speed (120 Hz/100 Hz) that is twice the panel speed and inserting a black frame of a certain level between frames. Unlike frame creation methods, this system minimizes afterimages while displaying images faithful to the input signal. This high-performance, high-speed image display function is ideal for broadcast applications.
Faithful Color Reproduction
The BT-LH1760 features a new image processing engine. By using a three-dimensional LUT (Look Up Table) for each RGB color and applying precise 10-bit image processing, it achieves faithful color reproduction from low to high brightness levels in all video formats.
Versatile Display Performance and Functions
- Advanced image-enhancing circuitry, including excellent motion response and a diagonal line compensation circuit.
- Wide, 176° horizontal and vertical viewing angle.
- Marker and blue-only functions.
- Vectorscope (SDI-In only) and waveform monitoring.
- Cross hatch overlay display.
- Pixel-to-pixel display without resizing HD pixels.
- HV delay display and monochrome mode.
- Coordination of multiple cameras on split screens.
- Time code (SDI-In) and closed caption [Video (NTSC) input Only]display.
- Cine-gamma (F-REC) compensation for Varicam shooting.
- Audio level meter overlay display (with SDI input).
Low Current Consumption, Fanless Drive
The consumption current of the new BT-LH1760 operating on AC power is about 50% lower than our previous model. And when no signal is received for 60 continuous seconds, the Power Save mode is activated to further minimize power consumption. This enables fanless drive, for a level of quiet operation that makes this model ideal for use in editing studios and Mastering rooms.
Design and Specifications for Diverse Applications
- Aluminum diecast frame build quality.
- Two SDI and component and DVI-D. PC input compatible.
- RS-232C/GPI remote control terminals.
- Tally lamp (red, green)
- Headphone jack and built-in stereo speakers.
- AC/DC power.
- Rack mounting (optional BT-MA1710G)
- Wall mounting (optional BT-WMA17G)
- LCD protective panel for outdoor use (optional BT-PRP17G).
Key Features
- 1280 x 768 resolution
- Wide 176° horizontal and vertical viewing angle
- Built-in waveform monitor and vectorscope (from HD-SDI, SDI ) both display all picture lines
- High contrast, improved black level
- Image-enhancing functions including split-screen/freeze frame (live input vs. freeze frame), Marker and Blue-only, H/V delay display, monochrome and Cross Hatch overlay display
- Cine-gamma (Film-Rec) compensation function for use with cameras including the Panasonic AJ-HDC27 VariCam HD Cinema Camera and the new AJ-HPX3700 and AJ-HPX2700 P2 HD VariCam camcorders
- Embedded audio is standard
Inputs/outputs include: DVI-D input and two HD-SDI/SDI Auto switching inputs, component video (Y/Pb/Pr), RGB, PC RGB, external sync, speaker and headphone outputs
- Headphone output can output embedded audio and audio level meter from HD-SDI,SDI
- Energy saving -- consumes 50% less power in AC operation than prior models and includes an automatic power save mode
- Desk stand included, built-in AC/DC power supply
- One year warranty (parts & labor) standard. A two-year extended warranty is available upon end user registration.
