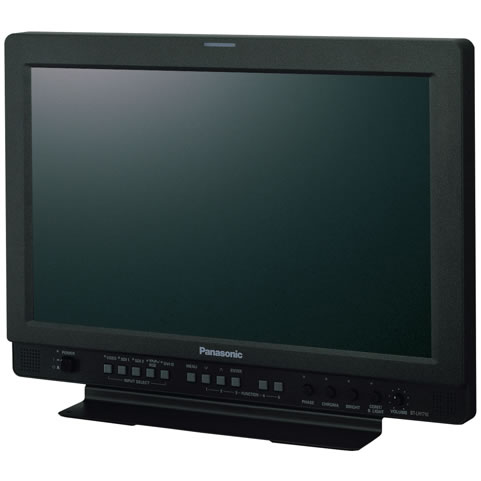

| Detailed Specifications |
| GENERAL |
|
| Power Requirement |
AC 100 V to 240 V 50/60 Hz, 0.6 A to 0.3 A
DC 12 V (11 V to 17 V) 4.0 A |
| Dimensions (W x H x D) |
430 mm x 323.5 mm x 198mm
(16-15/16” x 12-3/4” x 7-13/16”, Including stand)
430 mm x 309 mm x 81.1mm
(16-15/16” x 12-3/16” x 3-1/4”,
Main unit only; not including stand) |
| Weight |
7.1 kg (15.7 lbs) (Including stand),
6.2 kg (13.7 lbs) (not including stand) |
| Operating Temperature |
+5°C to +35°C (41°F to 95°F) |
| Operating Humidity |
20 % to 80 % (non dew) |
| Storage Temperature |
— 20°C to +60°C (—4°F to 140°F) |
| LCD PANEL |
|
| Panel Size |
17.0 inch |
| Aspect Ratio |
15:9 |
Double Speed Drive:
(100Hz/120Hz) |
- |
| Resolution |
1,280 x 768 pixels (WXGA) |
| Display colors |
Approx. 16,770,000 colors |
| Viewing Angle |
178° (both horizontal and vertical) |

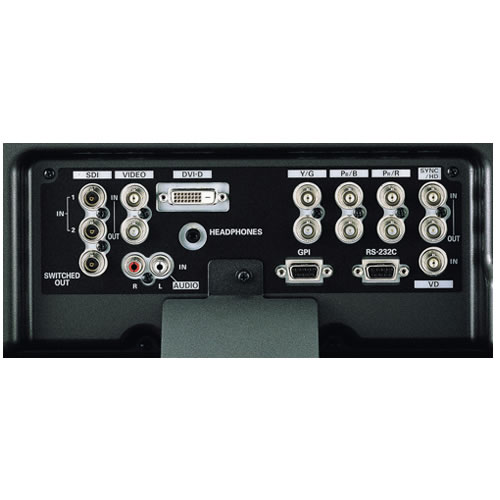

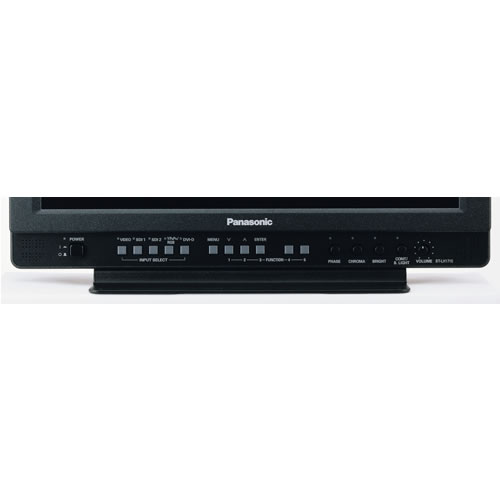

| CONNECTORS |
|
| Video input/output |
Video: BNC x 2, (with through-out connector)
Y/PB/PR. RGB: BNC x 6 (with through-out connector x 3)
SYNC/HD: BNC x 2(with through-out connector x 1)
VD: BNC x 1
SDI: BNC x 3 (switched-out connector x 1)
DVI-D (HDCP): DVI-D x 1
Vertical frequency: 50.0 Hz to 60.0 Hz
Horizontal frequency: 31.5 KHz to 67.5 KHz
Dot clock: 25 MHz to 165 MHz |
| Audio input |
Pinjack x 2 (stereo) |
| Headphone output |
M3 stereo mini jack x 1 |
| Remote |
GPI: D-SUB, 9 pin RS-232C: D-SUB, 9 pin |
| External DC power input |
XLR, 4pin |
| SIGNAL LEVEL |
|
| Video |
SYNC signal level: 0.3 Vp-p to 4.0 Vp-p
HD/VD Signal level: TTL level |
| Audio |
Audio input signal level: 0.5 Vrms
Speaker output: 0.5 W + 0.5 W
Head phone output: 32 Ω, Variable Level |
| SDI Embedded Audio |
HD-SDI : SMPTE299M standard, 48 kHz, 8CH
synchronous/asynchronous
SD-SDI : SMPTE272M standard, 48 kHz, 4CH
synchronous |
| OTHER |
|
| Supplied Accessories |
Power cord, power cord hook, screw |
| Optional Accessories |
Rack mount adaptor, Wall Mount Adaptor,
Protective Panel |
