Roland LVS-800 8-Channel Video Mixer
Powerful Eight Channel Video Mixer
Powerful video production with simple and intuitive video mixing and switching. Eight video channels including two computer inputs. DSK (Downstream Keyer) enables graphic and title overlays. Ideal for any live event and presentation.
Video Input, RGB Input
Connect up to eight video sources including: video cameras, DVD and video players, visual samplers, and direct computer inputs.
Video Output
Multiple outputs with separate A/B Mix and Program Out.
A/B MIX
Eight video sources can be mixed and switched with operational ease. Also supports two PC inputs. Create effective video productions using PinP and transitions.
- PinP (Picture in Picture) can inset a small video window within the main video window.
- Various video transitions are selectable.
DSK (Downstream Keyer: Composition Function)
DSK is a powerful function for compositing titles, lyrics and graphics. Setup is simple - just select background and foreground, then adjust the key value.
- Composite a video with a title using a Luminance key.
- Composite a background behind a live camera using Chroma key.
Panel Presets
Save favorite setups for convenient and instant recall.
Output fade
Press the button, final output (PGM) can be faded to black or white. Output fade color is menu selectable.
V-LINK
Audio faders on RSS audio mixer can follow transitions of input selection and T-bar position for audio follows video function.

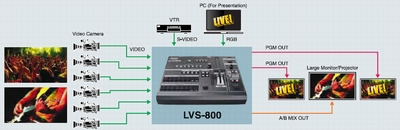

Setup Example : Live Stage Production
The LVS-800 is ideal for live production, performance, IMAG, and worship applications. Graphics and text from a PC can be composited over video sources. Additionally, independent outputs from the A/B mix and Program out busses can be sent to di erence screens creating exciting multi-screen environments.

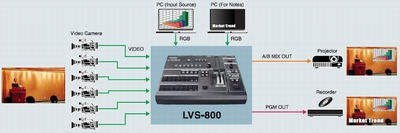

Setup Example : Video Recording
Ideal for presentation and education/learning environments, the LVS-800 enables six video camera inputs along with computer inputs for notes and another for graphics. The recorded material can be aided by having reminder text inserted while the live feed can simply include the graphics.

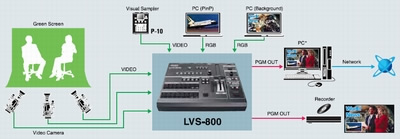

Setup Example : Live Streaming
In this example, the LVS-800 provides a powerful but compact virtual studio environment. The Downstream Keyer enables green screen compositions. Combined with the EDIROL P-10 Visual Sampler and video content from a PC, this setup is ideal for web streaming and live recording applications.
