Datavideo HS-800 Mobile Studio

Datavideo HS-800 Mobile Studio

The Datavideo HS-800 is a light one box solution designed around the SE-800 4 channel DV / analogue audio video switcher. The SE-800 allows four channels of digital or analogue video and up to six channels of audio to be mixed / switched.

The whole system is fully integrated with the DN-300 harddrive recorder, ITC-100 for talkback / intercom, RMC-140 for next source pre-view and tally display, TLM-404 for input monitoring and TLM-702 for next source and main output monitoring.

HS-800 is a one box solution designed to be "live in seconds" at any Conference, Studio, Outside Broadcast or Internet Streaming facility.

Video Connections

• Input connections include; DV25, Component (Y:U:V), S-Video (Y/C) and Composite Video
• Output connection include; Component (Y.U.V) which could be connected to a DVD recorder or projector, DV which could be connected to AV Deck and SDI output for live broadcast

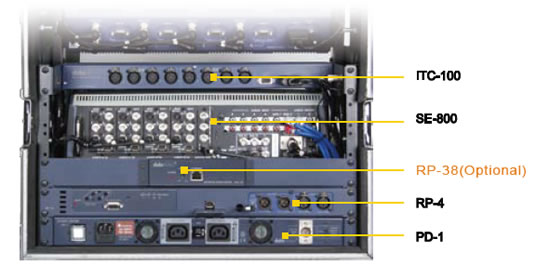

• An extensive rear panel accessory range ensures easy connection to existing equipment on location or in the studio

Key Features

• Built in PD-1 power distribution center.
  Eliminates unsightly wall connections and dangling power supplies. Power all equipment from one central connection
• Fully integrated with cable loom
• Anti shock padding and transit lock protect the equipment during transport
• Highly Mobile, designed to be ready in seconds on any location with easy setup, break down and storage
• Full integration tally and talkback system for up to eight crew members

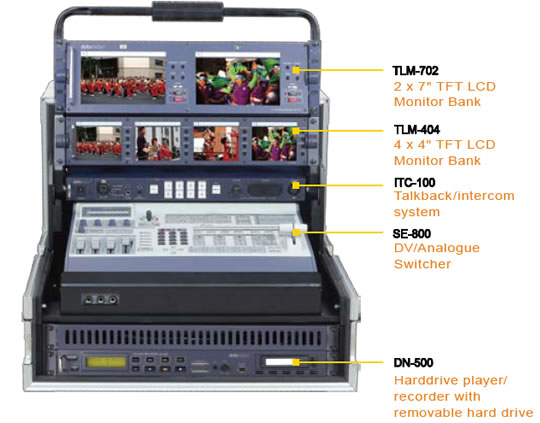

What's Included:

• SE-800
  4 Input DV / Analogue Mixer / Switcher
• DN-500
  Hard Drive Recorder
• TLM-702
  2 x 7" LCD Monitor
• TLM-404
  4 x 4" LCD Monitor
• RMC-140
  Quad / Next Source Preview Box
• ITC-100
  Intercom System
