JVC DTV17G1Z 17" DTV LCD Reference Monitor
The DT-V17G1 is a new generation LCD Vérité G-Series monitor designed for studio, mobile and field applications. It features a new IPS (In-Plane-Switching) LCD Panel that maintains accurate color reproduction at wide viewing angles, and a host of new features including built-in waveform/vectorscope, Dual-Link HDSDI capability, LTC/VITC time code, digital closed captioning and more.
JVC's 10-bit 1080p processing ensures the highest picture quality. The monitor is equipped with traditional rotary knobs that control picture and sound, and a wide range of digital and analog inputs and outputs.
3G/Dual Link Ready
1080p uncompressed digital video data transmitted at a maximum rate of 60 frames per second at 3 GB/second can be input with one HD SDI Input. Dual Link is available through two HD SDI inputs.
IPS (In-Plane-Switching) LCD Panel
IPS panels provide wide viewing angles and excellent color reproduction. The crystal molecules move parallel to the panel plane instead of perpendicular to it reducing the amount of light scattering in the matrix. This results in minimal color change regardless of viewing position.
Digital and Analog Closed Captioning
EIA-608/708 DTV Closed Captioning is supported via HD-SDI inputs. Analog closed captions can also be monitored when signals are input via composite video connection.
Gamma Mode Preset
JVC offers various pre-set gamma modes (2.2, 2.35, 2.45, 2.6) to meet your application needs.
Vectorscope
High-quality vector scope allows simple checking of hue and saturation of digital video signals. Hue and saturation of color signal are detected and displayed as a vector with resolution of 254 x 254. Compatible with video,component, SDI (SD/HD), DVI (except PC signals) input signals, and offers a double-size display** option and selection of display position or translucence functions.
*Two display sizes cannot be displayed at the same time.
**The position is fixed for double-size display.
Waveform Monitor
Detects video, component (excepting RGB), SDI, DVI (except PC) brightness signals and displays them with resolution of 360 x 254 for SD signals or resolution of 480 x 254 for HD signals. Besides, it is possible to perform checks at the colour signal level of each colour per screen for R/G/B, Y/PB/PR, Y/CB/CR. Over-level function enables peak brightness to be checked at a glance. The display allows a double-size display** option, and selection of display position or translucence functions.
Note: Waveform and Vectorscope cannot be displayed simultaneously.

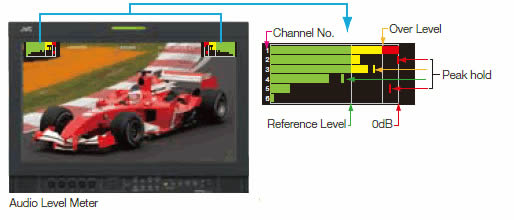

Advanced Audio Level Meter
The channel number is displayed in each level bar. And, you can check the status of the audio signal at a glance for Reference Level/Over Level 0 dB, three set levels, and peak hold function.
Key Features
- 1366 x 768 resolution
- Wide viewing angle 178°/178° with IPS panel
- 3G/Dual Link support
- SMPTE 424M/425M/372M
- Low latency (less than one frame)
- AC/DC operation
- Waveform monitoring with over-level function
- Vector scope with selectable size and position
- Advanced audio level meter (up to 12 channels)
- Exclusive JVC 10-bit image processing technology
- LTC & VITC support
- Selectable gamma preset mode
- Wide selection of video production functions including various markers
- Digital closed captioning
- Easy-to-operate front panel controls
- Front LED dimmer function
- Source ID input by ASCII code
(Red/Green/White color linked with tally)
- Information position selectable
- 1:1 mode
- Gold-plated HD/SD SDI terminals with embedded audio
- DVI-D with HDCP terminal
- RS-232C, RS-485 remote
- Audio speaker built-in
- Rugged, adjustable stand provided
