Product Highlights
  • Lavalier Microphone
  • Omnidirectional Pickup Pattern
  • XLR, 1/4" Connection
  • Wireless
  • Up to 24 MHz Bandwidth
Web Availability: Special Order

Overview

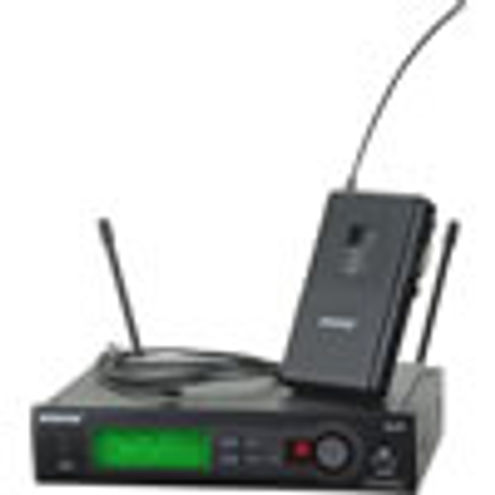

The Shure SLX Series wireless microphone system provides the performance and reliability needed for a number of uses including venues and sound reinforcement. The UHF system is available in up to 8 different bands, over a 24MHz spectrum. This system includes the SLX4 receiver, SLX1 bodypack transmitter and WL93 lavalier microphone.

The SLX4 Receiver is rack or desktop mountable and features a diversity antenna design. The diversity design allows dual antennas to compete for the strongest possible reception. XLR microphone-level and 1/4" phone-line-level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level, and more.

The SLX1 UHF Transmitter is powered for up to 8 hours on 2 AA size batteries and features a 4-pin microphone input jack, which accommodates any Shure microphone featuring a TA4 connection. The SLX1 features an infrared sensor, which allows the transmitter to remotely sync frequency settings with the receiver. An adjustable mic / 0dB / -10dB switch allows input from guitars, instruments and microphones.

The WL93 Lavalier Microphone features an omnidirectional pick up pattern, and its 50-17,000Hz frequency response makes it suitable for a wide variety of applications.

Key Features

  • Automatic Frequency Selection
  • Automatic Transmitter Setup
  • 960 Selectable frequencies across 24MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED
  • 5-segment audio meter
  • Multi-function, backlit LCD
  • Low battery indicator
  • Frequency and power lockout
  • Rugged metal chassis
  • Volume control on rear of unit
  • 1/2 rack design
  • Furnished rack hardware
  • Non-slip bumpers for use out of rack
  • XLR and 1/4" outputs
  • Optional logic functionality for software echo cancellation and remote battery life monitoring (SLX4L only)

What's Included

  • SLX4 Diversity Receiver
  • SLX1 Bodypack Transmitter
  • WL93 Lavalier Microphone
  • Zipper Bag
  • Short Rack Mount Bar
  • Long Rack Mount Bar
  • Link Bar
  • Antenna Extension Cables
  • Limited Warranty

Reviews

Product Specifications



Detailed Specifications
SYSTEM
Type of System     Rack/Table Top Mountable UHF Diversity Wireless Lavalier System
Approx. Working Range     300' (100m)
Overall Frequency Response 45Hz - 15kHz, +/-2dB
Signal-to-Noise Ratio     > 100dB A-weighted
# Of Channels     960 Selectable Frequencies
# Of Simultaneous Systems 12 (20 in regions where additional frequency bands are available)
RECEIVER
Type of Receiver     SLX4 Rack/Table Top Mountable UHF Diversity Receiver
Type of Outputs     XLR 3-pin male - 200 Ω
1/4" Phone - 1 kΩ
Headphone Monitoring     No
Power Requirements     12 - 18VDC @ 150mA, supplied by external power supply
Display     LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status
Mounting Options     Rack / Table Top Mount 1/2 Rack Space
Antenna Type     Dual 1/4 wave antennas
Dimensions (HxWxD)     1.65 x 7.76 x 5.28" (42 x 197 x 134mm)
Weight     1lb 13oz (816g)
TRANSMITTER
Type of Transmitter     SLX1 UHF Bodypack
Type of Input Connector     TA4 Input
Type of Microphone     WL93 Lavalier Included with this Set
Polar Pattern     Omnidirectional
Interchangeable Mic Heads Yes, Any of the Shure 'WL' Lavaliers, Headsets, or Instrument Cables (Optional) Can Be Used with this Transmitter
Battery Type/Approx. Life     (2) AA size alkaline or rechargeable - approx 8 hours
Mute Switch     Integrated On-Off / Mute Switch
Level Control     0dB & 10dB Gain Adjust switch
Antenna Type     Flexible 1/4 Wave Whip Antenna
Display     LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status
Dimensions (HxWxD)     4.25 x 2.50 x 0.75" (108 x 64 x 19mm)
Weight     3oz (81g)
