Lease this for: $105.67 Learn More

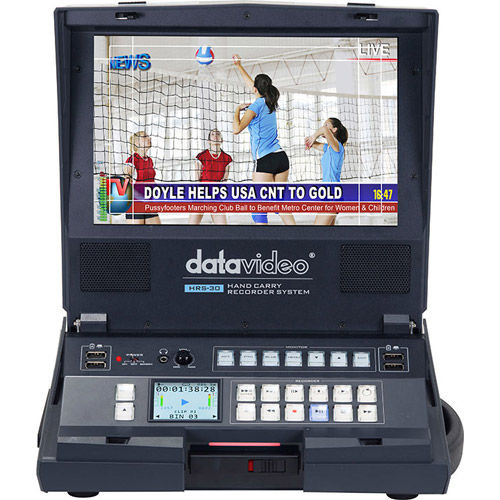

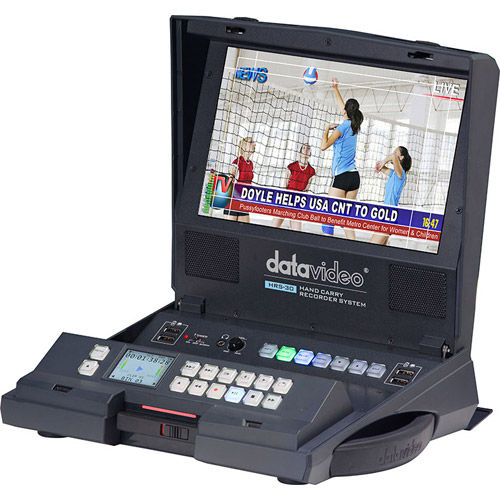

The Datavideo HRS-30 is an all-in-one portable recorder with a built in 10.1″ monitor that is integrated into a rugged hand-carry case. It can be used as a field recorder, playback system and confidence monitor.
The HRS-30 inputs include HD/SD-SDI and supports 1080i, 720p, 576i, 480i video formats. It records in MPEG-II Long-GOP or intra-frame (i-frame) with 4:2:2 color sampling. The recorded MXF/OP1A or MOV file format is compatible with a wide range of NLE and play out systems. Recorded files are stored to a removable caddy, which is compatible with 2.5″ solid state drives. The built in broadcast monitor is an ideal solution for reviewing (mark in) or playing back video during a production. Other features include time code input/loop thru, skip forward or back button (8 seconds), slow motion playback, and a skip clip button.
The portability and ruggedness of the HRS-30 makes it ideal for any field production application. The HRS-30 V-mount and Anton Bauer support will allow remote recording without A/C power. RS-232 control (via Ethernet) provides additional options for distance control of your recording. Applications for HRS-30 include sporting events, school productions, concerts or any event outside a traditional studio.
HRS-30 allows previewing of recorded footage directly on the device.
The HRS-30 supports 1080p(23.97/24) and 1080i(50i/59.94i/60i) resolution.

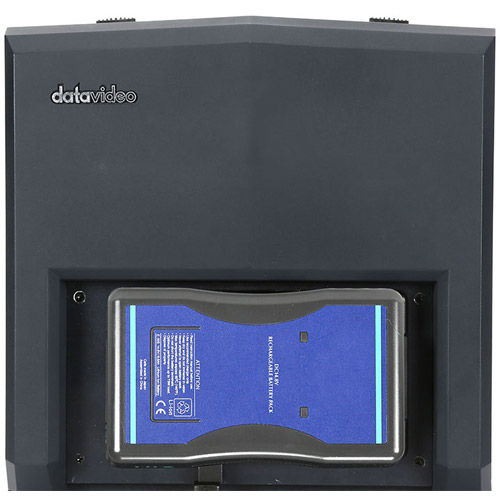

The HRS-30 can operate using v-mount batteries and Anton Bauer batteries.
- Datavideo HRS-30 Portable Hand Carried SD/HD-SDI Recorder
- Removable Drive Rack
- AC Adapter
|Panel||10.1" TFT LCD|
|Active Area (WxH)||8.5 x 5.3" / 216.96 x 135.60 mm|
|Resolution||1280 x 800|
|Pixel Dot Pitch||0.0565 x 0.1695 mm (W x H)|
|Video Resolution Supported||1080p: 23.98/24
|Video Recording||MPEG 2 Long GOP HD
MPEG2 I-Frame Only HD
MPEG 2 Long GOP SD
MPEG 2 I-Frame Only SD
|Audio Recording Format||Uncompressed PCM|
|External Sync||Black Burst
SDI: 1 x BNC
SDI: 2 x BNC (one loop through)
HDMI: 1 x type A
Headphone: 1 x 3.5 mm stereo jack
Speakers: 2 x 3 W
SDI: 8 channels
HDMI: 8 channels
Input: 1 x BNC
Output: 1 x BNC
Input: 1 x BNC
Output: 1 x BNC
1 x mini-USB
1 x RJ-45
1 x 12 VDC coaxial locking plug (2.1 x 5.5 13.8 mm)
1 x V-mount
4 x USB type A
12 VDC: Via coaxial connector
14.4 VDC: Via V-mount
|Package Weight||12.25 lb|
|Box Dimensions (LxWxH)||14.6 x 14.0 x 9.4"|
Questions & Answers
Datavideo HRS-30 Hand carried HD/SD-SDI Recorder SSD required but not included
