• Webcode: 403400 • Mfr: 1263C006
  • FREE SHIPPING Available
Product Highlights
  • 24.2MP CMOS Sensor
  • Full-Frame Format
  • 7 FPS Continuous Shooting
  • ISO 100–12800 (Expandable to 16000/25600)
  • 4K Full HD 1920 x 1080 at 30/24p
  • LCD Touchscreen
  • Includes EF-S18-135mm f/3.5-5.6 IS USM Lens
Option:
80D Body
80D Body & EF-S18-135mm
80D Body & EF-S18-55mm lens
Web Availability: In Stock
Vistek Locations
  • Toronto In Stock
  • Ottawa In Stock
  • Mississauga In Stock
  • Calgary In Stock
  • Edmonton In Stock
Please call and verify availability at the store as stock changes daily.

Lease this for: $64.56 Learn More

Overview

Canon EOS 80D

Bundle with 80D Body & EF-S18-135mm f/3.5-5.6 IS USM Lens

Brand-spanking new from Canon, the EOS 80D features a newly developed 24.2 Megapixel (APS-C) CMOS sensor that captures high-resolution images. And that’s just the tip of the iceberg.

Whether raising your game to SLR level photography or having fun with a feature-rich, versatile SLR you can use pretty much anywhere, the EOS 80D camera is your answer. It features an impressive 45-point all cross-type AF system* that provides high-speed, highly precise AF in virtually any kind of light. To help ensure photographers don't miss their shot, an Intelligent Viewfinder with approximately 100% coverage provides a clear view and comprehensive image data. Improvements like a powerful 24.2 Megapixel (APS-C) CMOS sensor and Dual Pixel CMOS AF for Live View shooting enhance the EOS 80D's performance across the board. Complementing the EOS 80D's advanced operation are built-in wireless connectivity and Full HD 60p movies that can be saved as MP4s for easy sharing. Merging power, precision and operability, the EOS 80D is a dynamic SLR camera for anyone ready to realize their creative vision.

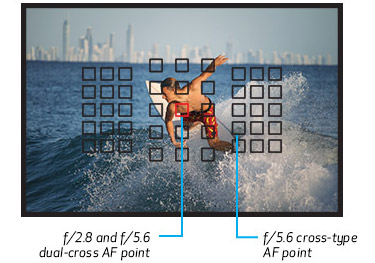

45-point all cross-type AF system

For next-level AF operation, the EOS 80D camera has a wide-area, 45-point, all cross-type AF system*. Excellent in dim light, it has improved low luminance performance to EV -3 and is compatible with most EF lenses (lenses with maximum apertures of f/8 or higher, and some lenses with extenders attached may operate at a maximum of 27 points). It also features 4 types of AF area selection modes useful for a number of different AF situations. These include user-selectable Single-point AF, Zone AF, where users can select from one of 9 predefined AF zones; Large Zone AF, where one of three zones can be selected; and 45-point AF auto selection, where the camera detects the AF point automatically.

Intelligent Viewfinder

Providing a bright and comprehensive view, the EOS 80D camera’s Intelligent Viewfinder helps bring the thrill of SLR photography with each use. Approximately 100% coverage means there’s virtually no guesswork when it comes to composition, and with all settings available at a glance, the Intelligent Viewfinder helps photographers keep their eye on their subject so the image can be captured at the right instant. The Intelligent Viewfinder displays AF points and AF mode, has a grid display, a horizontal electronic level, plus numerous other points of information, all of which can be hidden for manual focus, or if the photographer simply wants to observe his/her subject without all the image parameters displayed.

24.2 Megapixel (APS-C) CMOS sensor

The EOS 80D camera features a newly developed 24.2 Megapixel (APS-C) CMOS sensor that not only captures high-resolution images, but also features refined individual pixels that enable high ISO speeds of 16000 for still photographs (expandable to 25600) and 12800 for movies (expandable to 16000, 25600). Equipped with high resolution and high sensitivity, the EOS 80D’s sensor works with the camera’s DIGIC 6 Image Processor to enable Dual Pixel CMOS AF during Live View operation, and while capturing both Full HD 60 fps movies and Full HD HDR movies.

Improved Dual Pixel CMOS AF

The EOS 80D camera features Canon's improved Dual Pixel CMOS AF for fast and smooth AF during Live View and movie shooting. Boasting enhanced speed, smoother tracking and compatibility with all EF and EF-S lenses, the EOS 80D’s Dual Pixel CMOS AF system excels, providing stellar AF and tracking even in difficult shooting conditions. This Canon technology is made possible by placing two photodiodes per pixel, instead of one, and enabling each pixel to perform phase-difference detection autofocus. This means fast, accurate AF and virtually no loss in image quality with extended coverage across approximately 80% of the image plane.

The benefits of Dual Pixel CMOS AF are clearly evident in video shooting, where bringing scenes and subjects into focus is a critical element of the final composition. On the EOS 80D, Dual Pixel CMOS AF helps ensure focus is achieved naturally and precisely, even when switching between subjects. Combined with the predictive power of Movie Servo AF, subjects in motion are smoothly and consistently tracked – once the EOS 80D locks focus, it virtually doesn't let go.

More precise autofocus

7560-pixel RGB+IR metering sensor

Among the advanced electronics onboard the EOS 80D camera, a fine-tuned RGB+IR metering sensor not only helps ensure accurate exposure, but also uses Color Tracking to detect skin color and help provide precise AF. This is particularly useful when establishing focus for portraits in situations where other AF systems may falter. When a skin tone is detected, AI Servo AF starts off on skin-colored points, then tracks the subject based of the original AF point’s color information, maintaining focus on the person even when they’re in motion.

Capture all the action.

High-speed continuous shooting up to 7.0 fps

Capable of shooting up to 7.0 fps during continuous shooting, the EOS 80D is an amazing camera for quick action. Canon's remarkable shutter, combined with speedy, sophisticated electronics, helps ensure virtually instant response and performance. A rapidly occurring scene can be captured moment by moment, second by second, so that even brief opportunities are captured in crisp clarity.

Express your creativity

  • HDR Movie

    The EOS 80D camera introduces a number of new HDR (High Dynamic Range) modes that offer a great range of highlight and shadow detail for naturally rendered images, especially in contrasting lighting. In HDR Movie mode, the EOS 80D captures two HD movie frames at different exposures, one standard and one underexposed, in short succession at up to 60 fps, then combines them together for playback at up to 30 fps. HDR effects for still photography include Natural, Art standard, Art bold, Art vivid and Art embossed.
  • Time-Lapse Movie

    The EOS 80D camera has a Time-Lapse Movie feature that takes still photos at set intervals and joins them to create a silent movie. Ideal for showing the moving clouds across the sky, growth of a plant, changes in scenery, the flow of people walking and more, the EOS 80D’s Time-Lapse Movie function creates professional-quality movies in-camera without the need for a computer, saving precious time when out in the field.
  • Creative Filter Options

    To add to the fun and creative possibilities available with the EOS 80D, the camera has seven different Creative Filters for Live View shooting that can dramatically alter the mood and visual effect of any particular scene. Creative Filters include Grainy Black and White, Soft Focus, Fisheye Effect, Toy Camera Effect, Miniature Effect, Art Bold Effect and Water Painting Effect. The EOS 80D also adds five new Creative Filters for movie shooting, including Memory, Dream, Old Movies, Dramatic B&W and Miniature Effect movie. Each effect can be applied in three varying levels and easily previewed on the LCD panel in Live View. Since the filters can be applied to the image after shooting, it's easy to try several effects on the same shot during post-process.

Full HD 60p

The EOS 80D camera makes it easy to capture and share high-definition, high-quality movies quickly, easily and with virtually no compromise. In bright daylight or at dusk, whatever the speed of the action, the EOS 80D can help make sharp, beautifully exposed movies that are as easy to share as they are to capture. The camera’s Dual Pixel CMOS AF system focuses fast, and Movie Servo AF tracking helps maintain focus even when the action gets going. The Vari-angle Touch Screen monitor also makes it easy to compose from most any vantage point, while Creative Filters and a clever Video Snapshot feature encourage experimentation. The ability to record movies as both MOV and MP4 files makes sharing fast and easy. Manual volume recording control, digital zooming and a headphone terminal add to the EOS 80D’s impressive collection of high-end moviemaking features.

Built-in Wi-Fi

Wirelessly transfer images and movies to compatible devices or share on social networking sites.

The camera's exposure settings, such as aperture, shutter speed, ISO, focus and shutter can be operated wirelessly, using a compatible iOS® or Android™ smartphone* with the free Canon Camera Connect app. You can shoot remotely from a distance, even in Live View mode, for those difficult-to-capture shots; you can also review images on the EOS 80D without having to take it out of the bag, and easily transfer and save images directly from the camera to a smartphone. Full Digital Living Network Alliance compatibility means easy sharing between the EOS 80D and other DLNA products, like HDTVs, smartphones and more. Still images can even be transferred between two wireless-enabled Canon cameras over a Local Area Network (LAN). Images and video can be uploaded instantly to CANON iMAGE GATEWAY# for easy sharing on social networking sites, and photos can even be printed on a wireless PictBridge-certified printer without the need for a PC. Remarkably, the EOS 80D has all of these wireless features without the need for any additional accessories; they're built right in!

Built-in Near Field Communication

Built-in NFC helps provide a virtually seamless connection to numerous compatible Android™ smartphones*, and the Canon Connect Station CS100. To transfer your photos and videos, simply tap the EOS 80D camera to the Connect Station CS100 and the transfer is done! With the Connect Station CS100, you can store, view and organize all of your photos and videos from just one device.

Vari-angle Touch Screen 3.0-inch Clear View LCD II monitor

The EOS 80D camera comes with a Vari-angle Touch Screen 3.0-inch Clear View LCD monitor II for shooting videos and stills at a variety of angles, high or low, with up to 270° of vertical rotation and up to 175° of horizontal rotation. Whether shooting with a tripod or handheld, the EOS 80D’s LCD excels in moviemaking at virtually any number of angles and positions, making it easy to create great movies of athletes on the field, kids in the park, documentary interviews and more. The screen is touch-sensitive, delivering intuitive touch panel operation. Two-finger touch gestures can be used for zooming or changing images. Menu and quick control settings can be accessed, and focus point and shutter release can be activated with the touch of a fingertip using Touch AF. Displaying fine detail (at approximately 1.04 million dots), this screen can be ideal for composing and reviewing images. The LCD's surface is also treated with a smudge-resistant coating to help minimize fingerprints and maintain a bright, clear image display, even in bright light.

Anti-flicker

The EOS 80D camera features a flicker detection system that not only alerts the user in the viewfinder, but with the camera's Anti-flicker Shooting function can compensate for flickering light sources, taking shots only at peak light volume. This feature is useful for minimizing disparities in color and exposure, especially during continuous shooting in sub-optimal lighting situations.

ISO 100-16000 for stills & ISO 100–12800 for movies

Thanks to its DIGIC 6 Image Processor and its remarkable noise-reduction technology, the EOS 80D camera features a wide ISO range of ISO 100–16000 (expandable to 25600) for stills and ISO 100–12800 (expandable to 16000/25600) for movies, performing brilliantly in low-light shooting even without a flash. Used with one of Canon's EF or EF-S lenses with Optical Image Stabilizer, the EOS 80D can record beautiful images even when light sources are scarce.

Shutter durability tested up to 100,000 cycles.

The EOS 80D camera features a powerful mechanical shutter system with electronically controlled speeds from 1/8000 to 30 sec. at up to 7 fps. An improved mirror drive enables high-speed, low-vibration performance, and even has a silent mode for up to 3 fps, continuous and quiet use. The shutter is rated to 100,000 exposures, resulting in predictable, reliable performance time after time and frame after frame.

DIGIC 6 Image Processor

The EOS 80D camera is equipped with Canon’s DIGIC 6 Image Processor, which helps provide excellent image quality and processing speed in both photos and video. High light sensitivity allows for high resolution with less noise when shooting in dark conditions at ISO 12800. The DIGIC 6 Image Processor also powers the camera's performance capabilities, providing full resolution high-speed continuous still shooting and distortion correction in-camera. Video recording in MP4 format provides seamless compatibility with mobile devices and tablets. Highly compressed MP4 video not only preserves space on your memory card but also improves playback on mobile devices. Recording HD videos using HDR movie feature is possible, expanding creative possibilities.

Canon EF-S 18-135mm f/3.5-5.6 IS Nano USM Lens

An all-around lens ideal for creative photography and movies, Canon's EF-S 18-135mm f/3.5-5.6 IS USM adds cutting-edge technology to an extremely flexible zoom range. Delivering remarkable performance for everyday capture, it's equipped with Canon's new NANO USM technology, featuring high-speed and near-silent AF. What's more, it's also compatible with Canon's new Power Zoom Adapter PZ-E1 for more natural zooming during movie capture. For landscapes, portraits, sports videos and everything in between, the EF-S 18-135mm f/3.5-5.6 IS USM provides great versatility with its magnificent optics, comprehensive zoom range and premium design. It's an impressive complement to the EOS 80D camera, or any EOS camera with an APS-C size sensor.

Equipped with new NANO USM technology

Combining Ring USM and STM for smooth and near-silent video and high-speed AF for still capture.

Fast and incredibly quiet, the EF-S 18–135mm f/3.5–5.6 IS USM’s new NANO USM AF system not only delivers high speed AF, but also makes quiet, fast and smooth AF transitions that can be ideal for movie recording. Combining ring USM and STM (lead-screw type) features, the diminutive chip-shaped ultrasonic motor is engineered to help deliver high-speed, smooth, precise and near-silent operation, plus full time manual focus (when using one-shot AF).

Faster autofocus

Improved AF speeds up to 4.3x and 2.5x

Thanks to its new NANO USM motor, the Canon EF-S 18–135mm f/3.5–5.6 IS USM focuses incredibly fast – a clear advantage for action photography and for working on the fly. Compared to the previous model*, it focuses approximately 4.3 times* faster at the telephoto end, and 2.5 times* faster at the wide end when using the viewfinder, for a noticeable speed advantage that can help ensure a stellar photo.

Capture sharp images

Image Stabilizer effect at up to 4** stops of shake correction

Thanks to a newly enhanced Image Stabilizer system that features a more rigid mechanical structure and the incorporation of faster algorithms, the EF-S 18–135mm f/3.5–5.6 IS USM’s Image Stabilizer effect has been improved from 3.5 stops to 4* stops for better performance in even more challenging situations. Whether shooting in low light or any time a slow shutter speed is necessary, the EF-S 18–135mm f/3.5–5.6 IS USM’s Image Stabilizer helps deliver stable, sharp results.

High performance with a sophisticated look and feel.

Satin finish, sleek silhouette, black ring and metallic mount

The EF-S 18–135mm f/3.5–5.6 IS USM features a new exterior design that gives it a feel of power and refinement. An elegant shape, comfortable zooming and focus rings as well as easy-to-read markings complement its new finish. A metallic mount and a new black ring that separates the zoom and focus rings add to the lens’s feeling of quality.

Dynamic IS

Reduce camera shake when shooting video

When recording video, the EF-S 18–135mm f/3.5–5.6 IS USM’s Dynamic IS system helps compensate for camera shake such as when handholding the camera or making movies while walking, especially when using wide focal lengths. By compensating for the camera’s motion, it helps deliver sharp, accurately focused images with ease.

One UD lens and one PMo aspheric lens

High-resolution and high-contrast images with reduced chromatic aberration throughout the zoom range.

The EF-S 18–135mm f/3.5–5.6 IS USM features a number of advanced Canon optics to provide a sharp, high-resolution picture throughout its zoom range. Featuring a UD lens and a high-precision aspherical lens element, its optical formula helps reduce chromatic aberrations, flare and ghosting, reliably delivering excellent results.

Electrical zooming that helps deliver more natural zooming while shooting video.

The EF-S 18–135mm f/3.5–5.6 IS USM is compatible with Canon’s new Power Zoom Adapter PZ-E1 for electronically controlled zooming. This convenient accessory works with the lens to enhance an EOS camera’s video capabilities by providing a smooth and near-silent powered zooming function that’s an ideal complement to the lens’s speedy AF. The PZ-E1 has adjustable zoom speeds, an integrated locking mechanism, offers remote controlled zooming and is designed to integrate seamlessly with the EF-S 18–135mm f/3.5–5.6 IS USM for streamlined operability.

What's Included

EOS 80D Body
EF-S18-135mm f/3.5-5.6 IS USM lens
Front lens cap
Rear lens cap
Battery Pack LP-E6N
Battery Charger LC-E6
Eyecup Eb
Wide Strap

Reviews

Product Specifications

Canon 80D

Type


Type Digital, AF/AE single-lens reflex camera with built-in flash
Recording Media

SD, SDHC and SDXC Memory Cards

SD speed class compatibility.
UHS speed class compatibility.
High-speed writing is supported when a UHS-I-compatible SD card is used.
Compatible with Eye-Fi Cards.
Multimedia cards (MMC) cannot be used (card error will be displayed).

Image Format Approx. 22.5mm x 15.0mm (APS-C)
Compatible Lenses Canon EF Lenses (including EF-S lenses, excluding EF-M lenses)
Lens Mount Canon EF Mount

Image Sensor


Type CMOS Sensor
Pixels Approx. 24.2 megapixels
Pixel Unit Approx. 3.72 µm square
Total Pixels Approx. 25.8 megapixels
Aspect Ratio 3:2 (Horizontal: Vertical)
Colour Filter System RGB primary colour filters
Low Pass Filter Fixed position in front of the image sensor
Dust Deletion Feature

1 - Self Cleaning Sensor Unit
Removes dust adhering to the low-pass filter.
Self-cleaning can be done automatically when the power is turned on or off. Manual cleaning also possible.

2 - Dust Delete Data Acquisition & Appending
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.

3 - Manual Cleaning

Recording System


Recording Format Design Rule for Camera File System 2.0 and EXIF 2.3
Image Format

Still Image
JPEG, RAW (14 bit Canon Original), M-RAW, S-RAW, RAW+JPEG, M-RAW+JPEG, S-RAW+JPEG

Video
MOV (4K Movie: Motion JPEG, Full HD Movie: MPEG4 AVC/H.264*; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264*; Audio: AAC)

* Variable (averaged) bit rate

File Size

3:2 Aspect Ratio
Large: 24.0 Megapixels (6000 x 4000)
Medium: Approx. 10.6 Megapixels (3984 x 2656)
Small 1: Approx. 5.9 Megapixels (2976 x 1984)
Small 2: Approx. 2.5 Megapixels (1920 x 1280)
Small 3: Approx. 0.35 Megapixels (720 x 480)
RAW: 24.0 Megapixels (6000 x 4000)
mRAW: 13.5 Megapixels (4500 x 3000)
sRAW: 6.0 Megapixels (3000 x 2000)

4:3 Aspect Ratio
Large: Approx. 21.3 Megapixels (5328 x 4000)
Medium: 9.5 Megapixels (3552 x 2664)
Small 1: Approx. 5.3 Megapixels (2656 x 1992)
Small 2: Approx. 2.2 Megapixels (1696 x 1280)
Small 3: Approx. 0.31 Megapixels (640 x 480)
RAW: 24.0 Megapixels (6000 x 4000)
mRAW: 13.5 Megapixels (4500 x 3000)
sRAW: 6.0 Megapixels (3000 x 2000)

16:9 Aspect Ratio
Large: Approx. 20.2 Megapixels (6000 x 3368)
Medium: Approx. 8.9 Megapixels (3984 x 2240)
Small 1: Approx. 5.0 Megapixels (2976 x 1680)
Small 2: Approx. 2.1 Megapixels (1920 x 1080)
Small 3: Approx. 0.29 Megapixels (720 x 408)
RAW: 24.0 Megapixels (6000 x 4000)
mRAW: 13.5 Megapixels (4500 x 3000)
sRAW: 6.0 Megapixels (3000 x 2000)

1:1 Aspect Ratio
Large: Approx. 16.0 Megapixels (4000 x 4000)
Medium: Approx. 7.1 Megapixels (2656 x 2656)
Small 1: Approx. 3.9 Megapixels (1984 x 1984)
Small 2: Approx. 1.6 Megapixels (1280 x 1280)
Small 3: Approx. 0.23 Megapixels (480 x 480)
RAW: 24.0 Megapixels (6000 x 4000)
mRAW: 13.5 Megapixels (4500 x 3000)
sRAW: 6.0 Megapixels (3000 x 2000)

Values of Pixels recorded are rounded off to the nearest 10,000th or 1,000th.
JPEG images are generated in the aspect ratio that was set.
RAW images are generated in [3:2] and the set aspect ratio is appended.

File Numbering


Types of file numbers

1 - Continuous Numbering
The numbering of captured images continues even after you replace the card.

2 - Auto Reset
When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.

3 - Manual Reset
Resets the file number to 0001, and creates a new folder automatically.

Colour Space sRGB, Adobe RGB
Picture Style Auto, Standard, Portrait, Landscape, Fine  Detail, Neutral, Faithful, Monochrome,
User Defined 1-3
In Basic Zone modes, Auto is set automatically.
In Creative Zone modes, you can select or set the Picture Style.
[Auto] is the default setting for [User Def. 1-3].

White Balance


Settings * Effective in twilight and sunset as well.
Auto White Balance Option between ambience priority and white priority settings
Colour Temperature Compensation Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
* Corrected in reference to the current WB mode's color temperature.
Color Temperature Information Transmission Provided

Viewfinder


Type Eye-level SLR (with fixed pentaprism)
Magnification Approx. 0.95x (with 50mm lens at infinity, -1m-1) / 28.3° angle of view
Eye Point Approx. 22mm (at -1m-1 from eyepiece lens center)
Dioptric Adjustment Correction -3.0 to +1.0 m-1 (diopter)
Focusing Screen Fixed
Viewfinder Information

Information display with translucent liquid crystal

AF area selection mode
AF point information
Area AF frame
Spot metering circle
Electronic level
Grid display
Aspect line (4:3, 16:9, 1:1)
Flicker detection
Warning symbol

* You can set whether to display or hide [Electronic level], [Grid display] and [Flicker detection].

Depth Of Field Preview Provided

Autofocus


Type TTL secondary image-forming phase-difference detection system with AF-dedicated CMOS sensor
AF Points Up to 45 points (Cross-type AF points: Max. 45)The number of AF points, cross-type AF points and dual cross-type AF points vary depending on the lens used.
Note that, with aspect ratio of 1:1, the maximum number of AF points becomes 35. (Each left and right end line of AF points in total of ten are not usable.)
AF Working Range One-shot AF, room temperature, ISO 100
(Based on Canon’s testing standards and environment)
Focusing Modes

Autofocus
One-Shot AF
Predictive Al Servo AF (Al Servo AF III+)
AI Focus AF
(Switches between One-Shot AF and AI Servo AF automatically.)

Manual Focus

AF Point Selection

Manual Selection: 1 pt AF
The checkmark cannot be removed from this option.

Manual Selection of Zone: Zone AF
All AF points divided into nine focusing zones.

Manual Selection of Zone: Large Zone AF
All AF points divided into three focusing zones

Auto Selection: 45 point AF

Selected AF Point Display 45-point all cross-type AF system
AF Assist Beam

Intermittent firing of built-in flash

Effective Range:
Center: Approx. 13.1 ft. / 4.0m
Periphery: Approx. 11.5 ft. / 3.5m

With an EOS-dedicated Speedlite attached, the Speedlite's AF-assist beam is emitted instead.

Exposure Control


Metering Modes

63-zone (18 x 12) metering with approx. 7,560-pixel RGB+IR metering sensor and TTL full-aperture. The following metering modes selectable:

(1) Evaluative metering (linked to all AF points)
(2) Partial metering on the center part of the viewfinder (approx. 6.0% of viewfinder)
(3) Spot metering (approx. 3.8% of viewfinder)
(4) Center-weighted average metering

Metering Range EV 1-20 (room temperature, ISO 100, with evaluative metering)
Exposure Control Systems

Creative Zone
Program AE (Shiftable)
Shutter-priority AE
Aperture-priority AE
Manual exposure
Bulb
Custom shooting mode C1 or C2

Basic Zone
Scene Intelligent Auto (Program AE/non-shiftable)
Flash Off
Creative Auto
Special Scene (Food, Kids, Candlelight, Night Portrait, Handheld Night Scene, HDR Backlight Control, Portrait, Landscape, Close-up, Sports)
Creative Filters (Grainy B/W, Soft Focus, Fish-eye Effect, Toy Camera Effect, Miniature Effect, Water Painting Effect, HDR Art Standard, HDR Art Vivid, HDR Art Bold, HDR Art Embossed)

Exposure Compensation Manual: ±5 stops in 1/3- or 1/2-stop incrementsAEB: ±3 stops in 1/3- or 1/2-stop increments* Indicated up to ±3 stops on the LCD panel and in the viewfinder.
AE Lock

Auto AE Lock
In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.

Manual AE Lock
In P, Av, Tv and M mode, enabled with the AE lock button. (Press again to update)
Enabled in all metering modes.

Shutter


Type Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
Shutter Speeds 1/8000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode.)X-sync at 1/250 sec.Shutter speed's control range can be set.
Shutter Release Soft-touch electromagnetic release
Self Timer 10-sec. delay, 2-sec. delay
Shutter Lag Time 1 - During SW-1 ON, time lag between SW-2 ON and start of exposure: Approx. 0.06 sec.
2 - Time lag between simultaneous SW-1/SW-2 ON and start of exposure: Approx. 0.14 sec.
* Shutter-release time lag may become longer during silent shooting, and Live View shooting.

Built-in Flash


Type Auto pop-up, retractable, built-in flash at the pentamirror
Flash Metering System E-TTL II autoflash with all EX Series Speedlites
Guide Number Approx. 39.4 ft./12m (at ISO 100)
Up to approx. 17mm focal length (equivalent to approx. 28mm in 135 format)
Flash Coverage Up to approx. 17mm focal length (equivalent to approx. 28mm in 135 format)
FE Lock Provided
Flash Exposure Compensation ±3 stops in 1/3- or 1/2-stop increments

External Speedlite


EOS Dedicated Speedlite E-TTL II autoflash with all EX Series Speedlites
Zooming to Match Focal Length Provided
Flash Metering E-TTL II autoflash
Flash Exposure Compensation ±3 stops in 1/3- or 1/2-stop increments
FE Lock Provided
External Flash Settings

External flash control
Flash firing
E-TTL II Flash metering
Flash mode
Radio transmission wireless flash shooting
Optical transmission wireless flash shooting
Zoom
Sync setting
Flash exposure compensation
FEB
Clear settings

Flash Custom Function setting

Drive System


Drive Modes Single shooting
High-speed continuous shooting
Low-speed continuous shooting
Silent single shooting
Silent continuous shooting
10-sec. self-timer/remote control
2-sec. self-timer/remote control
Continuous Shooting Speed

High-speed continuous shooting: Max. approx. 7.0 fps
* With 1/500 sec. or faster shutter speed, maximum aperture (varies depending on the lens), Anti-flicker shooting set to Disable, with a fully-charged Battery Pack LP-E6N and at room temperature (73°F/23°C).
* With the AF mode set to One-Shot AF and the Image Stabilizer turned off when using the following lenses: EF 300mm f/4L IS USM, EF 28-135mm f/3.5-5.6

Low-speed continuous shooting: Max. approx. 3.0 fps
Silent continuous shooting: Max. approx. 3.0 fps

Live View Functions


Shooting Modes Still photo and video recording
Focusing

Dual Pixel CMOS AF
* Dual Pixel CMOS AF is possible with all EF lenses.
* Contrast AF is not provided

Manual Focus
* Magnify the image by 5x or 10x and focus manually.

Metering Modes

Evaluative metering (315-zone)
Partial metering (approx. 6.1% of viewfinder)
Spot metering (approx. 2.6% of viewfinder)
Center-weighted average metering
* AE lock possible. The active metering timer can be changed.

Metering Range EV 0-20 (room temperature, ISO 100, with evaluative metering)
Grid Display 3x3
6x4
3x3 + diag
Exposure Simulation Possible
Silent Shooting Provided (Mode 1 and Mode 2)

Video Shooting


File Format

MOV:
Movie: MPEG-4 AVC/H.264
* Variable (average) bit rate
Audio: Linear PCM

MP4:
Movie: MPEG-4 AVC/H.264
* Variable (average) bit rate
Audio: AAC

Frame Rates

MOV:
1920 x 1080 (Full HD): 30 fps (29.97 fps) / 24 fps (23.98 fps)

MP4:
1920 x 1080 (Full HD): 60 fps (59.94 fps) / 30 fps (29.97 fps) / 24 fps (23.98 fps)
1280 x 720 (HD): 60 fps (59.94 fps) / 30 fps (29.97 fps)

Continuous Shooting Time MP4Bit rate indicates video output only, audio is not included.
With MOV and MP4, if the recording time reaches 29 min. 59 sec., the movie shooting stops automatically.
With MOV and MP4, movie shooting does not stop automatically even if the file size reaches 4GB.
Focusing Dual Pixel CMOS AF
*Contrast AF is not possible.Manual focus* Magnify the image by 5x or 10x and focus manually (not possible during movie shooting).
Exposure Compensation ±3 stops in 1/3- or 1/2-stop increments
Likewise ±3 stops for still photo shooting.

LCD Monitor


Type TFT color, liquid-crystal monitor
Monitor Size Wide 3.0-inch (Screen aspect ratio of 3:2)
Approx. 3.03 in. diagonal (approx. 2.51 in. wide, approx. 1.67 in. high)
Pixels Approx. 1.04 million dots
Coverage Approx. 100%
Viewing angle: Approx. 170° vertically and horizontally
Brightness Control Adjustable to one of seven levels
Interface Languages 25
(English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)

Playback


Highlight Alert With single image display, overexposed highlight areas will blink.

Image Protection and Erase


Protection Erase protection can be applied or canceled for a single image, all images in a folder or all images in the card.
Erase Erase a single image, selected images, all images in a folder, all images in a card or erase only unprotected images.

Direct Printing


Compatible Printers PictBridge-compatible printers (wireless LAN)
Printable Images RAW and JPEG images compliant to Design rule for Camera File System.
Movies cannot be printed.

DPOF


Digital Print Order Format Compliant to DPOF Version 1.1

Customization


Custom Functions 26 Custom Functions are settable.
Custom Controls Functions can be assigned to the following buttons:
Shutter button halfway pressing
AF-ON button
AE lock button
Depth-of-field preview button
Lens AF stop button
SET button
Main Dial
Quick Control Dial
Multi controller

My Menu Registration

Up to six top-tier menu options and Custom Function settings can be registered.
Up to five My Menu tabs can be added.

Interface


USB Terminal SuperSpeed USB (USB 2.0)
For PC communication
For GP-E2 connection
For Connect Station connection
Video Out Terminal HDMI Type C (Resolution switches automatically)
* Video is not displayed unless the video format appropriate for the connected TV set, [NTSC] or [PAL], is set.

Power Source


Battery Battery Pack LP-E6N (or LP-E6) x1When the battery grip is used, two battery packs (LP-E6N or LP-E6) can be installed. Also usable with six AA/R6 batteries.
Number of Shots Number of ShotsThe capacity of the Ni-MH battery is 1900 mAh.
Battery Check Automatic battery check when the power switch is turned ON. Displayed in 6 levels.Battery level displayed on LCD panel and in viewfinder.Displayed in four levels with the battery grip with AA/R6 batteries.
Power Saving Power turns off after the set time (1, 2, 4, 8, 15 or 30 min.) of non-operation elapses.
Date / Time Battery Built-in secondary battery
Maintains date/time for about 3 months when fully charged.Recharge time: approx. 8 hr.To become capable to maintain the right date/time for one month after main battery power exhaustion.
Start-up Time Approx. 0.16 sec. (Based on CIPA testing standards)
* Excluding the recognition time for genuineness (genuine Canon battery) at the installation of the battery.

Physical Specs


Dimensions (WxHxD) Approx. 139 x 105 x 78.5 mm (5.47 x 4.14 x 3.09")
Weight

Approx. 730 g (25.75 oz)
Based on CIPA guidelines

Approx. 650 g (22.93 oz)
Body only; excluding the battery, card, body cap and eye cup

Operating Environment


Working Temperature Range 0-45°C (32-113°F)
Working Humidity Range 85% or less

EF-S18-135 mm Lens

Focal Length 18–135 mm
Maximum Aperture f/3.5–5.6
Lens Construction 16 elements in 12 groups
Diagonal Angle of View 74°20’ – 11°30’
Focus Adjustment AF with full-time manual
Closest Focusing Distance 0.39m (1.28')
Filter Diameter Size 67 mm (2.6")
Max. Diameter x Length 77.4 x 96 mm (3.1 x 3.8")
Weight Approx. 515 g (18.2 oz)

Questions & Answers

Canon EOS 80D with EF-S18-135mm f/3.5-5.6 IS USM Lens

Looking for a personal touch? Not sure if you are choosing the right product? Our staff is here to help.

We want to make sure you get the right product for your needs.
Our staff will help you understand the options available so you can be confident in your purchase.

As the country’s leading Professional Imaging retailer, Vistek is in the perfect position to ensure you make the right choice.
Contact us today for a personal touch.
