Product Highlights
  • Sony A7/A7 II/A7S/A7S II/A7R/A7R II Camera Compatibility
  • Mid Camera Size
Web Availability: On Order
Vistek Locations
  • Toronto On Order
  • Ottawa Available for Order
  • Mississauga Available for Order
  • Calgary Available for Order
  • Edmonton Available for Order
Please call and verify availability at the store as stock changes daily.

Overview

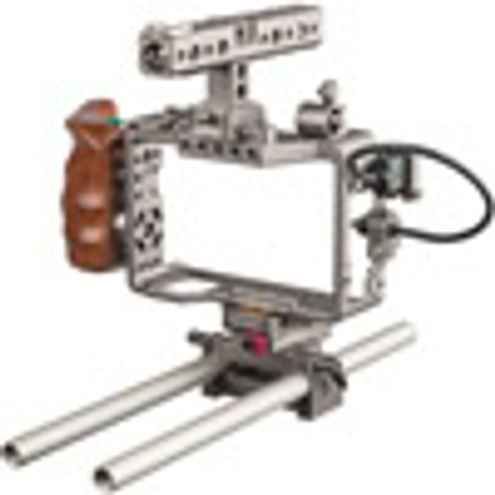

Sony Alpha Series Handheld Camera Cage Rig

With Start/Stop Wooden Handle Trigger

Designed for Sony a7R, a7RII, a7S, and a7SII (Tilta)

Tilta's ES-T17-A is an impressive and versatile camera rig for the professional shooter. It is the only form fitted cage compatible with all six versions of the Sony a7 full frame mirrorless camera. The cage is designed to fit around the hot shoe mount with easy access to the battery and side compartments. Among its many features include more than a hundred threaded hole mounts, a cold shoe mount and a 15-mm baseplate with an integrated lens adapter.

Features:

  • Fits all of the a7 series full frame mirrorless digital cameras
  • Fully enclosed unibody camera rig made out of a single piece of CNC machined aluminum
  • Arri standard rosette wooden handle with start/stop trigger
  • 15 mm light weight support baseplate with an integrated lens adapter support
  • Lens support is compatible with EF to E-Mount and PL to E-Mount Metabones adapters
  • Compatible with Sony's XLR-K1M and XLR-K2M audio adapter (requires realignment of top-handle or optional mount TT-E06)
  • Quick release system quickly unmounts the cage from the baseplate

High Quality Construction

The ES-T17-A consists of a fully enclosed unibody rig made out of a single piece of CNC machined aluminum.

Sony a7 series compatibility

The camera rig is designed to perfectly fit the entire Sony a7 series of mirrorless digital cameras.

Grip and Record

Start/Stop remote trigger wooden handle handcrafted out of Brazilian rosewood.

Baseplate Support

A 15-mm Light Weight Support (LWS) baseplate with an integrated lens adapter comes with the ES-T17-A. The lens adapter is compatible with EF to E-mount or PL to E-mount Metabones adapters. A second lens support bar is also included.

The quick release rail design allows the ES-T17-A cage to easily connect or detach from the baseplate.

NATO Rail Top Handle

A NATO rail mounted Top Handle is included with the ES-T17-A camera rig. It can be adjusted into four different positions and the top handle also features a cold shoe mount.

Additional Features:

  • Arri Standard Rosette
  • Camera Strap Access
  • Cold Shoe Mount
  • 15 mm Accessory Rod Clamp
  • HDMI Plug Protector
  • 15 mm Threaded Rods

XLR Audio Adapter Compatible

The design of this handheld rig centers around the hot shoe mount. This allows the operator to easily mount Sony's XLR audio adapter (XLR-K1M or XLR-K2M) directly on the top of it.

  • Versatility

    Aside from fitting all versions of the Sony a7 series, the ES-T17 can also be configured to work with the Movi, Ronin, shoulder rigs, drones, etc.
  • Accessible

    The bottom of the camera rig has an open section for the battery port. This makes it easy to remove the battery from the camera without removing the camera from the cage.

What's Included

3/16 Socket Cap Screw
A7 / A7S Quick Release Rail
A7RII / A7SII Quick Release Rail
Accessory Rail
Micro (Male) To Standard (Female) HDMI Cable
Micro HDMI Plug Protector
Milti-Terminal USB Control Cable
Single Rod Clamp
Standard HDMI Plug Protector
Support Bar For EF Lens Mount
Support Bar For PL Lens Mount
Thumbscrew
Tilta Warranty Card
Top Handle
Wooden Handle
A7 Lens Support Baseplate
A7 Series Camera Cage
12 In. Threaded 15 Mm Rod (R15-300) x2
3mm Socket Cap Screw x3
4 Mm Flat Phillips Head Screw x4

Reviews

Product Specifications

ES-T17-A

a7 Series Camera Cage


Weight 0.264 kg (0.58 lbs)
1/4"-20 Threaded Holes 87
3/8"-16 Threaded Holes
Compatibility a7/a7s Quick Release Rail
a7RII / a7sII Quick Release Rail
Material Aluminum

a7 Lens Support Baseplate


Weight 0.272 kg (0.60 lbs)
Baseplate Type 15 mm LWS
Dovetail Compatibility TT-C16
Rod Compatibility 15mm
Rod Spacing 60 mm
Tripod Mounting 3 x 1/4"-20
Material Aluminum

Top Handle


Weight 0.19 kg (0.42 lbs)
Shoe Mounts
1/4"-20 Threaded Holes
3/8"-16 Threaded Holes
Compatible With Accessory Rail
Material Aluminum

Accessory Rail


Weight 0.022 kg (0.05 lbs)
1/4"-20 Threaded Holes
3/8"-16 Threaded Holes
Compatible With a7 Series Cage
a7 Lens Support Baseplate
Material Aluminum

A7 / A7S Quick Release Rail


Weight 0.024 kg (0.05 lbs)
Compatible With a7 Series Cage
a7 Lens Support Baseplate
Material Aluminum

A7 / A7S Quick Release Rail


Weight 0.024 kg (0.05 lbs)
Compatible With a7 Series Cage
a7 Lens Support Baseplate
Material Aluminum

Single Rod Clamp


Weight 0.01 kg (0.02 lbs)
Rod Compatibility 15 mm
Compatible With Thumbscrew
a7 Series Cage
Material Aluminum

12" Threaded 15mm Rod
(R15-300)


Rod Type Tapered (Single-Sided)
Rod Diameter 15 mm
Rod Length 300 mm (12")
Weight 0.084 kg (0.18 lbs)
Thread Type Female
Material Aluminum

Micro HDMI Plug Protector


Weight 0.008 kg (0.02 lbs)
Material Aluminum

Standard HDMI Plug Protector


Weight 0.008 kg (0.02 lbs)
Material Aluminum

Micro (Male) to Standard (Female) HDMI Cable


Length 290 mm (11.4")
Weight 0.018 kg (0.04 lbs)

Wooden Handle


Weight 0.202 kg (0.44 lbs)
Material Brazilian Rosewood / Aluminum Alloy

Multi-Terminal USB Control Cable


Cable Type Coiled
Length 380 - 914 mm (15 - 36")
Weight 0.032 kg (0.07 lbs)
