Product Highlights
  • 7" LCD Field Monitor
  • 1920 x 1200 Resolution
  • 500 cd/m2 Brightness
  • 3G-SDI/HDMI Input
  • 3G-SDI/HDMI Output
Option:
Q5
Q7
Q7 PRO

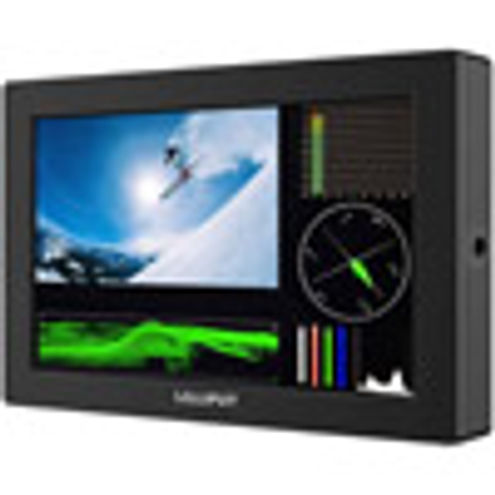

Lilliput 7" Full HD SDI Monitor Lilliput 7" Full HD SDI Monitor
SAVE $200   $539.99 Add to Cart
Overstock
FREE SHIPPING Available
Web Availability: In Stock
Vistek Locations
  • Toronto In Stock
Please call and verify availability at the store as stock changes daily.

Overview

7" FHD Camera Monitor with SDI and HDMI cross conversion

Key Features:

  • 1920x1200, Full HD resolution,
  • 500cd/m² high brightness,
  • 1000:1 high contrast,
  • Waveform PIP mode,
  • Column (YRGB peak), time code,
  • SDI and HDMI cross conversion,
  • Metal housing, 22mm slim.

Precise Color

This monitor features 7" 16:10 LCD panel with 1920x1200 Full HD resolution, 1000:1 high contrast, 165° wide viewing angles, 500cd/m² high brightness, which offers a truly outstanding viewing experience.

Integrated New Advanced Functions

Lilliput creatively integrated column (YRGB peak), time code, waveform, vector scope & audio level meter into field monitor. And multiple modes for optional.

Metal Housing Design

Thinner (22mm) with a firm metal body, makes a better protection from vibration, drop & bad environment outside. Longer life time for the device.

SDI and HDMI Cross Conversion

With high quality HDMI & 3G-SDI inputs, make sure that precise color can be controlled under multiple displays conveniently.

The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.

More Auxiliary Functions

More professinal functions assist users to accurately monitor when shooting, making and playing movies/videos.

Reviews

Product Specifications

Q7

DISPLAY


Display Screen 7"
Physical Resolution 1920×1200
Aspect Ratio 16:10
Brightness 500cd/m2
Contrast 1000:1
Viewing Angle 170°/170°(H/V)

INPUT


3G-SDI 1
HDMI

OUTPUT


3G-SDI
HDMI

AUDIO


Speaker
Ear Phone Slot

SDI FORMAT


SMPTE-125M 480i(59.94)
1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-292M 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-372M 720p(60/59.94/50)
1080i(29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M-AB 1080p(60/59.94/50)
-Level A & Level B 720p(60/59.94/50/30/29.97/25/24/23.98)
Level B 2x 1080i(60/59.94/50)
ITU-R BT.656 576i(50)

HDMI FORMAT


Full HD ~ HD 1080p, 1080i, 720p, 576p, 576i, 480p, 486i

POWER


Current 1A
Input Voltage DC 7-24V
Battery Plate V-mount / Anton Bauer mount /
F970 / QM91D / DU21 / LP-E6
Power Consumption ≤12W

ENVIRONMENT


Operating Temperature -20°~60°
Storage Temperature -30°~70°

PHYSICAL SPECS


Dimension (LxWxD) 182×124×22 mm
Weight 405 g
