• Webcode: 411651 • Mfr: MATRICE 600PRO
Product Highlights
  • 38 min Max. Flight Time
  • 65 kph/40 mph Max. Speed
  • 5 km/3.1 mile Transmission Distance
  • Aircraft & Remote Controller
  • Maximum Payload Support of 15.5 kg
Option:
Matrice 600 Pro
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

Simply Professional Performance

The Matrice 600 Pro (M600 Pro) inherits everything from the M600 with improved flight performance and better loading capacity. Pre-installed arms and antennas reduce time required for setup, and the system’s modular design makes it easy to mount additional modules.

The airframe is equipped with the latest DJI technologies, including the A3 Pro flight controller, Lightbridge 2 HD transmission system, Intelligent Batteries and Battery Management system. All Zenmuse cameras and gimbals are natively compatible and full integration with third party software and hardware make the M600 Pro ideal for professional aerial photography and industrial applications.

Key Features:

  • A3 Pro Flight Controller, Superlative Performance.
  • Complete Integration, Ultra Convenient
  • Charge Six Batteries Simultaneously
  • Aerial Imaging Solution
  • Extended Flight Time and Transmission Range
  • Professional HD Transmission

A3 PRO FLIGHT CONTROLLER. SUPERLATIVE PERFORMANCE.

The A3 Pro Flight Controller has triple modular redundancy and diagnostic algorithms that compare sensor data from three sets of GNSS units, with additional analytical redundancies for a total of six. A new dampening system for the A3's modules enable precise control of multi-rotor aircraft, providing accurate data for stable flight performance. Self-adaptive systems will automatically adjust flight parameters based on different payloads. Compatibility with D-RTK GNSS means that the A3 Pro can withstand magnetic interference, providing centimeter-level accuracy, suitable for various industrial applications.

COMPLETE INTEGRATION. ULTRA CONVENIENT.

The M600 Pro is simple and easy to set up, ready to fly in a matter of minutes. Its airframe has been optimized for easier transportation with a quick-release landing gear design and folding frame arms. Under the new upper cover, the positions of GNSS modules and sensors have been revamped and a new dampening system for the IMU units increases reliability during flight. The M600 Pro also comes with a durable, customizable case that absorbs impact from shakes or falls, providing all-round prtection when carried or transported.

CHARGE SIX BATTERIES SIMULTANEOUSLY

The M600 Pro charger has six charging hubs, enabing it to charge six Intelligent Batteries simultaneously. All six batteries can be fully charged in a short amount of time*, for quick and efficient preparation.

* 92 minutes for TB47S and 110 minutes for TB48S.

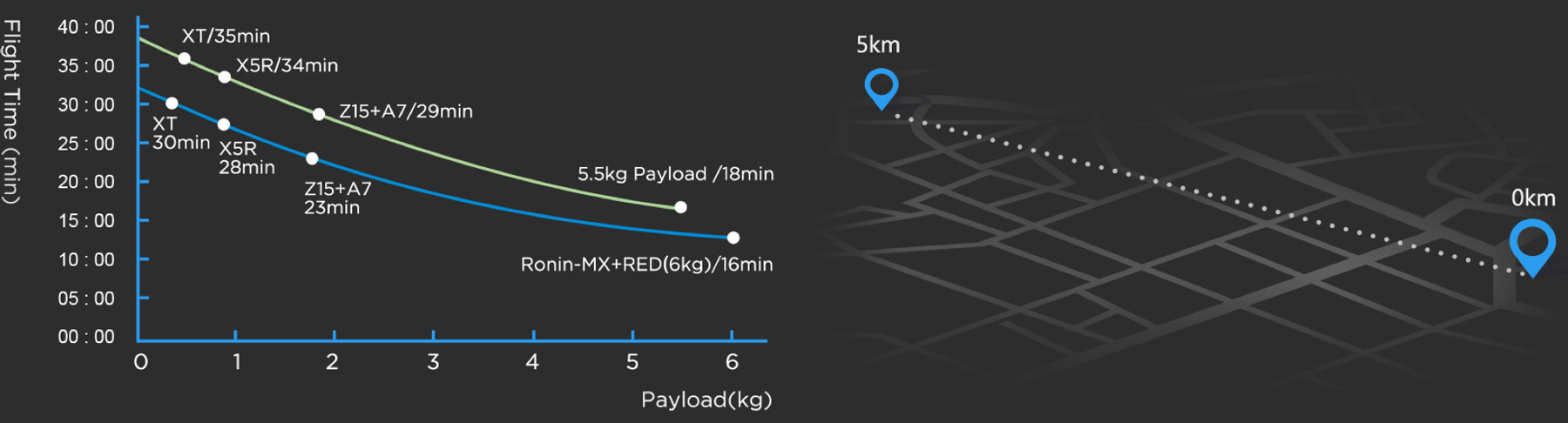

Extended Flight Time and Transmission Range

The M600 Pro has an extended flight time and a 5km* long-range transmission. A comprehensive battery management system means that if any of its six Intelligent Batteries are turned on or off, the rest will follow suit. The battery management system monitors every battery during flight, ensuring safe landing in the event of single battery failure. Compared to traditional non-intelligent batteries, the M600 Pro’s battery management system simplifies maintenance while enhancing security.

Aerial Imaging Solution

Dustproof propulsion systems simplify maintenance and active cooling motors ensure that operation is reliable for extended periods of time. The M600 Pro is natively compatible with current Zenmuse cameras and gimbals. With a maximum payload of 6kg, it effortlessly supports the Ronin-MX gimbal, DJI Focus and a range of cameras from Micro Four Thirds systems to the RED EPIC.

Professional HD Transmission

DJI Lightbridge 2 has been designed to meet all the requirements of professional broadcasting, offering high frame rates and HD live streaming. USB, mini-HDMI, 3G-SDI ports and Lightbridge 2 Ground Unit all support video output at up to 1080p/60fps. Dynamic, self-adaptive wireless data links enable long-range transmission with ultra-low latency, supporting a broadcast standard output of 720p/59.94fps and 1080i/50fps, enabling even more creative opportunities for aerial imaging.

  • D-RTK GNSS

    Using dual antennas, the D-RTK GNSS system is a significant breakthrough for high-precision industrial applications. It is able to withstand strong magnetic interference and provides centimeter-level accuracy in environments with metal structures.
  • OPEN SDK DEVELOPMENT

    The M600 Pro is fully compatible with the DJI Onboard SDK and Mobile SDK to meet the requirements of those building software for various industrial applications. It has four — dual parallel — CAN ports and one API port for connecting DJI devices, including the D-RTK GNSS units or third party components of your choice.
  • POWERFUL APP CONTROL

    The M600 Pro supports the DJI GO app and DJI Assistant 2. Get a live HD view, battery status, redundancy status, transmission strength and much more, straight from the DJI GO app. DJI GO is also the control center for the camera, giving access to shutter speed, ISO, photo or video capture, on any Zenmuse series camera and remote focus and aperture control on the Zenmuse X5 and X5R cameras. DJI Assistant 2 supports firmware updates and Ground Station, and comes with a built-in flight simulator.

What's Included

  • DJI Matrice 600 Pro Aircraft Body (with Arm Sleeves)
  • Landing Gear Legs x2
  • Landing Skids x2
  • Springs x2
  • Remote Controller
  • Intelligent Flight Batteries (TB47S) x6
  • Hex Charger
  • Inner Foam Case
  • Power Cable
  • RC Charging Cables x2
  • Micro USB Cable
  • Knobs (with Gasket) x6
  • Tape
  • Battery Stickers
  • Screws
    M3x5.5, M3x8
    M3x8 (Thumb)

    M3x12
  • Manuals
    In the Box
    Quick Start Guide
    Disclaimer and Safety Guidelines
    Intelligent Flight Battery Safety Guidelines

Reviews

Product Specifications

Matrice 600 Pro

AIRCRAFT


Diagonal Wheelbase 1133 mm
Dimensions

1668 mm × 1518 mm × 727 mm with propellers, frame arms and GPS mount unfolded
(including landing gear)

437 mm × 402 mm × 553 mm with propellers, frame arms and GPS mount folded
(excluding landing gear)

Package Dimensions 525 mm × 480 mm × 625 mm
Weight
(with six TB47S batteries)
9.5 kg
Weight
(with six TB48S batteries)
10 kg
Max Takeoff Weight Recommended 15.5 kg
Hovering Accuracy (P-GPS) Vertical: ±0.5 m
Horizontal: ±1.5 m
Max Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Max Pitch Angle 25°
Max Wind Resistance 8 m/s
Max Ascent Speed 5 m/s
Max Descent Speed 3 m/s
Max Speed 40 mph / 65 kph (no wind)
Max Service Ceiling Above Sea Level 2500 m
Hovering Time*
(with six TB47S batteries)
No payload: 32 min, 6 kg payload: 16 min
Hovering Time*
(with six TB48S batteries)
No payload: 38 min, 5.5 kg payload: 18 min
Flight Control System A3 Pro
Supported DJI Gimbals Ronin-MX; ZENMUSETM Z30, Zenmuse X5/X5R, Zenmuse X3, Zenmuse XT; Zenmuse Z15 Series HD Gimbal: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
Retractable Landing Gear Standard
Operating Temperature 14° to 104° F (-10° to 40° C)

CHARGER


Model MC6S600
Voltage Output 26.1 V
Rated Power 600 W
Single Battery Port Output Power 100 W

OPTIONAL BATTERY


Model TB48S
Capacity 5700 mAh
Voltage 22.8 V
Battery Type LiPo 6S
Energy 129.96 Wh
Net Weight 680 g
Operating Temperature 14° to 104° F (-10° to 40° C)
Max Charging Power 180 W

REMOTE CONTROLLER


Operating Frequency 920.6 MHz to 928 MHz (Japan); 5.725 GHz to 5.825 GHz; 2.400 GHz to 2.483 GHz
Max Transmission Distance FCC Compliant: 3.1 mi (5 km), CE Compliant: 2.2 mi (3.5 km) (Unobstructed, free of interference)
Transmitter Power (EIRP) 10 dBm @ 900M, 13 dBm @ 5.8G, 20 dBm @ 2.4G
Video Output Port HDMI, SDI, USB
Operating Temperature 14° to 104° F (-10° to 40° C)
Battery 6000 mAh LiPo 2S

STANDARD BATTERY


Model TB47S
Capacity 4500 mAh
Voltage 22.2 V
Battery Type LiPo 6S
Energy 99.9 Wh
Net Weight 595 g
Operating Temperature 14° to 104° F (-10° to 40° C)
Max Charging Power 180 W
