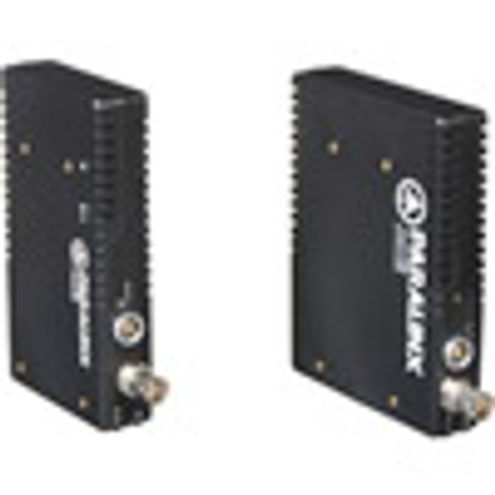

Paralinx Ace Transmitters & Receivers
The Paralinx Ace wireless video transmission system is the latest addition to the Paralinx family. Featuring realtime, uncompressed, wireless HD video and available with either SDI or HDMI input/output this compact, rugged, lightweight system is the ultimate short-range wireless solution for professional filmmakers.
The Ace will send uncompressed HD video signals up to 1080p60 with zero-latency up to a maximum range of 300ft/100m. Each transmitter can multicast to up to 4 receivers and receivers can be paired by the user via an onscreen-display. The rugged aluminum and ABS plastic enclosures are lightweight and feature threaded inserts for attaching an onboard battery plate (LP-E6, NP-F, BP-U) or mounting brackets.
What's IncludedAce SDI Transmitter
Ace SDI Receiver
2x Ace Mounting Brackets
2x 18" D-Tap to 2-Pin Power Connector
18" 2-Pin LEMO to 2-Pin Power Connector
Power Supply Unit with International Plugs (US, UK, Euro)
2x 18" Right-Angle to Right-Angle BNC Cable
18" Mini-USB to USB Firmware Cable
Custom-Designed Pelican 1470 Case
Paralinx Ace Tx & Rx
|Zero-latency||Less than 1ms|
|Range||Up to 100 m (300')|
|Signal Quality||Uncompressed, up to 1080p/60|
|Input/Output||SDI or HDMI|
|Power||SDI: 7-17v 2-Pin input
HDMI: 7-17v DC Barrel input
|Weight (HDMI)||Transmitter: 126g
|Weight (SDI)||Transmitter: 146g
|Enclosure Dimensions (HDMI or SDI)||Transmitter: 6.7 x 11.9 x 1.5 cm (2.6 x 4.7 x 0.6")
Receiver: 8.6 x 11.5 x 1.5 cm (93.4 x 4.5 x 0.6")
Questions & Answers
Paralinx Ace SDI 1:1 with LEMO Power Input
