• Webcode: 415951 • Mfr: INSP 2 RAW (LC3)
Product Highlights
  • 30 min Max. Flight Time
  • 72 kph/45 mph Max. Speed
  • 7 km/4.3 mile Transmission Distance
  • 20MP CMOS Sensor
  • Aircraft & Accessory Kit
  • 1-inch Image Sensor
  • Includes CinemaDNG & Apple ProRes Codec
  • Includes Cendence Remote
Kit Options:
Inspire 2 ProRes
Standard Combo
Body, Cendence Remote, CinemaDNG & Apple ProRes
Professional Combo
Premium Combo
Cinema Premium Combo
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

Inspire 2 RAW

Inspire 2 Activation Key of RAW & Apple ProRes

The CineCore 2.0 image processing system includes a high-performance video processor and a high-speed storage system that features a DJI CINESSD and an optimized FAT32/exFAT file system. This allows the Inspire 2 to support CinemaDNG and Apple ProRes recording. Inspire 2 Activation Key of RAW & Apple ProRes unlock these advanced capabilities for high-level filmmaking purposes.

An Inspire 2 Activation Key of RAW & Apple ProRes activates the usage permission of CinemaDNG or Apple ProRes inside CineCore 2.0. There are many standards of CinemaDNG or Apple ProRes Activation Keys available for purchase.The purchase of an activation key unlocks a license permanently. No re-purchase or subscription required.Used with the DJI CINESSD and the optimized FAT32/exFAT file system, Activation Keys enable Hollywood-grade video formats to be captured for advanced post-production.

Key Features:

  • CinemaDNG and Apple ProRes support
  • Oversampling captures more detail
  • Popular workflow support

POWERFUL PERFORMANCE

Inspire 2 Activation Keys unlock 5.2K CinemaDNG and/or Apple ProRes recording for demanding shoots that require fine image control in post-production.

EXTRAORDINARY DETAIL

Oversampling techniques are used to create higher resolution images from the original image recorded by the sensor, capturing more detail in every shot.

ULTRA-EFFICIENT WORKFLOW

An efficient workflow is essential to video post processing. With the Inspire 2’s CinemaDNG and Apple ProRes workflows, filmmakers are able to work with their footage more effectively, in turn making editing more efficient. Using the optimized FAT32/exFAT file system, footage can be viewed directly on a computer once the DJI CINESSD is connected, eliminating the need for additional software and further streamlining post-production.

Image quality, power and intelligence to meet the needs of professional filmmakers and enterprises around the globe.

The Inspire 1 was a revelation. The first filmmaking drone in the world to integrate an HD video transmission system, 360° rotating gimbal and a 4K camera, as well as the simplicity of app control. The launches of the Zenmuse X5 and X5R cameras further cemented the Inspire as a critical tool for filmmakers around the globe.

The Inspire 2 takes everything that was good about the Inspire 1 and improves it. An all-new image processing system records at up to 5.2K in CinemaDNG RAW, Apple ProRes and more. It goes from 0 to 50mph (80kph) in just 4 seconds and hits a maximum speed of 67mph (108kph) and has a max descent speed of 9m/s for unheard of speed and agility in an aircraft this size. A dual battery system prolongs the flight time to a maximum of 27 minutes (with an X4S), while self-heating technology allows it to fly even in low temperatures. FlightAutonomy has been revised and developed specifically for the Inspire 2, providing two directions of obstacle avoidance and sensor redundancy. Increased intelligence adds multiple intelligent flight modes, including Spotlight Pro, giving even single pilots the ability to create complex, dramatic shots. An upgraded video transmission system is now capable of dual signal frequency and dual channel, streaming video from an onboard FPV camera and the main camera simultaneously, for better pilot and camera operator collaboration.

  • Flight Time - 25-27 min
  • Control Range - 7 km
  • Speed - 30m/s
  • Video Resolution - 5.2K / 4K
  • Sensory Range - 30 m
  • Live View - 1080p

Aircraft

  • Structure:

    Magnesium aluminum composite shell and transforming design, carbon fiber arms
  • Configuration:

    Vision sensing, 2-axis FPV camera, range of supported cameras
  • Propulsion:

    67mph (108kph) max speed, 2kg thrust per rotor, 15in props, maximum 27min flight time (with X4S).
  • Battery:

    Dual battery, self-heating, battery redundancy, 98Wh

Image Processing

  • Image Processing and storage:

    5.2K@4.2Gbps RAW video recording, CineCore 2.0, integrated DJI CINESSD.
  • File System:

    FAT32/exFAT universal file system.
  • Video Format:

    CinemaDNG and Apple ProRes 5.2K video support, H.265 and H.264 video codec support, 4K video at 100Mbps.
    Recorded Video can be stored simultaneously on the DJI CINESSD and a Micro-SD card.

Remote Controller

  • Lightbridge technology:

    Signal frequency switching between 2.4 GHz and 5.8 GHz. Lightbridge technology.
  • Controllable range:

    4.3 mi (7km)*
  • Master-slave mode:

    Multiple slave controllers supported
  • Ports:

    Extension port, HDMI port, USB port

    * Unobstructed, free of interference, when FCC compliant.

Professional Image Quality

Integrated into the Inspire 2 is the brand new CineCore 2.0 image processing system, capable of recording 5.2K videos in CinemaDNG*1, Apple ProRes*2 and more. CineCore 2.0 is built into the aircraft nose and works with any camera connected through the dedicated gimbal port.

  • Currently compatible with X4S*3 and X5S.

Efficient Workflow

The Inspire 2 creative workflow has been completely optimized and is now capable of recording video in CinemaDNG and Apple ProRes, and other common formats for post-production in filmmaking. Also supported are FAT32/exFAT* file systems, which allow fast copying of files direct from the CINESSD without additional software.

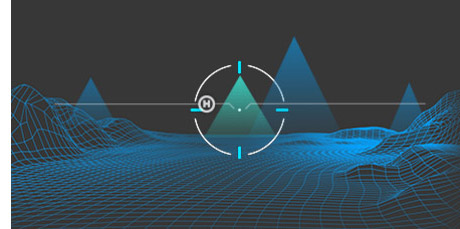

Sense and Avoid

Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34mph (54kph) at a controllable attitude angle of 25°. Upward facing infrared sensors scan obstacles 16ft (5m) above, adding protection when flying in enclosed spaces.

Obstacle sensing systems are active during normal flight, RTH and all Intelligent Flight Modes.These sensors are core components of the DJI FlightAutonomy system, which brings the below intelligent features to the Inspire 2:

  • Upward Infrared Sensors
  • Obstacle avoidance
  • Accurate indoor hovering and positioning
  • Automatic obstacle avoidance during RTH
  • Terrain detection

Spotlight Pro

Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced visual tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.

It has two shooting modes, Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position.

When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments.

Spotlight Pro is available in all Intelligent Flight Modes including ActiveTrack, TapFly, Waypoint and Point of Interest.

Intelligent Flight Modes

In addition to Spotlight Pro, a range of other intelligent flight and shooting modes are available. Obstacle avoidance is optimized when using Point of Interest* and Waypoint* modes, making complex shots simple and repeatable. Also available are QuickSpin, TapFly and ActiveTrack, to simplify challenging shots.


TapFly

The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated TapFly camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.






ActiveTrack

The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.







Smart Return Home

Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return Home is enabled, it is able to fly home along its original route, and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.



Video Transmission System

The latest update to DJI Lightbridge technology has an effective transmission distance of up to 4.3mi (7km)* and is capable of delivering both 1080p/720p video as well as the FPV view to pilot and camera operator. Users can also switch between 2.4GHz and 5.8GHz** control frequencies to cut through noise for greater signal stability.

Master and Slave Controllers

A new wireless HD image transmission technology sends video information from the master controller to the slave controller and the two controllers can be up to 100m apart without loss of image quality.

Broadcast mode

Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50 and 720p60 transmission signal. Aerial live-streaming direct to TV is as simple as connecting the Inspire 2 remote controller to the satellite truck.

* Unobstructed, free of interference, FCC compliant.

** 5.8GHz transmission is not available in some regions due to local regulations.

Powerful Flight Performance

A new propulsion system optimized for power creates a new level of flight performance. The Inspire 2 flies at up to 67mph (108kph) descends at 9m/s and climbs at 6m/s. It can accelerate from 0 to 50mph (80kph) in just four seconds and flies at a max attitude angle of 40°. The two controller sticks are tuned for more sensitivity, making delicate maneuvers easier.

More power also allows the Inspire 2 to fly in more extreme conditions, including over 2500-5000m above sea level (using optional dedicated propellers), and in temperatures as low as -4°F (-20°C) using self-heating Intelligent Flight Batteries.

Increased Reliability

Reliability has been further enhanced through dual redundancy of key modules such as the IMU and barometer. The intelligent flight control system monitors the redundancy system, giving it accurate flight data.

The new obstacle sensing system helps the Inspire 2 sense and avoid obstacles, minimizing the risk of collision.

Dual batteries mean that if a problem occurs on one battery the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, transmission will continue through the serial port.

This propulsion system has been tested for thousands of hours to ensure reliability, when combined with key sensors and a dual-battery design, overall flight reliability is significantly enhanced.

Cendence Remote Control

DJI's Cendence Remote Controller provides up to five analog control channels and over ten customizable buttons, improving overall control efficiency, while Cendence's design offers antenna interchangeability.

A high-gain antenna, or DJI’s Tracktenna, can augment the power of DJI Lightbridge technology, significantly increasing overall anti-interference and image quality. HDMI, SDI, USB, and CAN ports provide robust expansion capabilities. Cendence comes with the fully integrated Cendence Monitor Mounting Bracket.

Dials, Levers, and Knobs

The two knobs on the front panel control gimbal pitch and yaw, and the right/left levers and Focus Adjustment Knob are used to tune flight controller settings and the gimbal camera in real-time, allowing you to pull focus and set aperture.

Camera Settings

For quick camera adjustments, you can customize several shortcut buttons for particular groups of settings, or save frequently used settings.

Custom Control

Customizable buttons can quickly enable or disable frequently used functions like focus peaking, color waveform, obstacle avoidance, and home point resetting, or close warnings and tips midflight, all without using an app.

Button Combinations

Rotate the dials or the toggle the right/left levers while holding certain buttons to control gimbal roll, shutter speed, aperture, or ISO.

Detachable Design, CrystalSky Compatibility

The CrystalSky monitor mounts to the Cendence remote controller via the Cendence Monitor Mounting Bracket.
The Cendence remote controller’s antennas, PCB, mounting bracket, and battery are all detachable, making its hardware easily upgradable, allowing you to customize the controller for compatibility with future DJI aircraft.

Dual Operator Control

When precision camera control is required, the Cendence remote controller can connect as either a master or slave controller with the Inspire 2’s remote controller or another Cendence remote controller.

Battery System

Cendence uses a detachable battery that operates for up to four hours. If you run out of power, just swap in a charged battery or charge Cendence via the power port. Cendence uses the same batteries as CrystalSky monitors, enhancing product synergy.

Multiple Ports

  • SDI and HDMI ports support broadcasting at 1080i50 and 720p60.

  • Connect DJI Focus, Tracktenna, or other compatible accessories via the CAN port. Use Tracktenna to achieve stable and high-bandwidth transmission over long distances at 2.4 GHz or 5.8 GHz frequency bands. When used with the Inspire 2, Tracktenna can achieve a maximum data transmission speed of 10 Mbps within 1.24 mi (2 km), dramatically improving video downlink quality.

  • The USBA port supports connecting with other mobile devices

What's Included

DJI Inspire 2 Aircraft
Cendence Remote
CinemaDNG & Apple ProRes Activation Key

Reviews

Product Specifications

Inspire 2

AIRCRAFT (MODEL: T650)


Weight 7.25 lbs (3290 g, including two batteries, without gimbal and camera)
Diagonal Distance
(propeller excluded)
18 inch (605 mm, Landing Mode)
Max Takeoff Weight 8.82 lbs (4000 g)
Max Takeoff Sea Level 1.55 mi (2500 m); 3.1 mi (5000 m with specially-designed propeller)
Max Flight Time Approx. 27 min (with Zenmuse X4S)
Max Tilt Angle P-mode: 35° (Forward Vision System enabled: 25°); A-mode: 35°; S-mode: 40°
Max Ascent Speed P-mode/A-mode: 16.4 ft/s (5 m/s); S-mode: 19.7 ft/s (6 m/s)
Max Descent Speed Vertical: 13.1 ft/s (4 m/s); Tilt: 13.1-29.5 ft/s (4-9 m/s) Default tilt is 13.1 ft/s (4 m/s), can be set in-app.
Max Speed 67 mph (108 kph)
GPS Hovering Accuracy Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled) Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled)
Operating Temperature -4° to 104° F (-20° to 40° C)

DOWNWARD VISION SYSTEM


Velocity Range <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m)
Altitude Range <32.8 feet (10 m)
Operating Range <32.8 feet (10 m)
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
Ultrasonic Sensor Operating Range 0.33-16.4 feet (10-500 cm)
Ultrasonic Sensor Operating Environment Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

UPWARD INFRARED SENSOR


Obstacle Sensing Range 0-16.4 feet (0-5 m)
FOV ±5°
Operating Environment Large-size non-reflective obstacles

CHARGER (MODE: IN2C180)


Voltage 26.1 V
Rated Power 180 W

CHARGING HUB (MODE: IN2CH)


Input Voltage 26.1 V
Input Current 6.9 A

GIMBAL


Angular Vibration Range ±0.01°
Controllable Range Pitch: -130° to+40°; Roll: ±20°; Pan: ±320°
Max Controllable Speed Pitch: 90°/s; Roll: 90°/s; Pan: 90°/s

FORWARD VISION SYSTEM


Obstacle Sensing Range 2.3-98.4 feet (0.7-30 m)
FOV Horizontal: 60°; Vertical: 54°
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

REMOTE CONTROLLER


Operating Frequency 2.400-2.483 GHz; 5.725-5.850 GHz
Max Transmitting Distance

2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC)

(unobstructed, free of interference)
5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)

EIRP 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
Battery 6000mAh 2S LiPo
Output Power 9 W (Not supply power for mobile device)
USB Supply Power iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)
Operating Temperature -4° to 104° F (-20° to 40° C)

INTELLIGENT FLIGHT BATTERY (MODE: TB50-4280MAH-22.8V)


Capacity 4280 mAh
Voltage 22.8 V
Battery Type LiPo 6S
Energy 97.58 Wh
Net Weight 515 g
Charging Temperature 41° to 104° F (5° to 40° C)
Operating Temperature -4° to 104° F (-20° to 40° C)
Max Charging Power 180 W

CinemaDNG & Apple ProRes Activation Key



CinemaDNG

3840x2160 12bit
23.976*/24*/25*/29.97*/47.952? fps

3840x2160 10bit 50/59.94 fps

4096x2160 12bit
23.976*/24*/25*/29.97*/47.952? fps

4096x2160 10bit 50/59.94 fps ?

5280x2972 12bit 23.976/24/25/29.97 fps ?

Apple ProRes 422 HQ

3840x2160 23.976*/24*/25*/29.97* fps

5280x2160 23.976/24/25/29.97 fps

Apple ProRes 4444 XQ(no alpha) 3840x2160 23.976*/24*/25*/29.97* fps
