• Webcode: 416996 • Mfr: ATOM-SHGIN2
Product Highlights
  • 7.1" IPS Touchscreen Field Monitor
  • 1920 x 1200 Resolution
  • 1500 nits Brightness
  • HDMI/SDI/SIGNAL Input
  • HDMI/SDI/SIGNAL Output
  • 2.5" SSD/HDD Storage
Web Availability: In Stock
Vistek Locations
  • Toronto In Stock
  • Ottawa Available for Order
  • Mississauga Available for Order
  • Calgary Available for Order
  • Edmonton Available for Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $69.43 Learn More

Overview

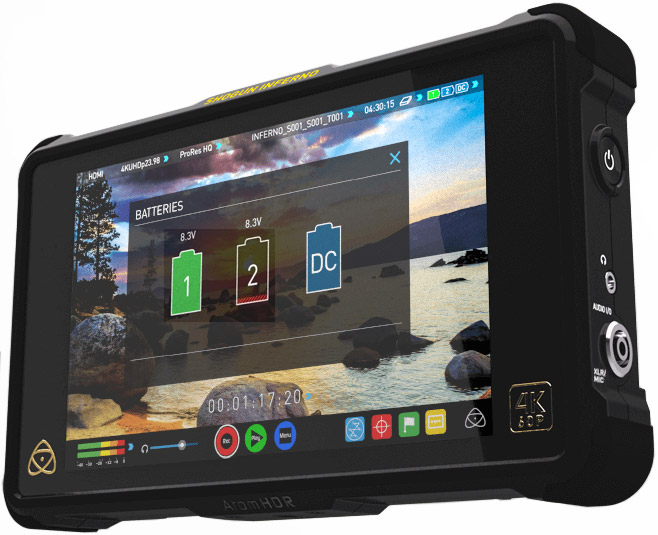

Atomos Shogun Inferno

4K Monitor Recorder

Atomos invented the all-in-one monitor recorder category and now redefine it with the Shogun Inferno. It is the combination of the most advanced monitor technologies – 1500nit/10bit/HDR, the latest recording capability – 4Kp60 over Quad-SDI, along with playback & editing functionality that encourages on set collaboration. Shogun Inferno makes mastering a high resolution, high frame rate, high dynamic range workflow available to all filmmakers.

Simple OS, Sophisticated Shots

The Shogun Inferno is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (Focus peaking, 2:1/1:1 zoom, Zebra, False Color, Safe Area, luma/RGB parade, vectorscope) along with a flexible 3D LUT implementation (use built-in LUTs or upload .cube files) and options for de-squeezing anamorphic content.

Shoot HDR with Log Cameras

AtomHDR image processing lets you shoot with the high brightness range of your camera’s Log profile while maintaining vibrant true-to-life colors. Conventional monitors lack this capability, displaying the brightness detail of Log but with a washed out image that makes judging exposure difficult. Be at the forefront of the HDR revolution by having a field monitor capable of resolving HDR in the field as you see it in Post Production and record the original Log image direct from the sensor for HDR grading in post production.


Continuous Power & Super Fast Charging

Inferno features our patented continuous power system - a hot swappable dual battery system that automatically swaps to the second battery when power is low. To support the dual battery system we include a blazingly fast battery charger, two 4-cell batteries and a D-Tap to DC coiled cable to ensure continuous power in the field is all but assured.


Monitor & Record XLR Audio

The Shogun Inferno has multiple audio options replacing the need for a separate audio recorder. Monitor up to 8ch of embedded HDMI audio, up to 12ch of SDI audio or use the included XLR breakout cable to connect with external microphones for balanced analogue audio with 48V phantom power.

Advanced Recording Capability

Outside of RAW and high frame rate 4:2:2 Apple ProRes / AVID DNxHR recording, the Shogun Inferno adds recording functionality not found in other recorders. Trigger start/stop recording over HDMI or SDI popular cameras, convert interlace to progressive signals on the fly with built-in 3:2 and 2:2 pulldown or use features like Pre-roll (continuous cache recording) and Time lapse to maximise your creativity.

Battle-Ready for the Field

Our built-in armor enhances protection & airflow whilst the raft of accessories (2 x NP series 4-cell batteries, fast battery charger, USB3 docking station, XLR breakout cable, Lanc cable, DC to D-Tap cable, 5 x Master Caddy cases, DC adapter & HDR sun hood) and the premium HPRC flight case ensures you're ready to hit the field immediately.

  • Batteries Included

    NP style 4-cell batteries (1.5 hours monitoring & recording in 4K)
  • AtomHDR

    10 stops of dynamic range, 1500nit 7" Full HD calibrated monitor
  • Snap-fast HDR Sun Hood

    Strong blockout and magnetic snap-fast design for easy screen access

What's Included

Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
XLR Breakout Cable
Master Caddy II
AC Power Adapter

Reviews

Product Specifications

Shogun Inferno

Weight


Without batteries & media 709g / 25.0oz
With batteries & media 1153g / 40.7oz
Dimensions (W x H x D mm) 214 x 127 x 45mm (8.4 x 5 x 1.8”)
Construction

High quality lightweight ABS Polycarbonate for durability & portability

Built-in armor protection

Power


Operating power 10 - 27W
Compatible batteries NP series and supporting accessories
Input voltage (battery) 6.2V to 16.8V
Battery time (based on 7.4V)

5200mAh - up to 1.5hrs (monitor & record 4K 30p)

7800mAh - up to 2.2hrs (monitor & record 4K 30p)

DC In 1 x DC in (6.2 - 16.8V)
Continuous Power
* Patent pending
Primary-secondary battery system Change batteries without losing power Loop batteries continuously

Touchscreen


Size 7.1”
Resolution 1920 x 1200
PPI 325
Aspect ratio 16:9 native
Color Gamut REC709 HDTV
Look up table (LUT) support 3D LUT (.cube le format)
Anamorphic de-squeeze 2x, 1.5x, 1.33x, Panasonic 8:3
Technology SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

HDR


AtomHDR Yes
Supported Log formats Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C,
Panasonic Vlog, JVC JLog, Red LogFilm
Supported Gamuts Sony SGamut / SGamut3 / SGamut3.cine
Canon Cinema / BT2020 / DCI P3 / DCI P3+
Panasonic V Gamut
Arri Alexa Wide Gamut
Bit depth 10-bit (8+2 FRC)
Brightness 1500nit (+/- 10%)
PQ in/out
In = Post   Out = Monitor
Yes / Yes

Video input /
loop out


HDMI 1 x HDMI (2.0)
SDI Quad link 4 x 3G SDI or up to 12G single link SDI
Signal Uncompressed true 10-bit or 8-bit 422
(camera dependent)

Video output
(play out)


HDMI 1 x HDMI (2.0)
SDI 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G
Signal Uncompressed true 10-bit or 8-bit 422
(playback file dependent)

Supported loop out formats


HDMI to HDMI 720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60
SDI to SDI 720p 50/60, 1080i 50/60
1080pSF 24/25/30
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60

Video signal conversion


HDMI to SDI 720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60
SDI to HDMI 720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60

Supported Codecs & frame rates
(record & playback)


Raw to CDNG (Record only)*

Codecs: Cinema DNG for supported cameras (Sony FS5/FS7 / FS700, Canon C300MKII, C500, Panasonic Varicam RAW*)

Frame rates: 4K DCI / 4K UHD; 24/25/30p
2K / 1080p; 24/SF24/25/SF25/30/SF30/50/60/100/120p

Raw to ProRes / DNxHR

Codecs: Apple ProRes HQ, 422, LT
AVID DNxHR HQX. HQ, SQ, LB

Frame rates: 4K DCI / 4K UHD; 24/25/30/50/60p
2K*** / 1080p; 24/SF24/25/SF25/30/
SF30/50/60/100/120/200/240p

Video to ProRes / DNxHR

Codecs: Apple ProRes HQ, 422, LT
AVID DNxHR HQX. HQ, SQ, LB

Frame rates: 4K DCI / 4K UHD; 24/25/30/50/60p
2K*** / 1080p; 24/SF24/25/SF25/30/
SF30/50/60/100/120/200/240p
1080i; 50/60i
720p; 50/60p

Onboard processing


Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
4K UHD downscale
for HD monitoring
Yes - Loop-out and playback (Not available in RAW)

Audio in/out (48kHz PCM audio)


HDMI 2 or 8ch 24-bit, camera dependent
SDI 12ch 48kHz 24-bit
Audio 2ch balanced XLR analog in/out
Dynamic range >90dB
Max signal level +24dBu
Max analog gain +52dB
48V Phantom Power for Mic

Remote start/stop


HDMI Auto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open Standard
SDI SDI trigger camera selectable
Other LANC control - Slave

Playback


Playlist Yes
Genlock / LTC Yes / Yes
Pre-roll record Yes (HD 8s, 4K 2s)
Custom timelapse Yes
Meta data tagging Yes (10 tags available)
Supported media
(Approved List Only)

4K / HD (50/60/120p*)
SSD 2.5”, HDD (7,200 up to 1080p60)

HD
SSD 2.5”, HDD (5,400 up to 1080p30)

Master caddy case Master Caddy II (included)
75 x 105 x 12mm
Master caddy dock 2.5” SATA to USB 2.0/3.0
Supported applications Supported Applications FCPX/FCP7+ / Media Composer
5.0+ / Premiere 5.5+
EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015
XML support FCPX XML native, FCP7 supported with conversion
(Adobe compatible)
