Lease this for: $119.46 Learn More

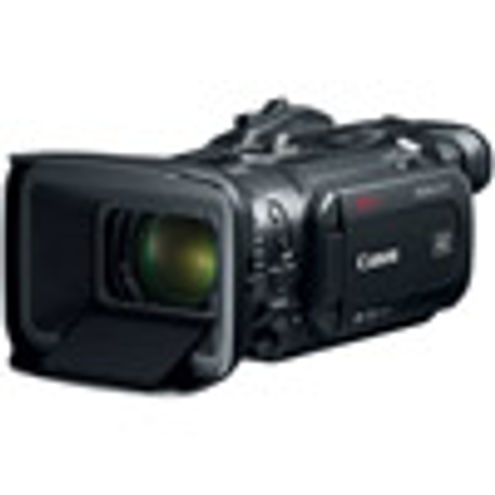

VIXIA HF GX10
The VIXIA GX10 is Canon's first 4K UHD consumer camcorder. Offering an outstanding combination of features and functionality in a compact and portable design, the VIXIA GX10 delivers refined video quality with stunning detail to video enthusiasts and aspiring filmmakers.
Featuring a 1.0-inch 4K UHD CMOS image sensor and dual DIGIC DV 6 Image Processors, the VIXIA GX10 records in MP4 format to dual SD card slots. The camcorder is capable of recording 4K UHD video at 60p. A 15x optical zoom lens maintains 4K UHD quality throughout the entire zoom range, while the camcorder’s Dual Pixel CMOS AF helps facilitate fast and accurate autofocus.
The camcorder includes an HDMI 2.0 terminal with 4K UHD output support, an adjustable 3.5-inch touch panel LCD monitor, a built-in 0.24-inch electronic viewfinder and accessory shoe support, enhancing usability and allowing the VIXIA GX10 to operate in a variety of shooting situations. Whether you are a video enthusiast or aspiring professional, the VIXIA GX10 is equipped to meet your needs.
- 1.0-inch 4K UHD CMOS Image Sensor
- 15x Optical 4K UHD Zoom Lens with 5-Axis Optical Image Stabilization
- Dual DIGIC DV 6 Image Processors
- Dual Pixel CMOS AF
- 4K UHD and Full HD Recording to Dual SD Card Slots
- Slow and Fast Motion Recording up to 120fps
- 3.5-inch Touch Panel LCD and 0.24-inch Electronic Viewfinder
1.0-inch 4K UHD CMOS Image Sensor
The VIXIA GX10 camcorder features a Canon 1.0-inch 4K UHD CMOS image sensor capable of 4K UHD video capture at 60p and slow motion recording up to 120fps in Full HD, making the VIXIA GX10 camcorder a strong contender for professional productions, creative fields and more.
High Sensitivity / Low NoiseThe VIXIA GX10 camcorder's 1.0-inch sensor allows for larger photosites compared to smaller-sized sensors, resulting in improved images with less noise in low-light situations. The larger sensor also exhibits a shallower depth of field at large apertures, providing greater depth of field control and creative options. The camcorder's new DIGIC DV 6 imaging engine further enhances the high sensitivity and low noise performance of the camcorder.
* With Auto Slow Shutter ON and shutter speed at 1/30 sec.
Wide DR Gamma (800%) SupportFor natural and realistic-looking image capture that faithfully represents the scene at hand, Wide DR Gamma achieves a wide dynamic range of 800% to produce almost seamless tone gradations, resulting in smooth detail, accurate color and virtually no blown-out highlights.
15x Optical 4K UHD Zoom Lens with 5-Axis Optical Image Stabilization
The VIXIA GX10 camcorder incorporates a Canon 4K video lens that leverages proprietary Canon optical technologies derived from years of experience in developing Cinema, Broadcast and EF series lenses.
Inspired by the same high level of optical precision used in Canon broadcast and photographic lenses, the VIXIA GX10 camcorder incorporates a Genuine Canon 15x optical zoom lens that maintains 4K UHD quality throughout the entire zoom range, and offers a focal length range of 25.5 to 382.5mm (35mm film equivalent). Users can get up to 30x Advanced Zoom when shooting in Full HD, which utilizes the VIXIA GX10 camcorder's full 4K UHD sensor to extend the zoom range while maintaining image quality.
5-Axis Optical Image StabilizationThe VIXIA GX10 camcorder also incorporates a 5-axis Optical Image Stabilization (IS) system.
The camcorder features three modes of image stabilization: Standard, Dynamic and Powered. In Standard IS mode, the stabilizing angle is made constant independent of the zoom magnification. Dynamic IS mode extends the stabilizing range at the wide end of the focal length, allowing for image stabilization when shooting while walking. Powered IS mode helps facilitate stabilization in the low frequency range at the tele end, and should be used exclusively for fixed-point shooting which does not involve panning.
9-blade IrisFor enhanced versatility and durability, the lens features a 9-blade iris, producing artistic and beautiful out-of-focus areas or "bokeh." The 9 blades allow for attractive circular blurring in out-of-focus regions, while the use of an odd number of blades helps reduce flaring of specular highlights.
ND FilterA compact and independent internal 3-density ND filter, using a turret (circular) mechanism, allows the user to select from three densities (ND 1/4, ND 1/16 and ND 1/64) or turn the feature off if needed. Density can be adjusted using the dedicated external buttons.
Optional Wide and Tele AccessoriesThe optional Wide Attachment WA-U58 and the Tele Converter TL-U58 accessories expand the creative capabilities of the VIXIA GX10 camcorder.
The Wide Attachment WA-U58 offers a 0.8x wider angle of view that enables users to capture more of a scene, especially when indoors or in tight spaces, to lend better perspective to your video narrative. The Tele Converter TL-U58 provides extended 1.5x longer telephoto range for the VIXIA GX10 camcorder's fixed lens, allowing distant subjects to be captured with brilliant clarity.
Dual DIGIC DV 6 Image Processors
The VIXIA GX10 camcorder incorporates Canon's dual DIGIC DV 6 Image Processors, which are integral in providing high image quality, advanced performance and convenient operability. This advanced core technology component provides the image-processing power and speed that enables features such as 4K UHD video acquisition, image stabilization, slow and fast motion recording and precise Dual Pixel CMOS AF.
Dual Pixel CMOS AF
The VIXIA GX10 camcorder features Dual Pixel CMOS AF, Canon's exclusively developed high-speed, high-precision autofocus technology. Dual Pixel CMOS AF assists not only with standard shooting, but also with 4K UHD 60p, Full HD 120p and other high-frame rate applications that require crisp frame-by-frame accuracy.
Each pixel in the camcorder's CMOS sensor is configured with two photodiodes. Two independent image signals can then be detected at each photosite. By implementing phase-difference AF, smooth focusing is accomplished with much higher speed and accuracy than was possible with previous technologies.
Dual Pixel CMOS AF with Touch FocusThe VIXIA GX10 camcorder's 3.5-inch touch panel LCD enables smooth, intuitive operation of Dual Pixel CMOS AF. Accurate AF technology can be employed when shooting a scene by tapping a finger on the desired area of the scene you want the lens to focus on. Dual Pixel CMOS AF offers continuous AF within a horizontal and vertical range of the screen of approximately 80%. It also provides highly accurate Face Detection AF, which assists during single-operator shooting. Users can also use the touch panel to move the autofocus target manually.
Face Detection AFThe Face Detection AF feature has two modes – Face Priority AF and Face Only AF – that offer users precise flexibility in how they choose their autofocus for a subject or scene.
Dual Pixel Focus GuideUtilizing information from Dual Pixel CMOS AF, Dual Pixel Focus Guide helps achieve precise focus by displaying focus assist information on the screen. It employs a truly innovative user interface that enables the user to see if they are focused in front of or behind the subject through visual observation, and allows quick and accurate manual focus to be achieved. This helps simplify the focusing process when shooting in 4K UHD, which requires strict focus accuracy.
4K UHD and Full HD Recording to Dual SD Card Slots
The VIXIA GX10 camcorder offers 4K UHD (3840 x 2160) and Full HD (1920 x 1080) recording in MP4 format at up to 60p. The compact size of the MP4 codec allows the VIXIA GX10 to capture images directly to low-cost SD cards. Support for 4K UHD at 60p allows the VIXIA GX10 to be used in a wide variety of shooting situations.
Dual SD Card Slots
Simultaneous or relay recording in MP4 format to the VIXIA GX10 camcorder's dual SD card slots is possible.
Simultaneous recording allows you to record on both SD cards at the same time, so that you can use one as a backup.
Relay recording allows uninterrupted recording from one card to the other when the first memory card becomes full.
Slow and Fast Motion Recording up to 120fps
The VIXIA GX10 camcorder supports slow and fast motion recording, and can record in a different frame rate from playback for slow and fast motion effects. Slow motion recording of up to 120 fps (x0.2) in Full HD is supported, helping to create an emotionally moving and exciting style of video.
3.5-inch Touch Panel LCD and 0.24-inch Electronic Viewfinder
The VIXIA GX10 camcorder features a 3.5-inch Touch Panel LCD and a newly designed 0.24-inch Electronic Viewfinder (EVF). The Touch Panel LCD and EVF both display approximately 1.56 million dots and provide visual recognition of desired features along with a full array of menu options for controlling camcorder settings. The Touch Panel LCD works with Canon's exclusive AF technologies for easy monitoring and one-finger tap-focusing during shooting and the EVF offers 60° of tilt for more comfortable operation in a variety of positions.
Intuitive Menu DesignThe VIXIA GX10 camcorder features an intuitive menu design for fast and accurate access to desired features. Interactive direct touching and moving from one page to another are also possible by swiping the menu screen.
Assignable ButtonsThe VIXIA GX10 camcorder features 5 assignable buttons, in addition to touch-assignable buttons on the upper part of the LCD panel. Users can set them to the features they need.
HDMI 2.0 Terminal with 4K UHD 60p Output Support
The VIXIA GX10 camcorder features an HDMI 2.0 terminal that supports 4K UHD 60p output. The HDMI 2.0 terminal allows the camcorder to be connected to a standard external SSD/HDD recorder, enabling conversion to ProRes and DNx formats for efficient editing and storage.
Compact and Lightweight Design
The VIXIA GX10 packs all of the ergonomic comfort and capabilities required for a valuable, handheld camcorder into a compact and lightweight body. This makes it useful for a wide variety of applications from professional productions to personal projects.
** Includes lens hood, Battery Pack BP-828 and 1 memory card.
Network Connections for FTP Transfer and Browser Remote (Wi-Fi® Connectivity)
The VIXIA GX10 camcorder offers wireless connectivity to enable recorded files to be shared and transmitted back to the station or home base via FTP for editing or live streaming.
The camcorder can also be accessed remotely from a normal web browser running on a laptop or a compatible smart device to control functions such as record start/stop, AF/MF switching, focus/zoom settings and white balance mode***. Background transfer of MP4 format video files via FTP links is also possible, enabling the latest recordings to be distributed quickly over the Internet.
*** Compatible with iOS® versions 9/10, Android™ smartphone and tablet versions 4.4/5.0/5.1/6.0.
Lens Hood (with Lens Barrier)
Battery Pack BP-828
Power Adapter CA-946
Wireless Controller WL-D89
USB Cable IFC-300PCU
Mini-HDMI Cable HTC-100
|Standard Definition or High Definition||4K Ultra High Definition|
|Power Supply (rated)||7.4V DC (Battery Pack), 8.4V DC (DC IN)|
|Video Recording system||Compression: MPEG-4 AVC/H.264
Color Sampling: 4:2:2 or 4:2:0
File Format: MP4
150 Mbps: 3840x2160 (60p/30p/24p)
35 Mbps: 1920x1080 (60p/30p/24p)
17 Mbps: 1920x1080 (60p/30p/24p)
8 Mbps: 1280x720 (60p)
4 Mbps: 1280x720 (30p)
|Audio Recording system||MPEG-4 AAC-LC (16-bit 2ch), 48 kHz|
|Image Sensor||1.0-inch CMOS|
|Total Pixels||Approx. 13.4 megapixels (4268 x 3148)|
|Effective Pixels||Approx. 8.29 megapixels (3840 x 2160)|
|Maximum recording Time||8GB card
150 Mbps: 5 min.
35 Mbps: 25 min.
17 Mbps: 55 min.
8 Mbps: 120 min.
4 Mbps: 245 min.
Recording will automatically stop when it has continued for 12 hours.
|Lens||Canon 15x Zoom, 8.3-124.5mm (35mm equivalent 25.5–382.5mm), f/2.8-4.5|
|Focusing System||Dual Pixel CMOS AF, Contrast AF
The detection range for CMOS AF is approx. 80% (vertical) x 80% (horizontal) of the entire field of view.
|Max Shutter Speed||1/2000|
|Minimum Focusing Distance||10mm at wide end, 60cm across entire zooming range|
|White Balance||Auto, Preset (Daylight, Tungsten), Color Temperature Settings (2,000–15,000K), Set (1/2)|
|Frame Rate||60p, 30p, 24p|
|Minimum Illumination||P Mode: Approx. 1.7 lux (shutter speed: 1/30 sec., 60p with auto slow shutter on)
Low Light Mode: Approx. 0.1 lux (shutter speed: 1/2 sec.)
|Image Stabilization||Optical system (lens shift) + electronic stabilization
(Image rotation and camcorder movements in the yaw and pitch directions are electronically corrected.)
Modes: Dynamic IS, Powered IS, Standard IS, IS Off
|Viewfinder||0.24-inch TFT wide color LCD, approx. 1.56 million dots, approx. 100% field of view|
|LCD Screen||3.5-inch wide LCD and wide view angle, wide color range supported and AR surface treatment (Approx. 1.56 million dots)|
|Microphone||Stereo (using electret condenser microphone)|
|Recording Media||SD/SDHC/SDXC Card (2 slots): MP4 movies/photos. Menu settings can also be recorded.|
|USB Terminal||mini-B receptacle and Hi-Speed USB supported (output only)|
|Video Terminal||3.5mm stereo mini-jack, HDMI™ mini connector|
|Audio Terminal||3.5mm stereo mini-jack, HDMI™ mini connector, headphone jack|
|HDMI Terminal||HDMI™ mini connector|
|AV Mini Terminal/Headphone Terminal||3.5mm stereo mini-jack|
|Operating Temperature range||
|Dimensions||Approx. 5.3 x 3.8 x 8.4 in. / 135 x 97 x 214mm (excluding lens hood and battery pack)
Approx. 5.9 x 3.8 x 10.5 in. / 150 x 97 x 267mm (including lens hood and Battery Pack BP-828)
All dimensions exclude the grip belt.
Approx. 2.5 lbs. / 1140g (body only)
Grip belt included for all values.
