Product Highlights
  • SD/HD Supported Formats
  • 1x SD/HD/3G-SDI SDI Video Input
  • 1x SD/HD/3G-SDI SDI Video Loop Output
  • 1x HDMI Type A HDMI Video Output
Option:
3G-SDI to HDMI
HDMI to 3G-SDI
Avmatrix MINI SC1112 3G-SDI TO HDMI Pocket Size Broadcast Converter Avmatrix MINI SC1112 3G-SDI TO HDMI Poc...
SAVE $30   $99.99 Add to Cart
Overstock
FREE SHIPPING Available
Web Availability: In Stock
Vistek Locations
  • Toronto In Stock
Please call and verify availability at the store as stock changes daily.

Overview

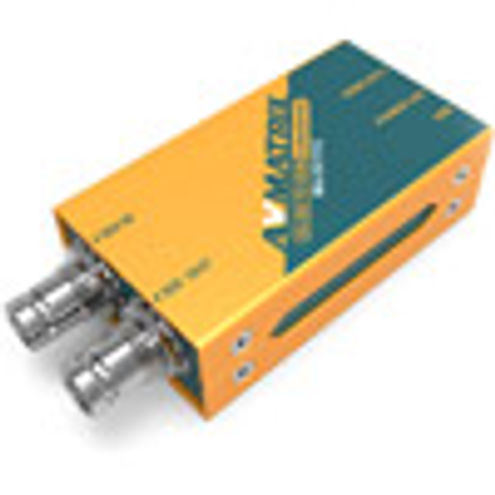

3G-SDI to HDMI Mini Converter

The Mini SC1112 is a Pocket-size broadcast Converter, it converts SDI input signal to HDMI signal and with SDI loop out. it is very convenient for users with the full size SDI and HDMI connectors.

Key Features:

  • 1×3G-SDI input, 1×HDMI output, with 3G-SDI loop output
  • SDI input signal automatic detection and configuration
  • LED indicators for power and state of SDI input signal
  • 3.3-5V Wide voltage

Born for Broadcast

Although it's a pocket-size converter, it is very convenient for users with the full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080P 60Hz. Complying with EMC test, the steady and reliable performance makes it support 7×24h uninterrupted working without any lag or delay.

Powered Anywhere

Featured with universal USB power solution design, avmatrix mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 10,000mAh power bank can supply a more than 24-hour uninterrupted working time.

Pocket Size and Easy to Mount

Miniature design makes it portable for indoors and outdoors. It's possible to put into pocket and take to anywhere. With a convenient and detachable mounting bracket, it is also available in different application scenarios.

Reviews

Product Specifications

SC1112

INPUT


SDI Video Input SD/HD/3G-SDI ×1

OUPUT


SDI Video Loop Output SD/HD/3G-SDI ×1
HDMI Video Output HDMI type A ×1

SDI INPUT FORMATS


SD Format Support 525i 59.94/60
625i 50
HD Format Support 720p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080psf 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
SDI Video Rate SD/HD/3G-SDI
SDI Compliance  SMPTE 292M/SMPTE 259M/SMPTE 424M
SDI Color Space and Precision YUV 4:2:2
SDI Auto Switching Auto selects SD-SDI, HD-SDI and 3G-SDI on input

HDMI OUPUT FORMATS


HDMI Format Support 1080p 23.976/23.98/24/25/29.97/30/50/59.94/60
1080psf 23.976/23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
625i 50
525i 59.94
HDMI Color Space and Precision YUV 4:2:2

POWER


Power Micro USB
Power Consumption 1.5W
Voltage Range 3.3V~5V

SIZE


Dimensions (WxDxH) 74 × 41 × 23mm

ENVIRONMENT


Operating Temperature -20?~60?
Storage Temperature -30?~70?
Relative Humidity 0%~90% non-condensing
