- Webcode: 424465 • Mfr: PT30X-SDI-GY-G2
- FREE SHIPPING Available
Product Highlights
- 2.07MP 1/2.7” CMOS Sensor
- Full HD (1080p) @ 60fps Video Recording
- 3G-SDI, HDMI, 3.5mm Input
- 3G-SDI, HDMI Output
- 30x Optical Zoom
- 2.28° (tele) ~ 60.7° (wide) Angle of View (Horizontal)
- 1.28° (tele) ~ 34.1° (wide) Angle of View (Vertical)

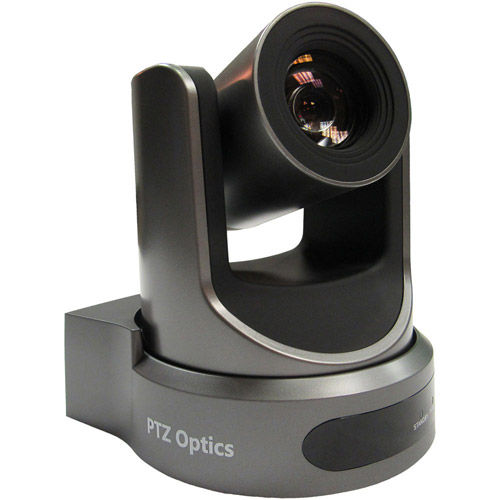

PTZ Optics Video Conferencing Camera 30x SDI G2 Camera, Gray
PTZ Optics Video Conferencing Camera 30x ...
$2,339.00
Add to Cart
FREE SHIPPING Available
Web Availability:
In Stock
Product is In Stock in our Warehouse or in one of our store locations. We will confirm stock is available and process your order. If the available stock is sold before your order is processed, you will receive an email from us.
In-store or Curbside Pick-up
- Available in Toronto
- Call for Availability in Calgary
Vistek Locations
- Toronto In Stock
- Ottawa Available for Order
- Mississauga Available for Order
- Calgary In Stock
- Edmonton Available for Order
Lease this for: $94.96 Learn More
Overview
30X-SDI | SDI PTZ Camera
2nd Generation SDI PTZ Camera Line, now available with 12X, 20X, and 30X optical zoom lenses.
Key Features:
- Wide Dynamic Range: High performance in low light scenarios with
- Noise Reduction: 2D and 3D noise reduction with our latest “low noise CMOS sensor”
- Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
- Broadcast Frame Rates: 1080p59.94/29.97, 1080i59.94, 720p59.94
- Advanced White Balance Modes: Simple One-push & New Kelvin Temperature Scale
- High Definition PTZ Cameras
- Introducing the industry’s most advanced live streaming pan, tilt, and zoom network connected cameras. Built for quality, made for professional video productions.
Build your PTZ Camera System
PTZOptics SDI camera models are some of the most popular PTZ cameras ever made. With game changing optics and high-quality video outputs… video professionals are able to create PTZ camera systems that innovate on multiple levels.
Camera’s that put you in control
In just 10 minutes, see how easy it is to set up this advanced live streaming camera to work with your video production workflow. Using IP or serial connectivity see how you can set up PTZ camera controls to work for you.
What's Included
30X-SDI Gen 2 Live Streaming Broadcast CameraPower Supply
IR Remote Control
RS-232C Cable
Reviews
Product Specifications
SDI 12x/20x/30x |
||
|---|---|---|
| Video Outputs | Video Outputs | (1) Video over Ethernet (1080p@60fps capable) (1) 3G-SDI (up to 1080P@60fps capable) (1) HDMI (up to 1080p@60fps capable)1 (1) CVBS2 USB 2.03 |
| Connectors | (1) 3G-SDI (BNC – 75 Ohm, Female) (1) HDMI v1.3 Type A (Female) (1) 10/100/1000 RJ-45 (1) Non-powered 3.5mm Female Input |
|
| Aspect Ratios | 4:3, 16:9 | |
| Standard Resolutions | PAL, PAL wide, NTSC, NTSC Wide | |
| Output Resolution Range | 480i-30 to 1080p60 | |
| Frame Rate | Up to 60 fps | |
| IP Streaming | Video Bitrate Range: 32 – 20480 kbps Maximum 1080p Frame Rate 60fps Maximum 720p Frame Rate 120fps Audio Bitrate Options: 96K, 129K, 256K AAC Audio Encoding Audio Sample Rate Options: 44.1K, 48K |
|
| Recommended maximum Cable Length for SDI (based on standards) | 300 ft | |
| Recommended maximum Cable Length for HDMI (based on standards) | 45 ft | |
| Recommended maximum Cable Length for Ethernet (based on standards) | 328 ft | |
| Camera and Lens | Video Sensor | Panasonic 1/2.7” CMOS, 2.07 Megapixels |
| Scanning Mode | Progressive | |
| Frame Rates | Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25 Experimental Broadcast Frame Rates: 1080p59.94, 1080i59.94, 1080p29.97, 720p59.94 (Beta) CVBS Only (576i-30, 480i-30) |
|
| Focal Length | 12x Optical, F3.5mm-42.3mm, F1.8-F2.8 20x Optical, F3.5mm-42.3mm, F1.8-F2.8 30x Optical, F3.5mm-42.3mm, F1.8-F2.8 |
|
| Zoom Length | 12X Optical, 20X Optical or 30X Optical | |
| Digital Zoom | 16x | |
| Field of View | 12X Lens – 72.5° 20X Lens – 60.7° 30X Lens – 60.7° |
|
| Min Lux | 0.5 Lux at F1.8, AGC ON | |
| Shutter Speed | 1/30s – 1/10000s | |
| SNR | ≥55dB | |
| Vertical Flip & Mirror | Supported | |
| Horizontal Angle of View | 12X Lens – 6.9° (tele) to 72.5° (wide) 20X Lens – 2.28° (tele) to 60.7° (wide) 30X Lens – 2.28° (tele) to 60.7° (wide) |
|
| Vertical Angle of View | 12X Lens – 3.9° (tele) to 44.8° (wide) 20X Lens – 1.28° (tele) to 34.1° (wide) 30X Lens – 1.28° (tele) to 34.1° (wide) |
|
| Wide Dynamic Range | Supported | |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One Push (ok), Manual | |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction | |
| Audio | Analog audio inputs | Line In, 3.5mm (HDMI & IP Stream Only) |
| Networking | DHCP | Supported |
| Static IP | Supported | |
| Multicast | Supported | |
| Dual Streaming | Supported | |
| 720p120fps | Supported | |
| HTTP Port Number | Default 80 | |
| RTSP Port | Default 554 | |
| PTZ Port | Default 5678 | |
| UDP Port | Default 1259 | |
| Web Management | Supported Guest & Admin Logins |
|
| Camera Control | (1) 8-pin mini din In | RS-232, RS-485, VISCA, PELCO-D/P |
| (1) 8-pin mini din Out (passthrough) | Used to cascade RS-232, RS-485, VISCA, PELCO-D/P controls to next camera in line | |
| (1) RS-485 | 2-pin phoenix port Protocols: VISCA/Pelco-D/Pelco-P |
|
| Baud Rate | 2400/4800/9600 bits | |
| IP | PTZOptics VISCA over IP4 | |
| Recommended maximum cable length for RS-232 | 90 feet (30 meters) | |
| Recommended maximum cable length for RS-485 | 3,600 feet (1,200 meters) | |
| Pan & Tilt Movement | Pan Movement | ±170° |
| Tilt Rotation | Up: 90°, Down: 30° | |
| PTZ Presets | 10 via IR (255 via Serial or IP) 255 presets via Serial or IP |
|
| Horizontal Pan Range | ±170° | |
| Vertical Pan Range | -30° to +90° | |
| Pan Speed Range | 1.7° ~ 100°/s | |
| Tilt Speed Range | 1.7° ~ 69.9°/s | |
| Preset Accuracy | 0.1° | |
| Electrical Index | Power Supply | 12W (Max) |
| Input Voltage | 12V DC (10.8 – 13.0V DC) or PoE 802.3af | |
| Power over Ethernet | Standard PoE supported | |
| Physical Specifications | Dimension (in.) | 5.6W x 6.5H x 6.7D (7.88H max w/ Tilt) |
| Dimensions (mm) | 142W x 164H x 169D (189H max w/ Tilt) | |
| Box Dimensions | 9” x 9” x 10” | 229mm x 254mm x 229mm | |
| Camera Weight | 3.05 lbs. (1.38 kg) | |
| Boxed Weight | 5.4 lbs. (2.45 kg) | |
| Regulatory Compliance | FCC compliance: | FCC 47 CFR Part 15 Subpart B – Class A:2011, ANSI C63.4-2014 |
| CE compliance: | EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017 | |
