- Webcode: 426286 • Mfr: 509646
Product Highlights
- Wireless Microphone System
- 566 - 608 MHz Frequency Range
- 80 - 18 kHz Frequency Response (Transmitter)
- 1.6 m (5') Cable Length
- Headset Microphone
- Cardioid Pickup Pattern
- 3.5mm Jack Connection (Microphone)
- 6.3mm Jack / XLR Connection (Receiver)
- 42 MHz Bandwidth
- 12 V DC Power
- Wireless
- G4 Series Compatible
Sennheiser EW 100 G4-ME3-G Microphone System G4 bodypack, ME 3-II headmic, receiver, rack kit
Sennheiser EW 100 G4-ME3-G Microphone Sys...
$1,049.99
Add to Cart
Web Availability:
Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Overview
EW 100 G4-ME3-A | 516 - 558 MHz

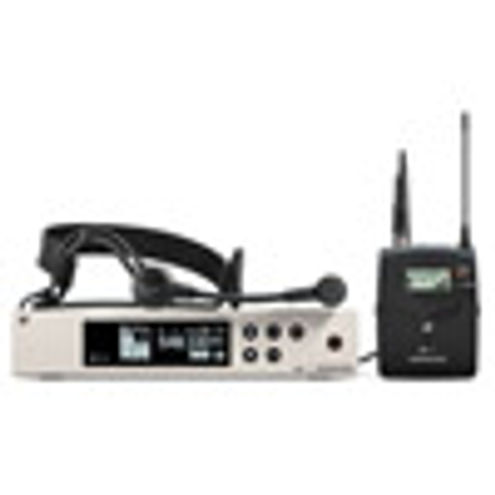

Rugged all-in-one wireless system for presenters and singers. Set consists of 1 SK 100 G4 wireless bodypack, 1 ME 3-II Head Mic, 1 EM 100 G4 rackmout receiver, 1 rack kit and 1 RJ10 linking cable.
Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. For hands-free operation during performances and speeches: Robust bodypack transmitter and feedback resistant headmic ME 3-II with high speech intelligibility for daily use on stage.
Key Features:
- Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
- Robust bodypack transmitter and feedback resistent headmic ME 3-II with high speech intelligibility for daily use on stage
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's Included
EM 100 G4 True Diversity ReceiverSK 100 G4 Bodypack Transmitter
ME 3 Headset Microphone
Rackmount Set
Power Supply
2x AA Batteries
2x Rod Antennas
RJ 10 Cable
Guick Guide
Safety Guide
Manufacturer Declaration Sheet
Frequency Supplement Sheet
Reviews
Product Specifications
EW 100 G4-ME3 |
|
|---|---|
| Frequency range | 1G8: 1785 - 1800 MHz A: 516 - 558 MHz A1: 470 - 516 MHz AS: 520 - 558 MHz B: 626 - 668 MHz C: 734 - 776 MHz D: 780 - 822 MHz E: 823 - 865 MHz G: 566 - 608 MHz GB: 606 - 648 MHz JB: 806 - 810 MHz K+: 925 - 937,5 MHz |
| Dimensions | Approx. 190 x 212 x 43 mm |
| Weight | Approx. 980 g |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ≤ 0.9 % |
| Audio output | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Signal-to-noise ratio | ≥ 110 dBA |
| Switching bandwidth | up to 42 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Modulation | Wideband FM |
| Power supply | 12 V DC |
| Antenna connector | 2 BNC sockets |
| Current consumption | 300 mA |
| Adjacent channel rejection | Typically ≥ 65 dB |
| Intermodulation attenuation | Typically ≥ 65 dB |
| Receiving frequency | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| RF sensitivity | < 2.5 μV for 52 dBA eff S/N |
| Squelch | low: 5 dBµV middle: 15 dBµV high: 25 dBμV |
| Equalizer | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Temperature Range | -10 °C to +55 °C |
| Receiver Principle | True diversity |
| Blocking | ≥ 70 dB |
SK 100 G4 |
|
|---|---|
| Dimensions | Approx. 82 x 64 x 24 mm |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ≤ 0.9 % |
| Weight | (incl. batteries) approx. 160 g |
| Signal-to-noise ratio | ≥ 110 dBA |
| RF output power | Max. 30 mW |
| Switching bandwidth | up to 42 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA |
| Input impedance | 40 kΩ, unbalanced / 1 MΩ |
| Max. Input voltage | 3 Veff |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission frequency | Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| AF frequency response | Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz |
| Temperature Range | -10 °C to +55 °C |
| Frequency stability | ≤ ±15 ppm |
ME 3 |
|
|---|---|
| Connector | 3.5 mm jack |
| Sound pressure level (SPL) | 150 dB SPL |
| Cable length | approx. 1.60 m |
| Transducer principle | pre-polarized condensor microphone |
| Pick-up pattern | cardioid |
| Sensitivity | 1.6 mV/Pa |
| Temperature Range | -10 °C to +55 °C |
