• Webcode: 426338 • Mfr: Z-S7R-2-GHD2
Product Highlights
  • Sony FS7 II camera Compatibility
  • 360° Rotation via FS7 II Trigger Grip
  • 120-250 cd/m² Luminance
  • 10,000:1 Contrast Ratio
  • 5.4 million pixel Micro-OLED Display
  • Designed for optimal balance and comfort
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $205.48 Learn More

Overview

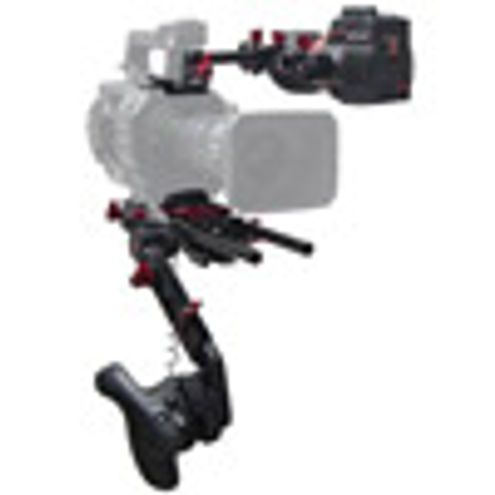

Sony FS7 II Recoil Pro V2

The Sony FS7 II Recoil Pro V2 is a shoulder rig designed specifically for the Sony FS7 II camera. This is a Next Generation Recoil rig designed for optimal balance and comfort when shoulder mounted or on a tripod. With lenses and cameras being similar weights, the balance point is where the lens meets the camera body. In a shoulder mount rig, the balance point needs to be directly over your shoulder which puts the camera behind you. The Recoil rig adjusts for that balance point and relocates focus, monitoring and camera controls forward, creating a lighter, shorter and properly balanced rig.

The Sony FS7 Recoil Pro V2 shoulder-mounted rig includes our VCT Pro baseplate, the FS7 II Trigger Grip to relocate the Sony FS7 II handgrip, a LANC extension cable, and our Axis Mini for Sony FS7.

Includes:

  • VCT Pro – this baseplate has a sliding top plate for quickly removing the camera from the rig or fast lens changes, a built-in, curved shoulder pad, a v-wedge tripod connector (with ¼” 20 and 3/8" 16 screw option). It has removable and extendable 6.5” iris rods and rows of ¼” 20 screw holes along the sides for accessories. It has quick release 15mm rod parts in the rear. The recessed rod mount offers maximum accessory capable space under your camera lens.
  • FS7 II Trigger Grip - the most adjustable handgrip for cameras with a rosette based relocatable grip. It allows for single-handed 360° rotation with the simple press of a trigger. Flip it down for a low, rock-solid handgrip. Raise it up for more of an Aaton style position. Or quickly flip it all the way up to set your camera flat on the ground or for storing in a case. The Rosette ZGrip Trigger attaches to your rig or camera via an M6 Rosette - the industry standard. At the end of the grip is another M6 rosette for the grip from your servo zoom lens or camera.
  • Axis Mini for Sony FS7 - Attaches to the included Sony FS7 Rod Lock to mount either a rosette mounted EVF like the Gratical HD or the Sony monitor itself (Sony 15mm round rod insert required for FS7 II compatibility). Adjustable positioning for shoulder mounted shooting or tripod shooting.

Gratical HD Micro OLED

The Gratical HD Micro OLED electronic viewfinder uses an extremely powerful FPGA dual core processor and the latest Micro-OLED displays to provide a hugely expanded contrast range. Our Micro-OLED display supports high pixel density with unparalleled resolution, true blacks, gamma and contrast range. The Gratical HD has 5.4 million pixels on a 0.61” diagonal screen no bigger than the size of your thumbnail.


The Gratical HD includes two HDMI and two SDI ports with cross conversion from HDMI to SDI. Weather resistant covers prevent moisture or debris from getting in open ports.

You’ll be amazed with how sharp the image is. The internal field of view is just the right size so that the image is large, but not so that your eye has to roam to see the entire image at once. It features a built in -1 to +4 diopter range and Zacuto’s latest anti-fog coating formula. An auto-closing eyecup door prevents sunburn display automatically without any action by the operator.

Mount the Gratical HD to your Next Generation Recoil via the 1/4 20 rosette on the side with an Axis Mini. You can also mount the Gratical HD with the ¼ 20 screw hole in the bottom. Included is the LP-E6 style battery with charger and universal plug adapters.

Video Processing Features:

  • Custom Scaling/User Presets
  • Color Processor - RGB, saturation, brightness, contrast
  • Zebra Stripes - Customize width, color, thresholds
  • Vectorscope
  • Waveform (3D)
  • Histogram (RGB, Luma)
  • Audio Meters
  • LUT import and editing
  • Red Line Peaking (multi-color)
  • False Color
  • Frame Store Feature
  • Test Pattern (color bars & Macbeth)
  • Four programmable buttons
  • Frame Rates - 23.98p, 23.98PsF, 24p, 24PsF, 25p, 25PsF, 29.97PsF, 30 PsF,50i, 50p, 59.94i, 60i, 60p

Connections:

  • HDMI - 1.4b compliant, resolutions up to 1080p/60, loop out
  • HD-SDI - Resolutions up to 1080p/60, loop out
  • Cross Conversion - HDMI to HD-SDI, independent LUT on output stream

Power:

  • Compatible with LP-E6 battery (7.8V 1800mAH LiON)
  • Battery run time ~ 3-4 hours depending on features used

What's Included

FS7 II Trigger Grip
VCT Pro Baseplate
Gratical HD Micro OLED EVF
Axis Mini EVF Mount

Reviews

Product Specifications

Micro OLED Display

Screen Dimension 0.61” diagonal
Resolution Full Display 1280x1024, 16x9 1280x720 HD
Contrast Ratio 10,000:1
Refresh Rate 60 Hz
Colour Depth 24 bit RGB
Luminance 120-250 cd/m²
Pixel Info 2687.21 PPI
Pixels 5.4 million pixels
Colours 16.7 million colours
