Product Highlights
  • 9" LCD Monitor
  • 1280 x 768 Resolution
  • DC 12V, 1.9 A Power
  • 16,770,000 Colours
  • 176° View Angle
Panasonic BT-LH910  9" LCD Field Production Monitor Anton Gold Mount Panasonic BT-LH910 9" LCD Field Product...
FREE SHIPPING Available
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $178.82 Learn More

Overview

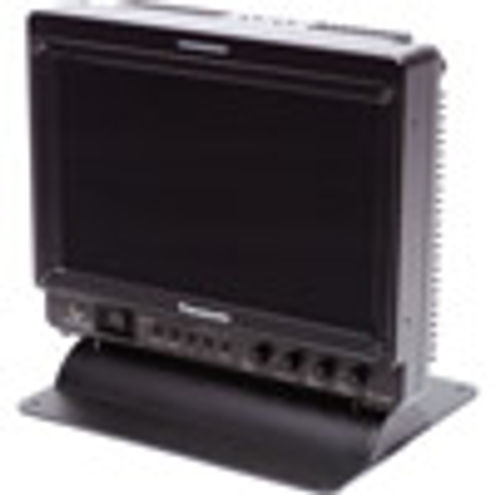

BT-LH910G LCD Production Monitor

The BT-LH910G is a portable, high resolution LCD video monitor with advanced broadcasting functions. Its newly developed 23 cm (9") New IPS LCD panel boasts the best-in-class 1 WXGA (1280 x 768) resolution, high brightness and superb contrast for use in applications that far exceed those of conventional compact monitors. The BT-LH910G also offers extensive display functions, like a RGB WFM, a colour audio level meter and Focus Assist to respond to diverse production and broadcasting needs. Using two SDI input terminals, the BT-LH910G can overlay the left eye and right eye images of a 3D source. Plus its equipped with a variety of 3D Shooting Assist 2 functions.

From outdoor and studio recording to OB van installation and sub-monitor use for live broadcasting, the BT-LH910G meets high-end production and broadcasting needs.


Key Features:

  • Cine-gamma and New Black Mode
  • Audio Level Meter and Headphone Terminal
  • WFM (Y/R/G/B) and Vector Scope Display
  • Focus Assist Functions for HD Shooting
  • Closed Caption and Time Code Display
  • Three Function Keys
  • Versatile Input Terminals, Including 3G-SDI and HDMI
  • Viewfinder Connector

Reviews

Product Specifications

BT-LH910G

General


Power DC 12 V (11.0 V – 17.0 V), 1.9 A
Dimensions 230 mm x 214.5 mm x 170 mm, including stand (9-1/16 inches x 8-7/16 inches x 7-11/16 inches)
230 mm x 183 mm x 78.5 mm, not including stand (9-1/16 inches x 7-13/64 inches x 3-1/16 inches)
Weight 2.4 kg(5.3 lbs), including stand
1.7 kg(3.7 lbs), not including stand
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10 % to 85 % (no condensation)
Storage Temperature –20 °C to 60 °C (–4 °F to 140 °F )

LCD Panel


Panel Size 23 cm (9 inches) of effective display area
Aspect Ratio 15:9
Resolution 1280 x 768 (WXGA)
Display Colours Approx. 16,770,000 colors
Viewing Angle 176° both of horizontal and vertical

Connectors


Video BNC x 1
Y/PsubB/sub/PsubR/sub BNC x 3 (Y shares with Video)
HDMI HDMI (type A) x 1 (HDCP supported, embedded audio supported, VIERA Link not supported)
SDI BNC x 2 (active through connector x 2) SMPTE274M/296M/259M-C/ ITU-R BT.656-4 compliant
Embedded Audio HD-SDI SMPTE299M compliant
Embedded Audio SD-SDI SMPTE272M compliant
VF D-SUB, 15 pins x 1
Headphone Output M3 stereo mini jack x 1
Remote GPI: D-SUB, 9 pin x 1
SERIAL: D-SUB, 9 pin x 1
External DC Power Input XLR, 4 Pin

Others


Supplied Accessories Tilt Stand (built-in), Tilt stand mounting screws (built-in), CD-ROM
Option BT-CS910G VF Cable
