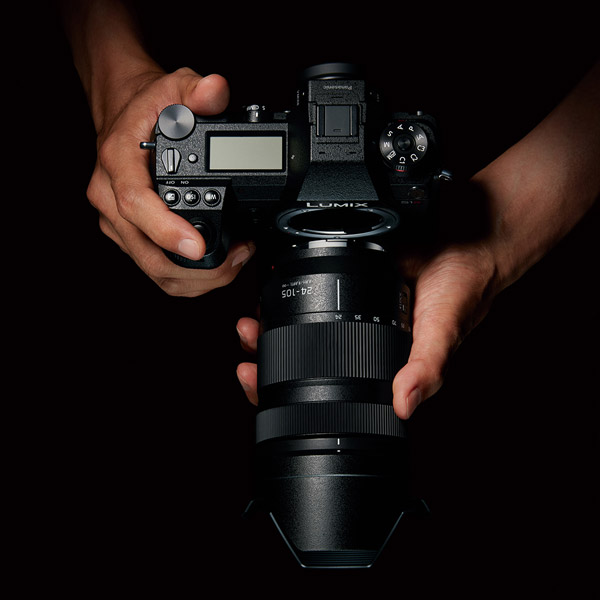

Panasonic Lumix S1
The Lumix S1 is the entry-level model into the new S series of mirrorless cameras. Featuring a 24MP full-frame sensor with dual image stabilization, 4K 60p/50p video recording, dual card slot (XQD and SD). The Lumix S1 is the ideal choice for the hybrid photo/videographer.
The LUMIX S1 comes with a 24.2-megapixel full-frame CMOS sensor (35.6mm x 23.8mm) that provides a wide dynamic range and excellent performance at high sensitivity in addition to a natural yet sharp image description thanks to sufficient light condensation per pixel. The LUMIX S1 supports professional use in videography by taking advantage of the stunning expression performance that a full-frame camera can offer. It records smooth 4K 60p video and enables full-pixel readout of signals in 4K 30p/25p to save truly beautiful footage. Furthermore, the LUMIX S1 will comply with 4:2:2 10-bit 4K 30p/25p internal video recording and 4K 60p HDMI output as well as V-Log, with a software upgrade key (to be sold separately) following soon in 2019.
- Full Frame Sensor – 24.2-megapixel full-frame (35.6mm x 23.8mm) MOS sensor that provides a wide dynamic range and excellent performance at high sensitivity. (ISO 51200 Max sensitivity)
- 4K HDR Video - 4K 60p/50p, 4K 24/30P unlimited recording, 4K60P 29:59 min limited recording. HDR Mode and Hybrid Log Gamma (HLG). V-Log with Internal 4:2:2 10-bit 4k30/24p (4K60p output only) available via optional software upgrade key.
- 96MP Hight Resolution Mode – A sensor shift technology suitable for taking very high-resolution landscapes and fine art photos via tripod with toggleable motion correction capabilities
- LVF and Monitor – 3.2” 2,100K-dot RGBW LCD monitor (3:2 aspect ratio) with triaxial tilt moving element, plus large 5,760k-dot high-resolution OLED eye viewfinder
- Rugged Mirrorless Camera Design – Dust/splash*/freeze-resistant design withstands heavy field use under harsh conditions for high mobility
- LUMIX S Camera Lens – Easy-to-use 24-105mm standard focal macro zoom F4 L-Mount for LUMIX S Series Full-Frame L-Mount digital mirrorless cameras

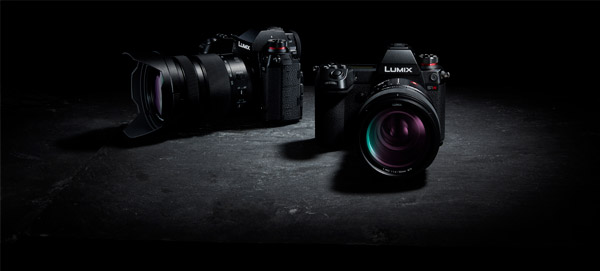

Panasonic's long-awaited first full-frame Digital Single Lens Mirrorless cameras, with a 35mm full-frame CMOS sensor.
The new cameras are based on the L-Mount standard, which boasts a well-balanced, large inner diameter and compact dimensions for a flange focus to realize optimum size and performance as a mirrorless camera system. The LUMIX S Series aims for unprecedented image quality with high resolution, rich gradation and superior colour reproduction. A high-speed, high-precision AF system based on advanced control technology over the lens, the sensor, and the new Venus Engine enable the user to capture the target in sharp focus without fail. The LUMIX S Series also boasts industry-leading video recording performance (4K 60p/50p), intuitive control, a rugged design for heavy field use, durability, and expandability.
Panasonic’s advanced Contrast AF system with DFD technology has evolved through the development of numerous mirrorless cameras to make the AF system of the LUMIX S1R/S1 even more practical. It achieves not only the industry’s fastest level of focusing speed but also a tracking performance that is made possible by the adoption of advanced AI technology that accurately recognizes moving target subjects. The LUMIX S1R/S1 incorporates a Body I.S. (Image Stabilizer) to effectively compensate for the hand-shake movement. Combining the Body I.S.(5-axis) and the O.I.S. (Optical Image Stabilizer, 2-axis) in the LUMIX S Series lenses, the Dual I.S. 2 boasts even more powerful compensates for virtually any types of blur. Equipped with a high-resolution Real View Finder, triaxial tilt rear monitor and high performance shutter unit with high durability, the rugged design LUMIX S1R/S1 provides the professional photographers with high reliability.
Drawing on the vast expertise of the L-Mount Alliance with Leica Camera and Sigma, various interchangeable lenses are available for the LUMIX S Series. On the other hand, the LUMIX PRO service has also launched to support professional work globally.
As a pioneer of the Digital Single Lens Mirrorless camera, Panasonic has pursued innovations in technology under the vision of “Changing Photography.” Crystallizing all these digital and optical technologies, Panasonic is committed to introducing an unparalleled full-frame camera system without compromise for professional photographers and videographers.
High Image Quality
Expand the Breadth of Your Expression
- 24.2 MP
- ISO 100-51200
- Venus Engine
- 6-stop 5-axis Dual I.S.
- Precise 1/8000s 400k Shutter Life
- 96MP High Res Mode
The LUMIX S1 employs a 24.2-megapixel CMOS sensor. The new Venus Engine, which is exclusively tuned for the full-frame camera, and its Multipixel Luminance Generation and Intelligent Detail Processing realize natural, high-resolution expression while suppressing colour moiré. Three-dimensional colour control improves the colour reproduction of both bright and shadow areas. This results in natural, true-to-life images from low to high sensitivity. Taking advantage of sufficient light condensation, the LUMIX S1 boasts a wide dynamic range and reproduces sharp images with exceptional clarity. Noise is minimized even when shot at maximum ISO 51200 high sensitivity. It is an ideal camera to use especially in low-light situations.
The HLG Photo mode is a whole new style of photo expression that Panasonic proposes. It provides a wider dynamic range to reproduce light and shadow with more natural contrast. The HLG Photos can also be produced as an HSP file with compressed high-brightness signals in stunning 8K resolution (7,680 x 4,320 in 16:9, with LUMIX S1R) or its full resolution (5,888 x 3,312, in 16:9, with LUMIX S1) in addition to JPEG/RAW files. It excels in the expression of lights, such as sparkling starlight or glaring sunlight. The user can playback these vibrant images on the latest Panasonic HLG-compliant 4KTV via HDMI cable connection or other HLG-compliant devices. It is also ideal for photo presentations by photographers.
An AR coating applied on the sensor of both LUMIX S1R/S1 minimizes ghost and flare even in backlighting. In combination with the high-quality LUMIX S Series lenses based on the L-Mount, this further enhances the potential of the camera.
Plus, the LUMIX S1R/S1 integrates the Body I.S. (Image Stabilizer) for powerful handshake correction. Panasonic developed an algorithm that precisely calculates shake information acquired not only from a gyrosensor, but also from the image sensor and accelerometer sensor. This enables more accurate shake detection and compensation, making it possible to use a 5.5-stop slower shutter speed. Combining the Body I.S. (5-axis) in the camera and the O.I.S. (Optical Image Stabilizer, 2-axis) in the LUMIX S Series lens, the 5-axis Dual I.S. 2 compensates for larger movements that were conventionally uncontrollable. Maximizing both O.I.S and B.I.S. is highly beneficial in telephoto shots and in adverse situations, such as in low-light or with one-handed shooting with a 6-stop slower shutter speed. The 5-axis Dual I.S. 2 works for both photo and video recording, including 4K. The Body I.S. compensates for camera movement even when other L-Mount lenses without O.I.S. are used.
High-Speed, High-Precision AF System
Fast, Accurate AF Together with Recognition Technology by AI
- 0.08 sec DFDAF
- -6 EV Low Light AF
- -3 EV Low Contrast AF
- Deep Learning Technology
- AFS 9 fps / AFC 6 fps
Panasonic has achieved a high-speed AF with its advanced control technology over the major devices - lens, sensor and imaging engine. The lens and sensor communicate at a maximum 480 fps. Combining the Contrast AF with DFD technology, the LUMIX S1R/S1 realizes an ultra-high-speed, high-precision AF of approximately 0.08 sec. The LUMIX S1R/S1 also boasts high speed burst shooting at 9 fps (AFS) or 6 fps (AFC). With its high subject tracking performance, the LUMIX S1R/S1 never loses the target subject. As a camera that excels in low-light shooting, the LUMIX S1R/S1 boasts -6EV luminance detection performance with Low Light AF thanks to the higher sensitivity and optimized tuning of the sensor. The face/eye detection technology makes it possible to capture people in crisp focus, the Eye AF even detects the pupil of the eye and precisely focuses on it for impressive portrait shooting. The LUMIX S1R/S1 also incorporates advanced AI technology that detects specific subjects - humans and fast-moving animals, including dogs, cats and birds. The camera keeps tracking these subjects even when they turn their back to the camera.

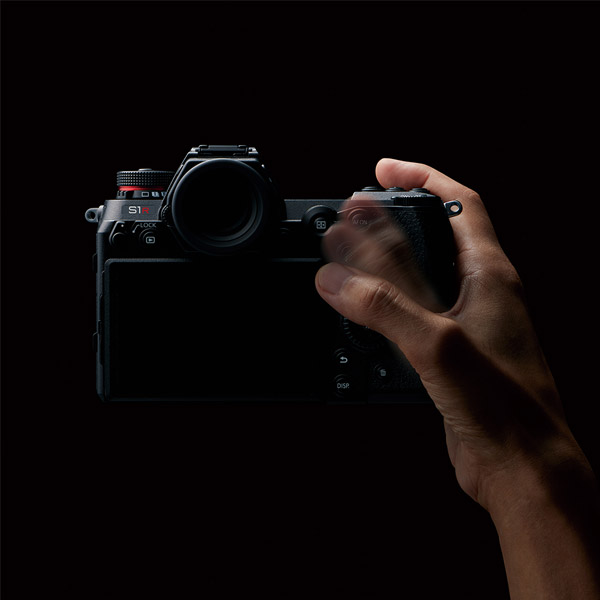

Operability from Ingenuity for Intuitive Control
Intuitive Interfaces for Instant Shooting
- 5,760k Real ViewFinder / 0.005 sec Minimum Time Lag

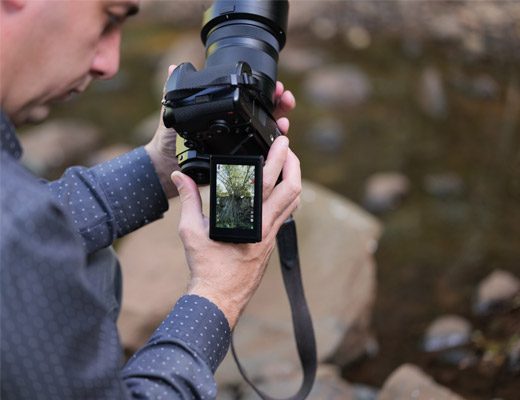

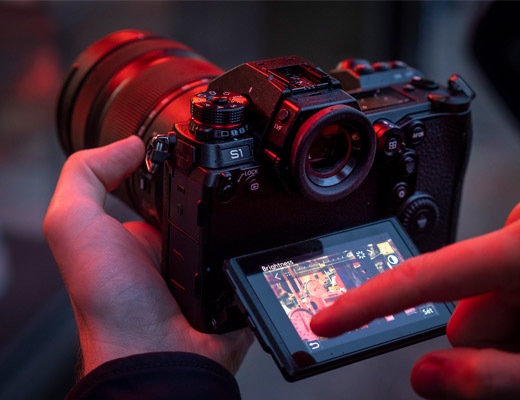

- 2,100k Triaxial Tilt LCD
- Status LCD
- Joystick with 8 Directions
The LVF (Live View Finder) is the key factor for completing the ultra-high-speed response of the camera. The LUMIX S1R/S1 has the largest level of Real View Finder which boasts the world’s highest 5,760k-dot resolution. The 0.78x magnification ratio can be switched to 0.7x or 0.74x according to the shooting situation. Adoption of a high-speed, high-precision OLED (Organic Light-Emitting Diode) for the LVF achieves smooth display at 60 fps/120 fps (switchable) and high-speed response with minimum time lag of less than 0.005 sec as well as 10,000:1 high contrast for exceptional visibility. With minimum distortion and high optical performance, this Real View Finder provides a natural view as seen with the naked eye. It is always sharp and clear from the center all the way to the corners.

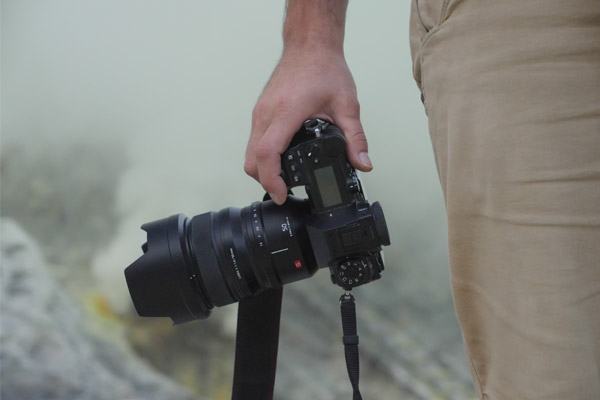

Rugged Design, Reliability and Expandability
Durable & Dependable
- Dust & splash Resistant Down to -10ºC
- Magnesium Alloy Body
- Heat-Dispersing Design
- XQD/SD Double Card Slot
- USB-PD Power Supply
To be tough enough to withstand heavy field use, the main structure is composed of a magnesium alloy full die-cast front/rear frame. Robust construction and a sealing for every joint, dial, and button make the LUMIX S1R/S1 not only splash resistant and dust resistant, but also freeze resistant down to -10 degrees Centigrade. The shutter unit is also durable for approximately 400,000 cycles.
The LUMIX S1R/S1 is equipped with a double memory card slot compatible with SD (UHS-II) or XQD memory cards for high-speed, high-capacity continuous data recording. Users can flexibly choose the recording method from Relay Recording, Backup Recording or Allocation Recording using the double slots. It will also be compatible with CFexpress in the near future. The 7.4-V 3,050 mAh high-capacity battery can be quickly charged via USB PD (USB Power Delivery) using the bundled USB3.1 Type-C cable. And it also realizes high-speed data transfer.
A variety of new accessories are available for the LUMIX S1R/S1, including Remote Shutter (DMW-RS2), Eyecup (DMW-EC6), Battery Grip (DMW-BGS1) and Battery Charger (DMW-BTC14). The Battery Charger also complies with USB PD and enables quick power charging in approximately 2 hours. The camera can be used while charging via this adaptor. The conventional External Flash (DMW-FL580L / FL360L / FL200L) can also be mounted on the LUMIX S Series cameras.
Outstanding Video Recording Performance in a Full-Frame Camera
Exceptional video recording performance for professional videographers
- (Optional) 4:2:2 10-bit Internal Rec & HDMI Output
- 4K 60 fps Full HD 180 fps
- HDR Video
- DMW-XLR1 (Sold Separately)
The LUMIX S1 features outstanding video performance for professional videography with 4K 60p recording. It realizes a crop factor of 1.0x in 4K 30p/25p/24p, which means that the user can record video in the original viewing angle of the lens. There is no recording time limit for both 4K 30p/25p/24p and Full-HD video. Notably, the CMOS Sensor with high sensitivity on the LUMIX S1 achieves full-pixel readout for an excellent S/N ratio. The HDR (High Dynamic Range) video recording is available, which reproduces both the bright parts and dark parts of an image, making it look just like human eyes see it. The camera records video with a designated gamma curve compatible with ITU-R BT.2100, and you can now choose Hybrid Log Gamma (HLG) in Photo Style. The LUMIX S1 further expands its potential with a firmware update including 4:2:2 10-bit 4K 30p internal video recording and 4K 60p/50p HDMI output as well as V-Log, with a Software Upgrade Key (to be sold separately) following soon in 2019.
Photo Style Featuring a New Flat Mode
To shorten post-processing work, JPEG photos can be adjusted precisely according to the photographer’s intention. The LUMIX S1R/S1 also provides a Flat mode that features a plain finish with less contrast and saturation for versatile use.
Variable Aspect Ratios With New 65:24 and 2:1
In addition to the standard 3:2, 4:3, 16:9 and 1:1, 65:24 (Film Panorama) and 2:1 (6 x 12 cm) aspect ratios are available for photo shooting.
I.S. Status Scope
The user can consciously remove the cause of shake by checking a pointer that indicates the camera’s shaking condition. It is available while the viewfinder or rear monitor blacks out even during a long-time exposure.
When the flickering of a fluorescent light is detected, the camera indicates it and releases the shutter when its effect is the least to suppress the discontinuity of exposure or colour across a sequence of photos.
*Not available in 6K PHOTO, 4K PHOTO and Post Focus.
Highlight Weighted Light Metering Mode
The Highlight Weighted Light Metering Mode meters light with the priority on highlighted parts, to prevent it from washing out.
New AWBw Auto White Balance Mode
In Auto White Balance, a new AWBw that retains a reddish tint is available in addition to conventional AWB (standard) and AWBc (bluish tint). AWBw reproduces healthy, rosy skin colour even under fluorescent light.
Bluetooth 4.2 and Wi-Fi 5GHz (IEEE802.11ac) / 2.4GHz (IEEE802.11b/g/n)
Compatibility with Bluetooth 4.2 (called BLE: Bluetooth Low Energy) enables constant connection with a smartphone/tablet with minimum power consumption. The settings of a LUMIX S1R/S1 camera can also be copied and transmitted wirelessly to other S1R/S1 cameras when using multiple S1R/S1 cameras. Also, Wi-Fi 5GHz (IEEE802.11ac) is effective in addition to 2.4GHz (IEEE802.11b/g/n.) This provides even secure and stable connection not only with a smartphone/tablet but also with other devices on location for smooth remote control. Transmission speed of photo/video data is also increased up by using the 5GHz-band.
This software enables tethered shooting via USB. Users can control the camera by connecting it to a PC via USB. It lets you view the image on a large PC screen while shooting, which is helpful in commercial photoshoots of portraits, products and more, where continuous confirmation is required. You can use [6K PHOTO] [4K PHOTO] and start and stop video recording with tethered shooting. It is also possible to choose the folder to save the image files in the PC.
Lumix Sync is a new application for iOS/Android devices, which enables photo transmission to a smartphone or tablet via easy wireless connection. It also allows remote control of the camera using a smartphone or tablet.
Lumix S 24-105mm F4 Macro O.I.S.
Standard lens covering from wide-angle to medium-telephoto shots as well as close-ups
- 480 fps AF control linear motor
- 2 ASPH ED / 2 ASPH / 1 UED / 3 ED
- Beautiful bokeh
- 4K Video support
- Splash/Dust/Freeze Resistance
Superb image quality over the entire zoom range
Superior MTF from the center to the edges
Maximum magnification 0.5x & closest focusing distance 0.3m
6-stop 5-axis dual I.S. 2
Highly effective optical image stabilization even in telephoto range
What's IncludedLUMIX DC-S1 Full-Frame Mirrorless Camera Body
Hot Shoe Cover
Flash Synchro Socket Cap
Cover for the Battery Grip Connector
AC Mains Lead
2x USB Connection Cables (C-C/A-C)
Lumix S 24-105mm f/4 Macro O.I.S. Lens
Front Lens Cap
Rear Lens Cap
|Type||Digital Single Lens Mirrorless camera|
|Recording media||XQD Memory Card, SD Memory Card / SDHC Memory Card* / SDXC Memory Card*|
|Recording media||*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.|
|Type||35mm full-frame (35.6mm x 23.8mm) CMOS sensor|
|Camera effective pixels / Total pixels||24.20 megapixels / 25.28 megapixels|
|Aspect ratio / Colour filter||3:2 / Primary colour filter|
|Dust reduction system||Supersonic wave filter|
|Recording File Format||Still image
JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
6K PHOTO** / 4K PHOTO**
6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
6K PHOTO** / 4K PHOTO**
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
6K PHOTO** / 4K PHOTO**
Extracted still images: JPEG (DCF, Exif 2.31)
|Aspect Ratio||4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1|
|File size(Pixels)||When using full-frame lenses / 3:2 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* *High Resolution Mode. RAW file.
When using full-frame lenses / 3:2 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
When using full-frame lenses / 4:3 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* *High Resolution Mode. RAW file.
When using full-frame lenses / 4:3 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
When using full-frame lenses / 16:9 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* *High Resolution Mode. RAW file.
When using full-frame lenses / 16:9 3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
When using full-frame lenses / 1:1 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* *High Resolution Mode. RAW file.
When using full-frame lenses / 1:1 2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
When using full-frame lenses / 65:24 6000x2208(L)
When using full-frame lenses / 2:1 6000x3000(L)
When using APS-C lenses / 3:2 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
When using APS-C lenses / 4:3 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
When using APS-C lenses / 16:9 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
When using APS-C lenses / 1:1 2656x2656(L) / 1920x1920(M) / 1376x1376(S)
|Image quality||RAW / RAW+Fine / RAW+Standard / Fine / Standard|
|Colour Space||sRGB, AdobeRGB|
|Recording file format||MP4: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch)), MP4 HEVC: H.265/HEVC (Audio format: AAC (2ch))|
|Recording file format||AVCHD Progressive (Audio format: Dolby Audio (2ch)), AVCHD (Audio format: Dolby Audio (2ch))|
|MP4** [4K] 3840x2160||59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)|
|MP4** [4K] 3840x2160||50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)|
|MP4** [4K] 3840x2160||29.97p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)|
|MP4** [4K] 3840x2160||25.00p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)|
|MP4** [4K] 3840x2160||23.98p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)|
|MP4** [FHD] 1920x1080||59.94p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)|
|MP4** [FHD] 1920x1080||50.00p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)|
|MP4** [FHD] 1920x1080||29.97p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)|
|MP4** [FHD] 1920x1080||25.00p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)|
|MP4 HEVC** [4K] 3840x2160||29.97p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording)|
|MP4 HEVC** [4K] 3840x2160||25.00p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording)|
|MP4 HEVC** [4K] 3840x2160||23.98p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording)|
|AVCHD Progressive** AVCHD** [FHD] 1920x1080||50.00p, 28Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)|
|AVCHD Progressive** AVCHD** [FHD] 1920x1080||50.00i, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 25.00fps)|
|AVCHD Progressive** AVCHD** [FHD] 1920x1080||50.00i, 17Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 50.00fps)|
|AVCHD Progressive** AVCHD** [FHD] 1920x1080||23.98p, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)|
|MP4** High speed video *When Creative Video Mode is selected. [4K] 3840x2160||29.97p (Sensor output is 60fps)|
|MP4** High speed video *When Creative Video Mode is selected. [4K] 3840x2160||25.00p (Sensor output is 50fps)|
|MP4** High speed video *When Creative Video Mode is selected. [4K] 3840x2160||23.98p (Sensor output is 48fps)|
|MP4** High speed video *When Creative Video Mode is selected. [FHD] 1920x1080||29.97p (Sensor output is 180fps / 150fps)|
|MP4** High speed video *When Creative Video Mode is selected. [FHD] 1920x1080||25.00p (Sensor output is 150fps / 125fps)|
|Continuous recordable time (Motion picture)**||Approx. 150 min (rear monitor), 140 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.|
|Actual recordable time (Motion picture)**||Approx. 75 min (rear monitor), 70 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.|
|Type||OLED Live View Finder|
|Pixels||Approx. 5,760k dots|
|Field of view / Magnification||Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2|
|Eye point / Diopter adjustment||Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)|
|Display speed||120fps / 60fps|
|Display time lag||Approx. 0.005sec|
|Type||TFT LCD monitor with static touch control|
|Monitor size||Triaxial tilt, 3.2-inch (8.0cm), 3:2 aspect|
|Pixels||Approx. 2,100k dots|
|Field of view||Approx. 100%|
|Type||Contrast AF system|
|Focus mode||AFS (Single) / AFC (Continuous) / MF|
|AF mode||Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3 (Full area touch is available) (Scalable AF frame size and flexible AF position)|
|AF detective range||EV -6 - 18 (F1.4, ISO100 equivalent, AFS)|
|AF custom setting||AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction|
|AF assist lamp||Yes|
|AF lock||Set the Fn button in custom menu to AF lock|
|Post Focus / Focus Stacking||Yes / Yes|
|Others||AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode|
|Light metering system||1,728-zone multi-pattern sensing system|
|Light metering mode||Multiple / Center Weighted / Spot / Highlight Weighted|
|Metering range||EV0-18 (F2.0 lens, ISO100 equivalent)|
|Exposure mode||Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure|
|ISO sensitivity (Standard Output Sensitivity)||Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO|
|Exposure compensation||1/3 EV step ±5EV (±3EV for motion picture)|
|AE lock||Set the Fn button in custom menu to AE lock|
Image Stabilization System
|Image Stabilization System||Image sensor shift type (5-axis / 5.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]
Dual I.S. (6.0-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-R70200 is used.]
|White balance||AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4|
|White balance adjustment||Blue/Amber bias, Magenta/Green bias|
|Colour temperature setting||2500-10000K in 100K|
|Shutter speed||Still image: Bulb (Max. 30 minutes), 1/8,000 - 60|
|Shutter speed||Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60|
|Shutter speed||Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60|
|Shutter speed||Motion picture: 1/16,000 - 1/25|
|Shutter life||Approx. 400,000 images|
|Self timer||10sec, 3 images / 2sec / 10sec|
|Remote control||Remote control by DMW-RS2 (sold separately)|
|Silent mode / Shutter type||Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)|
|AE bracket||3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst|
|Aperture Bracket||3, 5 or all positions in 1 EV step|
|Focus Bracket||1 to 999 images, focus steps can be set in 10 levels|
|White balance bracket||3 images in blue/amber axis or in magenta/green axis, colour temperature setting|
|Burst speed -Mechanical shutter / Electronic front curtain shutter||AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)|
|Burst speed -Mechanical shutter / Electronic front curtain shutter||AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)|
|Burst speed -Electronic shutter||AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)|
|Burst speed -Electronic shutter||AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)|
|Number of recordable images||RAW: More than 90 images|
|Number of recordable images||RAW+JPEG: More than 70 images|
|Number of recordable images||JPEG: More than 999 images|
|Number of recordable images||*Using a Sony Corporation XQD G Series Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.|
6K Photo** / 4K Photo**
|Burst speed||6K PHOTO: 30 frames/sec|
|Burst speed||4K PHOTO: 60 frames/sec, 30 frames/sec|
|Exif information||Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)|
|Flash type||TTL External Flash (sold separately)|
|Flash Mode||Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.|
|Flash synchronization||1st Curtain Sync, 2nd Curtain Sync.|
|Flash output adjustment||1/3EV step ±3EV|
|Synchronization speed||Less than 1/320 second *The guide number decreases at 1/320 second. Only when set to M mode or S mode.|
|Wireless control||Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch|
|Flash sync socket||Yes|
Extra Tele Conversion
|Extra Tele Conversion||2.0x (EX S), 1.4x (EX M) *Only for still image recording.|
|Photo Style||Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / Like709 / Standard (HLG) / Monochrome (HLG) / Like2100 / My Photo Style 1-10|
|Picture adjustment||Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / ISO / WB *Adjustable settings vary depending on the Photo Style mode.|
|Filter||Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Colour / Sunshine* *For photos only.|
|REC||Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode/MF / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity /|
|REC||1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Sound Rec Level Disp. / Sound Rec Level Adj. / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Q.MENU / Rec / Playback Switch / Video Record /|
|REC||LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Constant Preview / Level Gauge / Histogram / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Restore to Default|
|PLAY||Magnify from AF Point / HLG View Assist(Monitor) / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Restore to Default|
|Fn LEVER||AF Mode / Photo Style / Picture Quality / Long Exposure NR / Focus Peaking / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / 6K/4K PHOTO (Pre-Burst) / Focus Ring Lock / Touch Screen / Touch Pad AF / Auto Review (Photo) / Live View Boost / Night Mode / Sheer Overlay / Front/Rear/Control Dial Lock / No Setting / Restore to Default|
|OSD Language||Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek, Russian|
|USB||SuperSpeed USB 3.1 Gen1 Type-C|
|HDMI*** Monitor-through||4:2:2 8bit (Except for [4K/60p]/[4K/50p]) / 4:2:0 8bit|
|HDMI*** Playback||HDMI TypeA / VIERA Link|
|HDMI*** Playback||Video: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p|
|HDMI*** Playback||Audio: Stereo|
|Audio video output||No|
|External microphone / external audio device input||φ3.5mm for external microphone / external audio device|
|External microphone / external audio device input||MIC (Plug-in Power) / MIC / LINE is selectable.|
|External microphone / external audio device input||Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).|
|Microphone||Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).|
|Card slot||Slot 1: XQD Memory Card|
|Card slot||Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card*|
|Card slot||*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.|
|Wi-Fi||2.4GHz (STA/AP) (IEEE802.11b/g/n)|
|Wi-Fi||5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.|
|Wi-Fi||1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch|
|Bluetooth||Bluetooth® v4.2 (Bluetooth Low Energy (BLE))|
Dust and Splash Resistant
|Dust and Splash Resistant||Yes.
* Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
|Battery||Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)|
|Battery||USB power supply, USB power charging|
|Battery life (CIPA standard)/ When using XQD memory card||Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105|
|Battery life (CIPA standard)/ When using XQD memory card||*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.|
|Battery life (CIPA standard)/ When using SD memory card||Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105|
|Battery life (CIPA standard)/ When using SD memory card||*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.|
|Battery grip||DMW-BGS1 (sold separately)|
|Dimensions (W x H x D)||Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions)|
|Weight||Approx. 899g (1.98 lbs)
* Body only
Approx. 1,017g (2.24 lbs)
* SD Memory Card x 1, Battery, Body
Approx. 1,021g (2.25 lbs)
* XQD Memory Card x 1, Battery, Body
|Operating temperature****||-10oC to 40oC (14oF to 104oF)|
|Operating humidity||10%RH to 80％RH|
Questions & Answers
Panasonic Lumix DC-S1 Mirrorless Kit w/ Lumix S 24-105mm f/4.0 Macro OIS L-Mount Lens
Looking for a personal touch? Not sure if you are choosing the right product? Our staff is here to help.
We want to make sure you get the right product for your needs.
Our staff will help you understand the options available so you can be confident in your purchase.
As the country’s leading Professional Imaging retailer, Vistek is in the perfect position to ensure you make the right choice.
Contact us today for a personal touch.
