Product Highlights
  • 7" LCD Field Monitor
  • 1920 x 1200 Resolution
  • 1500 nits Brightness
  • DCI-P3 Colour
  • 3G-SDI/HDMI/Audio Input
  • 3G-SDI/HDMI/Audio Output
  • SD Card Storage
Small HD 702  Monitor 7-inch Daylight Viewable On-Camera Monitor with DCI-P3 Color Small HD 702 Monitor 7-inch Daylight V...
FREE SHIPPING Available
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $83.19 Learn More

Overview

702 Touch

Ruggedly built SDI/HDMI touchscreen with 1500 nits brightness.

The 702 Touch is a Cinematographer's best friend. With a ruggedly built frame, highly visible display, plenty of signal and power options, and world-class software tools, this 7-inch on-camera monitor will make any 1st AC or Director of Photography smile.

Key Features:

  • 7" 1920x1200p IPS LCD Display
  • 1500 nits Brightness
  • 1x HDMI In, 1x HDMI Out
  • 1x 3G SDI In, 1x 3G SDI In/Out
  • ⅛” Headphone Jack
  • Barrel Power Input (10V-34V, 2A DC), Sony L Series Battery Bracket
  • Milled aluminum unibody (space gray)

7-inch Daylight Viewable On-Camera Monitor with DCI-P3 Colour

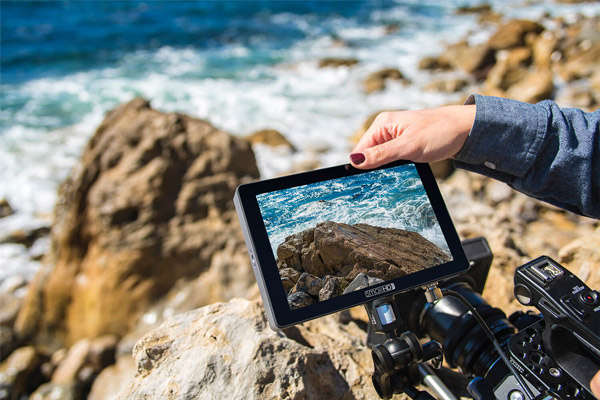

The 702 Touch is an absolute workhorse monitor for full-time creative professionals. It’s extremely durable without adding bulk, it’s daylight viewable without consuming enormous amounts of power, and it’s 100% DCI-P3 color accurate. With flexible signal options and world-class software tools, the 702 Touch offers ultimate versatility.

Simply Stunning Display

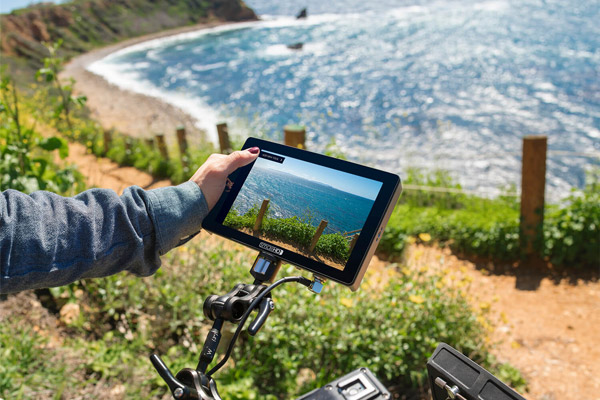

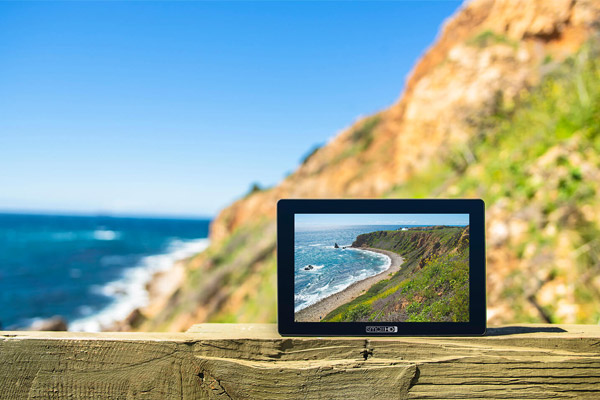

The 702 Touch is the perfect blend of brightness, resolution, color reproduction, and power efficiency. Whether in studio or in full sun, the image on this 7-inch touchscreen monitor is simply beautiful.

The 702 Touch on-camera monitor combines reliability with useability.

Flexible Signal and Power Options

With two 3G SDI inputs, HDMI/SDI cross-conversion, DC power input, and Sony L Series battery bracket (Gold and V-Mount available), the 702 Touch is adaptable to any workflow, large and small.

What's Included

702 Touch On-Camera Monitor
SD Memory Card (8GB)
Ultra Clear Screen Protector
SmallHD Cleaning Cloth

Reviews

Product Specifications

702 Touch

Display


Panel Type IPS LCD
Size Diagonal 7.02
Resolution 1920x1200
Pixel Density (PPI) 322
Aspect Ratio 16:10
Active Area 5.95 x 3.72
Brightness 1500 Nits
Contrast 1000:1
Color Gamut 100% DCI-P3 Coverage
Color Depth 8-b Panel with 8-b Scopes
Viewing Angle 8-b Panel with 10-b Scopes
Backlight Type LED
Adjustable Backlight Yes

Input Signal Types/Formats


3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal Types/Formats


3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type


SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Power In Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB 1x USB 2.0 Micro-B receptacle

Controls


Primary Control Interface Touch Screen
Record/Capture Capture Tool

Power


Connector Type Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
Voltage DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Consumption 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
Battery Plate Included L-Series standard (V Mount or Gold Mount optional accessories)
Recommended Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Overload Protection DC input: Reverse polarity
Battery Types L-Series, V Mount, Gold Mount
Battery Chemistry Li-ion
Battery Charging Time (hours) Monitor does not support the charging of batteries

Environmental


Compliance FCC, IC, CE, RoHS
Operating Temperature 30F to 100F
Storage Temperature 0F to 120F
Height 4.67" (11.86cm)
Width 1.32" (3.35cm)
Depth/Length 7.09" (18.01cm)
Weight (Item Only without battery) 18.9oz (535.81g)
Weight (Packaged) 26oz (737.09g)
Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)

Software


Pixel Zoom (type) 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate(Manual/Automatic) Automatic or Manual Control
Image Flip (Manual/Automatic) Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors) User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual - User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Image Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel
