• Webcode: 433650 • Mfr: CQ893C#B1K
Product Highlights
  • 36" Max. Print Width
  • 2400 x 1200 dpi Max. Resolution
  • DesignJet 711 Ink System
  • 70 prints/hr Print Speed
  • USB 2.0 & Wi-Fi Connectivity

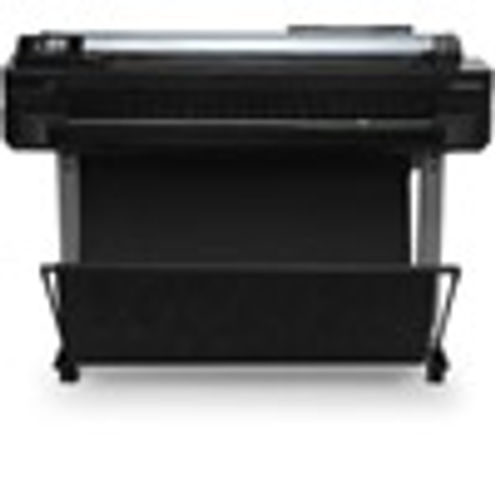

HP DesignJet T520 36-in Printer HP DesignJet T520 36-in Printer
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $156.99 Learn More

Overview

Designed to fit your office - and the way you work.

This compact printer makes it easy to print architectural designs, maps, photos, and presentations with sharp detail up to 2400 dpi. Print easily from a smartphone or tablet with HP Mobile Printing.

Key Features:

  • Print
  • Input tray: A4, A3; manual feed: A2, A1, A0
  • Fast Ethernet (100Base-T); Hi-Speed USB 2.0 certified; Wi-Fi
  • One-year limited hardware warranty

Office-Ready

Fits the way you work

Compact, standalone printer with legs and a stand—for easy office placement and positioning. The professional look and feel of this printer is designed to complement your workplace. Produce a range of applications including architectural designs, maps, photos, and presentations. Take advantage of the most affordable, compact 36-inch HP DesignJet Printer.

Easy

Convenient printing

Easily print project sets and PDF documents with HP Click printing software. Move this printer any time, any place—with Wi-Fi connectivity, all you need is a power plug. The intuitive, full-color touchscreen simplifies navigation and printing. Produce A1/D prints in 35 seconds—this printer also provides original HP-GL/2 compatibility.

Trusted

HP DesignJet quality and reliability

Get HP DesignJet quality in small-format sizes—print half-size technical documents with the A4/A3 input tray. Achieve precise lines with sharp detail up to 2400 dpi. Join the hundreds of thousands of users who trust HP DesignJet T520 Printers for outstanding print quality. Flexibility for today and tomorrow—print easily from your smartphone or tablet with HP Mobile Printing.

What's Included

DesignJet T520 36-in Printer
Printhead
Introductory ink cartridges
Printer stand
Power cord
Startup software
Quick reference guide
Setup poster

Reviews

Product Specifications

DesignJet T520 36-in Printer

Guaranteed minimum line width 0.07 mm (ISO/IEC 13660:2001(E))
Guaranteed minimum line width footnote Measured on HP Matte Film
Theoretical minimum line width 0.0008 in (0.02 mm) (HP-GL/2 addressable)
Guaranteed minimum line width 0.0028 in (ISO/IEC 13660:2001(E))
Guaranteed minimum line width footnote Measured on HP Matte Film
Sheet feed maximum output 1890 mm
Sheet feed maximum output 74.7 in
Printer drivers included Raster driver for macOS and Windows
Print languages HP-GL/2, HP-RTL, JPEG, CALS G4
Printing path Windows and Mac printer drivers, Apple AirPrint, HP Print Service Plugin for Android, HP Print for Chrome for Chrome OS
Print technology HP Thermal Inkjet
Functions Print
Model size 24 and 36 in (610 and 914 mm)
Internal Storage None
Line accuracy ±0.1%
Line accuracy note ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.

Print Area


Non-printable area (cut-sheet) 5 x 5 x 5 x 5 mm
Non-printable area (cut-sheet) 0.2 x 0.2 x 0.2 x 0.2 in
Non-printable area (roll media) 5 x 5 x 5 x 5 mm
Non-printable area (roll media) 0.2 x 0.2 x 0.2 x 0.2 in

Print Time


Print time black and white line drawing (draft, metric A1 plain paper) 35 sec/page
Print time black and white line drawing (draft, US D plain paper) 35 sec/page
Print time color line drawing (draft, D) 35 sec/page
Print time color line drawing (draft, A1) 35 sec/page
Print time line drawing (economode, A1 plain paper) 35 sec/page
Print time line drawing (economode, D plain paper) 35 sec/page
Printing Media Handling
Finished output handling Sheet feed
roll feed
input tray
media bin
automatic cutter

Printing Media


Media sizes standard (metric rolls) 210 to 914-mm wide sheets
279 to 914-mm rolls
Media sizes standard (sheets, rolls) 8.3 to 36-in wide sheets
11 to 36-in rolls
Roll maximum output 45.7 m
Roll maximum output 150 ft
Roll external diameter 3.9 in (100 mm)
Roll maximum input 1
Roll maximum weight 6.2 kg
Roll maximum weight 13.6 lb
Media thickness Up to 11.8 mil
Media width, maximum 36 in
Supported Primary Applications Line drawings
Renderings
Presentations
Secondary Applications Posters
Office Graphics

Supported Printing Media


Media sizes, custom Input tray: 210 x 279 to 330 x 482 mm
manual feed: 330 x 482 to 914 x 1897 mm
roll: 279 to 914 mm
Media sizes supported Input tray: A4, A3
manual feed: A2, A1, A0
Media sizes supported Input tray: A, B
manual feed: C, D, E
Media types Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended 60 to 280 g/m² (roll/manual feed)
60 to 220 g/m² (input tray)
Media width, maximum 914 mm

Print Resolution


Maximum optical density (black) 8 L* min/2.10 D
Print quality black (best) Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected
Print quality color (best) Up to 2400 x 1200 optimized dpi
Maximum optical density footnote (black) With HP Premium Instant Dry Photo Gloss media with Original HP inks.

Print Speed


Print speed black line drawing (draft, A1 plain paper) 70 A1 prints per hour
Print speed black line drawing (draft, US D plain paper) 70 D prints per hour
Print speed color line drawing (draft, A1 plain paper) 70 A1 prints per hour
Print speed color line drawing (draft, US D plain paper) 70 D prints per hour
Print speed line drawing (economode, A1 plain paper) 70 A1 prints per hour
Print speed line drawing (economode, D plain paper) 70 D prints per hour
Print speed footnote Mechanical printing time.

Cartridges and Printheads


Ink drop 5.5 pl (C, M, Y)
12 pl (K)
Ink types Dye-based (C, M, Y)
pigment-based (K)
Number of print cartridges 4 (cyan, magenta, yellow, black)
Color(s) of printing supplies Cyan, magenta, yellow, black
Print cartridge volume delivered HP 711 Ink Cartridge: black (80 ml)
black (38 ml)
cyan, magenta, yellow (29 ml)
Print head nozzles 1376
Print heads 1 (cyan, magenta, yellow, black)

Memory


Maximum Memory 1 GB
Memory 1 GB

Connectivity


Mobile printing capability Direct print from mobile apps on iOS, Android and Chrome OS
email printing with HP ePrint and HP Smart app for iOS and Android.
Connectivity, optional Compatible HP Jetdirect print servers
Connectivity, standard Fast Ethernet (100Base-T)
Hi-Speed USB 2.0 certified
Wi-Fi
HP ePrint capability Yes
Network ready Standard

Power


Power consumption < 35 watts (printing), < 0.3 watts (standby)
Power Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

System Requirements


Recommended installation method Professional installation is recommended
Minimum System Requirements for Macintosh Mac OS X v 10.6: Mac computer with Intel® Core™ Processor
1 GB RAM
2 GB available hard disk space
Minimum System Requirements Microsoft® Windows® 7: 32-bit (x86) or 64-bit (x64) processor (1 GHz)
1 GB RAM (32-bit) or 2 GB RAM (64-bit)
1 GB available hard disk space
Windows Vista® Ultimate/Business/Home Premium: 32-bit (x86) or 64-bit (x64) processor (1 GHz)
1 GB RAM
1 GB available hard disk space
Windows® XP Professional/Home (SP3 or higher): Intel® Pentium® family or AMD K6™/Athlon™/Duron™ family (1 GHz)
512 MB RAM
1 GB available hard disk space
System requirements, recommended Microsoft® Windows® 7: 32-bit (x86) or 64-bit (x64) processor (1 GHz)
2 GB RAM (32-bit) or 4 GB RAM (64-bit)
4 GB available hard disk space
Windows Vista® Ultimate/Business/Home Premium: 32-bit (x86) or 64-bit (x64) processor (1 GHz)
2 GB RAM
4 GB available hard disk space
Windows® XP Professional/Home (SP3 or higher): Intel® Pentium® family or AMD K6™/Athlon™/Duron™ family (1 GHz)
1 GB RAM
2 GB available hard disk space
Recommended Macintosh system requirements Mac OS X v 10.6: Mac computer with Intel® Core™ Processor
2 GB RAM
4 GB available hard disk space

Software


Software included HP Click, HP DesignJet Utility for Mac and Windows

Physical Specs


Minimum dimensions (WxDxH) 1292 x 530 x 932 mm
Package dimensions (WxDxH) 1423 x 577 x 626 mm
Weight 39.2 kg
Package weight 62 kg
