• Webcode: 433671 • Mfr: GY-HM620U
Product Highlights
  • 2.2MP 1/3" CMOS Sensor
  • 1920 x 1080 Resolution
  • 23x Fujinon Auto Focus Zoom Lens
  • 2x XLR / f3.5mm mini jack Input
  • AV / f3.5mm mini jack Output
  • 3.5" LCD Display
  • Optical Image Stabilization
  • SDHC / SDXC Storage

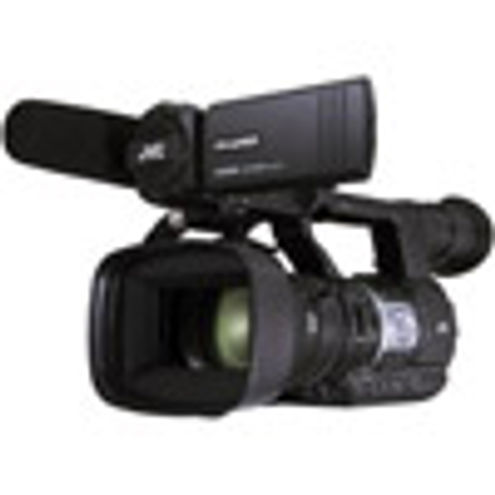

JVC Professional Products GY-HM620U PRO HD Handheld Camcorder JVC Professional Products GY-HM620U PRO HD Handheld Camc...
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $122.56 Learn More

Overview

ProHD Handheld Camcorder

The GY-HM620 is an advanced handheld ProHD camera that delivers unsurpassed imagery and offers features for news, sports, and independent production. Based on JVC's popular GY-HM600, the new 620 has upgraded CMOS devices for greater sensitivity and a brighter LCD display for outdoor daylight viewing. Versatile and extremely easy to use, there's no better camera for fast paced HD field production.

Key Features:

  • Newly designed 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
  • F12 Sensitivity
  • 23x Fujinon Auto focus zoom lens with manual functions
  • F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)
  • Optical image stabilizer
  • 3 position ND filter (1/4, 1/16, 1/64)
  • 0.45-inch 1.22M pixel color viewfinder
  • Upgraded 3.5-inch 920K pixel LCD display with focus assist
  • SDXC/SDHC memory card recording (2 slots for dual-backup, continuous recording)
  • Large file size support with SDXC card
  • 50Mbps H.264 Extreme High Quality mode (XHQ)
  • Multiple encoding formats (HD MPEG2 (35/25/19Mbps) / AVCHD 1920x1080 60i / 1080/60p recording capability / SD H.264)
  • Wide media format compatibility (.MOV (Final Cut Pro) / .MP4 (XDCAM EX) / AVCHD)
  • Professional switch layout and comprehensive video settings
  • Pre Rec (retro) mode (15 sec.)
  • Interval (time lapse) recording
  • Built-in stereo microphone
  • 2-channel balanced audio inputs (mic/line switchable) w/phantom power supply
  • HD/SD-SDI, HDMI Outputs
  • Wired remote control connector
  • High performance 2D DNR

What's Included

GY-HM620U PRO HD Handheld Camcorder
Battery Pack
AC Adapter

Reviews

Product Specifications

GY-HM620U ProHD Handheld Camcorder

General Specifications



Power

DC 12V (AC adaptor), DC 7.2V (Battery)

Power consumption

Approx. 12W (with VF and LCD monitor)

Dimensions

178(W) x 198(H) x 416(D)mm (7" x 7-13/16" x 16-3/8")

Mass

Appro.2.4kg (5.3lbs):GY-HM620, 2.45kg(5.4lbs):GY-HM660 (Including battery)

Operating temperature

0 to 40 (32 to 104 )

Storage temperature

-20 to 50 (14 to 122 )

Operating humidity

35% to 80%

Storage humidity

Under 85%

Camera


Image Sensor 1/3" 2.2M pixels progressive scan 3CMOS
Synchronizing System Internal synchronization
Stabilizer Optical image stabilizer
Lens Fujinon F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion: 29 to 667mm)
Filter Diameter 72mm
Shutter Speed 1/4 to 1/10000
Gain -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC
ND Filter 1/4, 1/16, 1/64
LCD Display 3.5" 920K pixels, 16:9
Viewfinder 0.45" 1.22M pixels, 16:9

Video/Audio Recording


Recording Media 2x SDHC/SDXC memory card Class 6/10
Video recording Video codec:
MPEG2 Long GOP(HD), AVCHD, H.264 (SD)

File format:
MOV(HD/SD:H.264), MP4(XDCAM EX), MTS(AVCHD), MXF(GY-HM660 only)
Recording mode MPEG-2 Long GOP
NTSC setting: HQ mode:1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i,
1280 x 720/59.94p, 29.97p, 23.98p
SP mode: 1440 x 1080/59.94i
PAL setting: HQ mode:1920 x 1080/50i, 25p, 1440 x 1080/50i
SP mode: 1440 x 1080/50i
AVCHD
NTSC setting: HQ mode:1920 x 1080/59.94i, SP mode:1920 x1080/59.94i
PAL setting: HQ mode:1920 x 1080/50i, SP mode:1920 x1080/50i
HD(H.264)
NTSC setting: XHQ mode: 1920 x 1080/59.94p, 59.94i, 29.97p, 23.98p (50Mbps)
UHQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p (35Mbps)
PAL setting: UHQ mode: 1920 x 1080/50p, 50i, 25p (50Mbps), 1920 x 1080/50i, 25p (35Mbps)
SD(H.264)
NTSC setting: 720 x 480/59.94i(GY-HM620U/HM660U only)
PAL setting: 720 x 576/50i(GY-HM620E/HM660E only)
Proxy(H.264)
NTSC setting: LP/LV mode:480 x 270/29.97p, 23.98p
PAL setting: LP/LV mode:480 x 270/25p
Audio recording LPCM 2ch, 48kHz/16-bit(MPEG-2 Long GOP/H.264), AC3(AVCHD)

Interface


Video Output AV output (f3.5mm mini jack)
SDI output (BNC)
HDMI output
Audio Input XLR x2 (MIC, +48V/Line), f3.5mm mini jack
Audio Output AV output (f3.5mm mini jack)
Headphone f3.5mm mini jack
Time code link input/output RCA
Remote f2.5mm mini jack
