• Webcode: 434363 • Mfr: 10-1928
Product Highlights
  • Up to 152.4 m (500') Range
  • Bolt 500 / Bolt 500 XT / Sidekick II / 703 Bolt Compatibility
  • 2-Pin Connection
  • 5.2 ~ 5.5 / 5.67 GHz Frequencies
  • 7-17 VDC Input
  • HDMI Port
  • 1/4"-20 & 3/8" Attachment
  • Kit includes transmitter & 2x receivers
Teradek Bolt 500 LT 3G-SDI Wireless TX/2RX Teradek Bolt 500 LT 3G-SDI Wireless TX...
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $158.14 Learn More

Overview

Bolt LT

The Bolt LT takes Teradek’s industry-leading wireless performance and packages it into an affordable, streamlined series of zero-delay wireless video systems. The LT line is available in 500ft. or 1000ft. max-range models, with the LT 500 offering external antennas on the transmitter for enhanced wireless performance.

Key Features:

  • Compatible with 3rd generation Bolt 500, Bolt 500 XT, Sidekick II, and 703 Bolt
  • SDI loop out on TX
  • External antennas on Bolt 500 TX
  • Smaller and lighter chassis design with robust mounting points (3/8” and ¼”-20)
  • Extremely affordable and offers the same wireless performance as the XT

Not only lighter, but smaller too, the Bolt LT is the essential, no-frills high performance wireless video system. Each transmitter includes a single 3G-SDI or HDMI input with matching looping output, while the receiver includes a single 3G-SDI or HDMI output. Several ⅜” and ¼”-20 mounting points allow Bolt LT to mount seamlessly to any camera rig and integrated bi-directional Sony L-series or Canon LP-E6 pass-through battery plates allow you to power your system far more easily than before.

The Bolt LT also retains critical features from the previous generation, including AES 128 encryption to protect your video feed from prying eyes and multicasting to up to 4 receivers.

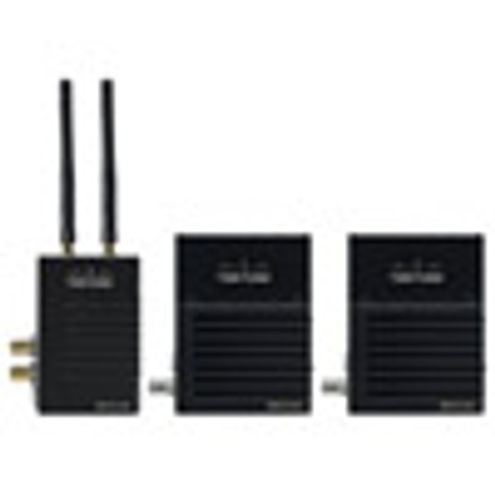

What's Included

Bolt 500 LT 3G-SDI Wireless Transmitter
2x Bolt 500 LT 3G-SDI Wireless Receivers

Reviews

Product Specifications

Bolt LT 500 HD-SDI Wireless Tx

Video


Video Inputs SD/HD/3G-SDI (75 Ohm BNC)
Video Outputs HD/SD/3G-SDI Loop-out (75 Ohm BNC)
SDI Ancillary Data Support supports metadata, timecode, and start/stop flags from certain camera manufacturers.
Colour Sampling SDI: YCbCr 4:2:2, 8-bit
Delay Tx to Rx <0.001 sec (without format conversion)

Supported Resolutions


Supported Resolutions 1080p 23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94/576p50 (via HDMI ports only)
480i(NTSC)/576i(PAL)

Video Processing


Video Compression visually lossless
Video Format Conversion Support None
Colour Correction CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)

Audio Processing


Audio Compression 48 kHz 24-bit PCM

Inputs


Audio Input Embedded Audio Input

Physical


Dimensions 2.4 x 6.6 x 10 cm (0.9 x 2.6 x 4.4")
Weight 226 g (8 oz)
Material Construction Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability Multiple mounting options with M3 and 1/4" holes
3/8" ARRI style accessory mount

Interfaces


HTTP None
Configuration Interfaces None
Switches On/Off and Reset Switch
Desktop App Feature-rich Bolt Manager Application for OS X & Windows
USB Interface Functionality Upgrade via Mini-USB

Network


Wireless Non-DFS Frequencies:
US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
EU & JP: 5.19 ~ 5.23 GHz
DFS Frequencies:
US: 5.27 ~ 5.55 GHz and 5.67 GHz
EU & JP: 5.27 ~ 5.67 GHz
RF Channel Selection Auto only (Not configurable)
Encryption AES-128
RF Power 17 dBm EIRP
Range Up to 500' line of sight
Unicast Multicast Unicast / Multicast
Noise Rejection Can coexist with WiFi and 5GHz cordless phones

Power


Power Input 2-Pin Connector 7-17 VDC
Battery None
Nominal Power Consumption 7.3 Watts (Measured at 1080p60)

Environmental


Operating Temperature 0-40° C

Bolt LT 500 3G-SDI Wireless Rx



Video


Video Outputs SD/HD/3G-SDI (75 Ohm BNC)
SDI Ancillary Data Support supports metadata, timecode, and start/stop flags from certain camera manufacturers
Colour Sampling SDI: YCbCr 4:2:2, 8-bit
Delay Tx to Rx <0.001 sec (without format conversion)

Supported Resolutions


Supported Resolutions 1080p 23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94/576p50 (via HDMI ports only)
480i(NTSC)/576i(PAL)

Video Processing


Video Compression visually lossless
Test Pattern Generator Support Yes
Video Format Conversion Support None
Colour Correction CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)

Audio Processing


Audio Compression 48 kHz 24-bit PCM

Inputs


Audio Input Embedded Audio Input

Physical


Dimensions 2.5 x 8.5 x 11.4 cm (1 x 3.4 x 4.5")
Weight 288 g (10 oz)
Construction Milled Aluminum (Chassis) and regulation-compliant PCB
Plastic Cap
Mountability Multiple mounting options with M3 & 1/4" holes

Interface


HTTP None
Configuration Interfaces
  • No OLED Screen
  • There is an OSD that appears on the Video Output which can be controlled with the Menu Joystick
Switches On/Off and Reset Switch
Desktop App Feature-rich Bolt Manager Application for OS X & Windows
USB Interface Functionality Upgrade via Mini-USB

Network


Wireless Non-DFS Frequencies:
US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
EU & JP: 5.19 ~ 5.23 GHz
DFS Frequencies:
US: 5.27 ~ 5.55 GHz and 5.67 GHz
EU & JP: 5.27 ~ 5.67 GHz
Rf Channel Selection Auto only (NOT configurable)
Encryption AES-128
Rf Power 15dBm EIRP
Range Up to 500' line of sight
Unicast Multicast Unicast / Multicast
Noise Rejection Can coexist with WiFi and 5 GHz cordless phone

Power


Power Input 2-Pin Connector 7-17 VDC
Battery None
Nominal Power Consumption 9 Watts

Environmental


Operating Temperature 0-40° C
