Product Highlights

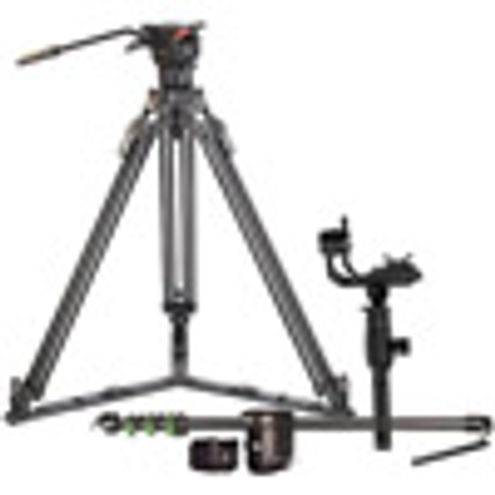

  • DJI Ronin-S Kit Designed for DSLR / Mirrorless Camera
  • -95° to +185° Tilt Angle Range
  • 360° Roll Angle Range
  • 360° Pan Angle Range
  • 12 hr Battery Life
  • Kit includes DJI Ronin-S, Teris TS50AL fluid head & tripod, JQ40 CF mini jib & remote
Kit Options:
Fluid Head & Tripod Kit
Mini Jib
Fluid Head, Tripod Kit & Mini Jib
Fluid Head, Tripod Kit, Mini Jib & Zhiyun Remote
Fluid Head, Tripod Kit, Mini Jib & Teris Remote
Fluid Head, Tripod Kit, Mini Jib, Zhiyun Remote & Ronin-S
Fluid Head, Tripod Kit, Mini Jib, Teris Remote & Ronin-S
Teris Ronin-S Kit w/ Teris TS50AL Fluid Head & Tripod Kit w/JQ40  Carbon Fiber Mini Jib and Remote Ctrl Teris Ronin-S Kit w/ Teris TS50AL Fl...
SAVE $280   $3,099.00 Add to Cart
Web Availability: In Stock
Vistek Locations
  • Toronto In Stock
  • Ottawa Available for Order
  • Mississauga Available for Order
  • Calgary Available for Order
  • Edmonton Available for Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $118.69 Learn More

Overview

DJI Ronin-S
Dare to Move

Designed in a single-handed form factor for DSLR and mirrorless cameras, the Ronin-S empowers creators to shoot with the freedom of stabilized shots on the move.

Key Features:

  • Superior 3-Axis Stabilization
  • 3.6 kg Tested Payload Capacity
  • 12hrs Max Battery Life
  • Camera Control
  • Pro Accessory Compatibility
  • Fine Focus Control
  • Automated Smart Features
  • Angled Roll Motor

Be in the Moment

Professional Stability for Every Destination

The detachable, modular design of the Ronin-S makes it easy to fit inside a backpack on your travels. Thanks to the industry standard quick-release plate design, you can easily mount the camera onto the gimbal for tracking shots or on a tripod for stills.

Effortlessly Smooth

Operating the Ronin-S is easy and intuitive to setup with Auto Tune directly on the gimbal for optimal torque control. Powerful, high torque motors actively stabilize your shot when mounted to moving platforms at speeds of up to 75 kph.

Camera Compatibility

The Ronin-S supports almost any DSLR or mirrorless camera setup on the market, offering direct camera control.

Stay Focused

Focus better on your subject with the easy-to-control Focus Wheel. When a compatible camera system connects to the Ronin-S, you can pull focus via the included cable. An optional external motor can also be added, bringing broader compatibility to all lens types while enhancing precision control.

Innovative Design

The Ronin-S's innovative framework elevates camera payload above the roll axis, making the camera's built-in display obstruction free and always in your line of sight. In addition to providing an unobstructed view, the angled roll motor allows for more space to balance bulkier setups.

Ecosystem

We understand that sometimes you need more than just a gimbal for your project. The Ronin-S offers multiple accessory mounts, providing full support for add-ons such as a microphone, LED lights, and even an external monitor. Compatibility with DJI control devices offer a wide range of control, such as Force Pro for intuitive operation and Master Wheels for precise gimbal movements. The Ronin-S also features an S-Bus port for compatibility with third-party remote controllers.

All-in-One Control

SmoothTrack technology allows you to transition from motion to camera angle with one hand. Switch between three user profiles with a simple click on the M button, and capture fast-moving objects in Sport Mode by holding it down.

Portable. Versatile. Ergonomic.

The ergonomic design of the Ronin-S frees unwanted shake when shifting from underslung to an upright position in one smooth take. The detachable design offers numerous usage scenarios. Mount it to an RC buggy for low-to-the-ground tracking shots or let it act as a stabilized remote head when attached to a jib. This detachment feature also makes it more convenient for easy storage.

Automated Creative Features

The most dramatic scenes unfold with imaginative, carefully planned shots. The Ronin-S includes a suite of automated features within the DJI Ronin app, letting you produce even more creative professional footage to unlock your true filmmaking potential.

Firmware Upgrade

With new firmware upgrade you get new features:

  • Added five focus speed settings for Nikon cameras (requires Ronin app v1.1.8 or later).
  • Added three focus speed settings for Canon cameras (requires Ronin app v1.1.8 or later).
  • Added two focus speed settings for Panasonic cameras (requires Ronin app v1.1.8 or later).
  • Added photo capture, video recording, autofocus, and focus pull support for Canon EOS 6D Mark II cameras with supported EF lenses. To use autofocus on the Canon EOS 6D Mark II, press down halfway on the gimbal’s camera control button.
  • Added photo capture, video recording, autofocus, and focus pull support for Canon EOS R cameras with supported RF mount lenses. To use autofocus on the Canon EOS R, press down halfway on the gimbal’s camera control button.
  • Added photo capture, video recording, autofocus, and focus pull support for Nikon Z6 cameras with supported Nikkor lenses. To use autofocus on the Nikon Z6, press down halfway on the gimbal’s camera control button.
  • Added video recording, autofocus, and focus pull support for Sony A7M3 and A7R3 cameras with supported E-mount lenses using the MCC-C cable. Photo capture is not currently supported. To use autofocus on the Sony A7M3 and A7R3 cameras, press down halfway on the gimbal’s camera control button.
  • After using the playback function on the Nikon D850 camera, double tap the trigger on the Ronin-S to switch back to live.
  • Reduced vibration/shaking when switching between 3D Roll 360 and normal mode. 3D Roll 360 is now disabled when the roll axis angle is larger than 180°.
  • Fixed other minor bugs.

TS50AL
Fluid Head & Tripod Kit

The TS50AL Fluid Head & Tripod Kit has a max. load capacity of 5 kg (11 lbs) and weighs 5.3 kg (11.6 lbs). It is made of Aluminum and has a tilt range of +90° / -68°.

JQ40
Carbon Fibre Mini Jib

The JQ40 CF Mini Jib is a quick and portable installation product.

Its transport length is only 131cm, and weighs 2.5 kg. It is very easy to use, and only needs to install the jib arm on the tripod to complete a 4m long arm with a stabilizer. It is compatible with DJI Ronin-S and Zhiyun Crane 2 now.



  • The column counterweight increases stability and reduces the occurrence of accidents.

  • The four-telescopic structure allows for a shorter transport length, making it easier and more convenient to carry.

  • CNC processing aluminum alloy parts ensure secure locking and sturdy performance.

Controller for Ronin S

This Ronin S system extension kit comes supplied with extension cables so you can detach your Ronin S Gimbal from its battery handle and you can then attach the Gimbal & its camera at the tip of the Jib using the kit adapter to supply control signal and power. Then attach the battery handle and kit controller adapter at the control area (lower end) of the 14’ Jib so the Ronin S Gimbal can be fully remotely powered and controlled, acting as both a Pan & Tilt head as well as a camera stabilizer system while on the Jib. You could also use this extension kit with a car mount and control the Gimbal from inside the vehicle.

*Note: Counter weights are NOT included with the Jib, standard exercise weights can be used.

What's Included

DJI Ronin-S Gimbal
BG37 Grip with Built-In Battery
Camera Mounting Plate
3x Camera Screws 1/4"-20
Lens Support
Camera Riser
USB-C Cable
Hook-and-Loop Strap for Gimbal
Storage Case
Focus Wheel
RSS IR Control Cable
Multi-Camera Control Cable (Type-C)
Multi-Camera Control Cable (Type-B)
Extended Grip/Tripod (Metal)
24W USB Power Adapter
Accessory Box
2x Allen Wrenches
Hook-and-Loop Strap for Cable
Teris TS50 Fluid Head
Teris TS416AI Aluminum Alloy Tripod

Fixed Pan Bar
Ground Spreader
Advanced Portable Soft Bag
Tripod Portable Handle
3/8 & 1/4 Screw Key
Operating Instructions
Teris JQ40 Carbon Fiber Mini Jib
Teris Controller for Ronin S

Kit Components
Controller for RoninS
Ronin-S DC Power Cable
JQ40 Carbon Fiber Mini Jib
TS50AL Fluid Head & Tripod Kit
Ronin-S

Reviews

Product Specifications

DJI Ronin-S

PERIPHERAL


Camera Tray Dimensions Maximum depth from the center of gravity on the camera base plate: 98 mm
Maximum height measured from top of the camera base plate: 150 mm
Maximum width: 205 mm
Accessory Port Mechanical: 1/4”-20, 3/8”-16 Mounting Hole, M4 Mounting Hole
Electrical: 12V/2A Power Accessory Port, Camera Control Port, 8-pin Port
Input Power Model: RB1-2400mAh-14.4V
Type: 18650 LiPo
Capacity: 2400 mAh
Energy: 34.56 Wh
Connections Bluetooth 4.0
USB-C
DJI Assistant 2 Requirements Windows 7 or above
Mac OS X 10.11 or above
Ronin App Requirements iOS 9.0 or above
Android 4.4 or above

WORKING PERFORMANCE


Load Weight (Reference Value) 3.6 kg (Handheld)
Angular Vibration Range ±0.02°
Maximum Controlled Rotation Speed Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Endpoint Range Pan axis: 360° continuous rotation
Tilt axis: +185° to -95°
Roll axis: 360° continuous rotation
Controlled Rotation Range Pan axis: 360° continuous rotation
Tilt axis: +135° to -90° (Upright Mode, +90° to -135° (Underslung and Flashlight Mode)
Roll axis: ±30°, 360° continuous rotation (Roll 360 mode)

MECHANICAL & ELECTRICAL CHARACTERISTICS


Working Current Static current: ≈0.16 A
Bluetooth Operating Frequency 2.4 to 2.48 GHz
Bluetooth Transmitter Power 0 dBm
Operating Temperature -4 to 113° F (-20 to 45°C)
Weight Approx. 3.3 lbs (gimbal only)
Approx. 4.1 lbs (gimbal and grip included)
Dimensions Approx. 202 x 185 x 486 mm

Teris TS50AL Fluid Head & Tripod Kit

Max. Load Capacity 5 kg (11 lbs)
Height Range 85-151 cm (33-59")
Tilting Range +90° / -68°
Weight 5.3 kg (11.6 lbs)
Material Construction Aluminum

Teris JQ40 Carbon Fibre Mini Jib

Compatibility DJI Ronin S / Zhiyun Crane 2
Max. Payload Capacity 7 kg (15.4 lbs)
Length 400 cm (157.4")
Tilting Range +87° / -66°
Weight 2.5 kg (5.5 lbs)
Material Construction Carbon Fibre

Controller for Ronin S

Compatibility Ronin S
Jib Length 4 m (14')
