Product Highlights
  • EK 500 G4 Receiver
  • SK 500 G4 & SKP 500 G4 Transmitter
  • MKE 2 Clip-On & MD 42 Microphone
  • GW1: 558 to 608 MHz Bandwidth
  • Lavalier Microphone (MKE 2)
  • Handheld Microphone (MD 42)
  • Omnidirectional Pickup Pattern (MKE 2)
  • Omnidirectional Pickup Pattern (MD 42)
  • LEMO f. SK50/250 Connection (MKE 2)
  • XLR-3 Connection (MD 42)
  • Wireless
  • Works with EK 500 G4 & More
  • 100 m (330') Frequency Range
  • Up to 88 MHz Bandwidth
  • Gw1 Band
  • Includes Sennheiser EK 500 G4, SK 100 G4, SKP 500 G4, MKE 2, MD 42, MZQ800 & Accessories
Sennheiser EW 500 FILM G4 CH-GW1 Wireless Combo + MD 42 Sennheiser EW 500 FILM G4 CH-GW1 Wireless...
Overstock
FREE SHIPPING Available
Web Availability: In Stock
Vistek Locations
  • Toronto In Stock
Please call and verify availability at the store as stock changes daily.

Lease this for: $66.18 Learn More

Overview

Evolution Wireless G4

Evolving with you

The fourth generation evolution wireless series makes professional wireless technology even more simple, flexible and reliable. For musicians, filmmakers, convention speakers and for use in the auditorium: G4 is a system that grows with you.

The fourth generation of Sennheiser's most popular series worldwide leaves nothing to be desired in terms of flexibility, ease of use and reliability. Whether you are on tour, at an outdoor shoot, in the conference room or in the auditorium – the G4 can do it all.

  • Live Sound

    From the small stage to the big arena, the 100 series covers everything musicians and performers need to connect with their audience, including quick synchronization of up to 12 channels. The 500 series impresses even the most critical professionals in multi-channel applications with a bandwidth of up to 88 MHz.
  • Broadcast & Film

    Specially developed for mobile journalism, the 100 series is the industry standard and is used whenever everything has to be quickly and reliably captured in one take. Thanks to its high bandwidth, the completely new 500 series provides reliable transmission for large film shoots.
  • Business & Education

    With the 300 Series, Sennheiser raises the bar again by offering even greater flexibility and optimized support for workflows. Thanks to remote control and monitoring with the Sennheiser Control Cockpit software, G4 is the most versatile microphone series for business and education applications.

Wireless technology has never been so flexible.

Club gig? Large festival stage? Outdoor shoot? Auditorium? Conference? It's all possible thanks to the G4. Now, with the 100 series, 12 channels can be synchronized in seconds – that saves precious time during setup. The 300 and 500 series both come with a bandwidth of up to 88 MHz.

The new simplicity of a complex setup.

G4 is the easiest professional system to use at its price point.

The intuitive display at the heart of the system, the true diversity receiver, provides for quick and easy operation. The Wireless Systems Manager software (300 and 500 series) and the Control Cockpit (300 series) make it incredibly easy to control multichannel systems and ensure the perfect workflow.

No compromises in transmission reliability.

Up to 100 meters (300 feet) of perfect sound, up to 50 mW of transmission power (300 and 500 series), feedback-proof microphone capsules – that provides absolute transmission reliability all the way back to the last rows. The G4 proves its worth when everything has to be right in the first take, for example in outdoor shoots when surrounded by many other camera teams. You can rely on the G4 – any time, any place.

Even more possibilities.

Evolution wireless is made for every conceivable application. With the G4, Sennheiser added several additional sets: a 100 series combo set (handheld and clip-on microphone), a completely new 500 series for large film shoots, and new basic sets for the 300 series (Business & Education) that make it affordable for you to supplement your system as you see fit.

MD 42 ENG Handheld Microphone

Excellent speech intelligibility. Easy handling. Avoids wind and handling noise problems. Extra long body.

The MD 42 is a high-quality reporter's microphone with omni-directional pick-up pattern. It has been specially optimised for rough use in live reporting and broadcasting environments. The MD 42 is a very 'good-natured' microphone whose design avoids wind and handling noise problems. Colour: black, sound inlet basket: refined steel, black.

Key Features:

  • Two-ply sound inlet basket provides increased protection from wind and pop noise
  • Rugged metal housing
  • Rubber mounted capsule (or Elastically mounted capsule) ensures low sensitivity to handling noise
  • Omni-directional pick-up pattern ensures excellent speech intelligibility without having to point the microphone directly at your interview partner

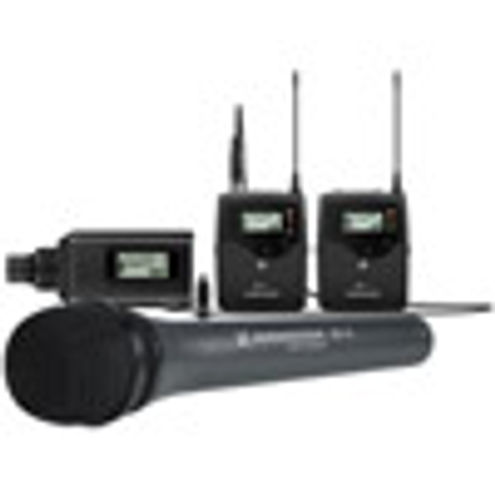

What's Included

EK 500 G4 Camera Receiver
SK 500 G4 Bodypack Transmitter
SKP 500 G4 Pro Plug-On Transmitter
MD 42 ENG Handheld Microphone
MKE 2 Clip-On Microphone
4x AA Batteries
CL 1 3.5mm Jack Cable
CL 500 XLR to 3.5mm Jack Adapter Cable
CA 2 Camera Adapter
Fur Windscreen for MKE 2
Quick Guide
Safety Guide
Manufacturer Declaration Sheet

Reviews

Product Specifications

Detailed Specifications
EK 500 G4
Frequency Range

AS: 520 - 558 MHz
K+: 925 - 937.5 MHz
JB: 806 - 810 MHz
GBw: 606 - 678 MHz
Gw: 558 - 626 MHz
Bw: 626 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
Aw+: 470 - 558 MHz
Gw1: 558 - 608 MHz

Dimensions  Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 130 g
Audio output 3.5 mm jack socket: +17 dBu (mono, unbalanced)
Signal-to-noise ratio Line: ≥ 110 dBA, Phones: approx. 90 dBA
Switching bandwidth up to 88 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation  Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 140 mA
with receiver switched off: ≤ 25 µA
Adjacent channel rejection Typically ≥ 65 dB
Intermodulation attenuation Typically ≥ 65 dB
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity < 1.6 μV for 52 dBA eff S/N
Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Blocking ≥ 70 dB

SK 500 G4
Dimensions Approx. 82 x 64 x 24 mm
Sennheiser HDX Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 160 g
Signal-to-noise ratio ≥ 115 dBA
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth up to 88 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption

at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA

Input impedance 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage 3 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Transmission frequency Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Frequency stability ≤ ±15 ppm

SKP 500 G4
Dimensions Approx. 105 x 43 x 43 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 195 g
Signal-to-noise ratio ≥ 120 dBA
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth up to 88 MHz
Peak deviation ±48 kHz
Nominal deviation  ±24 kHz
Operating time  Typically 8 h
Modulation  Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 210 mA
with transmitter switched off: ≤ 25 µA
Input impedance 68 kΩ, unbalanced
Max. Input voltage 6 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Transmission frequency Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response 80 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Frequency stability ≤ ±15 ppm

MKE 2
Connector 3.5 mm jack
Frequency response 20 to 20.000 Hz ± 3 dB
Max. sound pressure level 142 dB
Cable length approx. 1.60 m
Transducer principle pre-polarized condensor microphone
Pick-up pattern omni-directional
Sensitivity in free field, no load (1kHz) 5 mV/Pa, ± 3 dB
Equivalent noise level 26 dB
Equivalent noise level



MD 42

Connector XLR-3
Weight 360
Sensitivity in free field, no load (1kHz) 2,0 mV/Pa
Nominal impedance 350 Ω
Min. terminating impedance 1000 Ω
Weight w/o cable 360 g
