• Webcode: 436178 • Mfr: MON-CINE7-SK-RX-VM-KIT
  • FREE SHIPPING Available
Product Highlights
  • 7" LCD Field Monitor
  • 1920 x 1200 Resolution
  • 1800 cd/m² Brightness
  • Sidekick II Wireless Receiver
  • 3G-SDI / HD-SDI / SD-SDI / HDMI Input
  • 3G-SDI / HD-SDI / SD-SDI / HDMI Output
  • SD / USB Storage
  • Barrel Power Input & Sony / V-Mount Battery Brackets Power
Small HD Cine 7 SK RX + V-Mount Bracket Small HD Cine 7 SK RX + V-Mount Bracket
FREE SHIPPING Available
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $154.69 Learn More

Overview

Cine 7 SK RX + V-Mount Bracket

The New Industry Standard 7”

Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a colour accurate wide-gamut display, cinema camera control & integrated Teradek RT and Bolt functionality. Professional and expandable directors monitor, it comes with a built-in Teradek Bolt Sidekick II receiver.

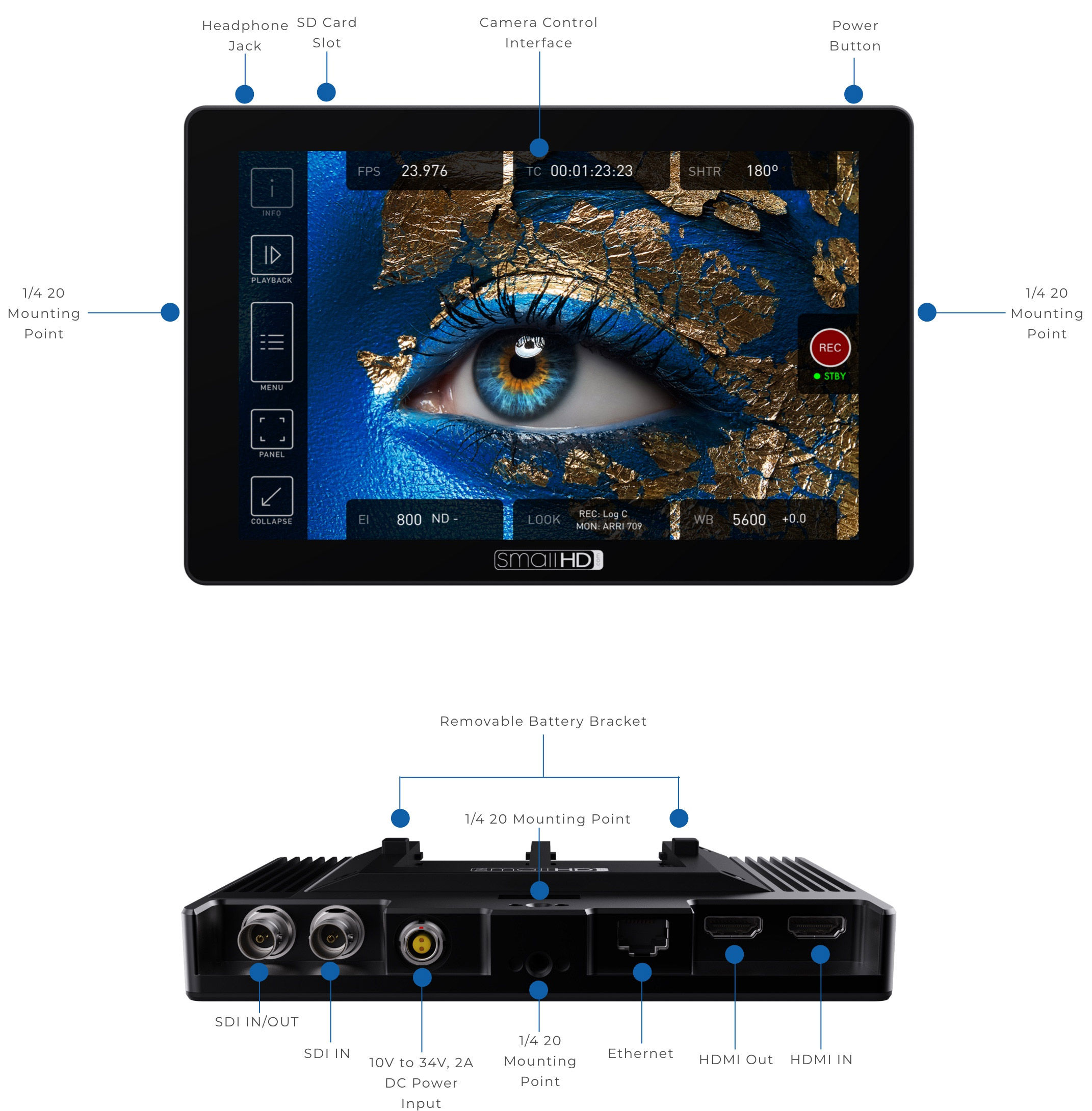

Key Features:

  • Display: 7-inch, 1920X1200
  • Brightness: 1800 nits
  • Wireless: Sidekick II Receiver
  • HDMI: 1x HDMI In, 1x HDMI Out
  • SDI: 1x 3G SDI In, 1x 3G SDI In/Out
  • Audio: ⅛” Headphone Jack
  • Power: Barrel Power Input (10V-34V, 2A DC), Sony/Gold Mount Battery Brackets


Brilliant Colour & Brightness

The Cine 7’s display will blow you away. With a DCI-P3 wide-color gamut and crystal clear daylight visibility, Cine 7 gives you the ultimate combination of breathtaking image clarity and accuracy, even under direct sunlight.

Cinema Camera Control

Take control of your camera directly from the Cine 7 touchscreen interface. Trigger record start/stop and change essential camera settings such as iris, ISO, frame rate, and so much more, all in real-time. Cine 7 can be outfitted with several control licenses so it can be used seamlessly across RED and ARRI cameras.

GO Wireless with Cine 7

Plug in seamlessly to any wireless set with integrated Teradek Bolt transmitter and receiver models.

Built for Professionals

With several 3G-SDI and HDMI inputs and outputs, built-in signal cross conversion, and your choice of Gold-, V-, or Sony power plates, the Cine 7 is ready for action on any A-list production. Its milled aluminum chassis is
designed to withstand regular abuse on set & the several ¼-20” mounting points allow you to mount the monitor in just about any orientation you need.

See the image in any environment

  • Brightness - 1800 nits (bright)
  • Resolution - 1920 x 1200
  • Colour Gamut - 100% DCI-P3
  • Pagebuilder UI - Highly Responsive Touchscreen
  • Screen Diagonal - 7"
  • Pixel Density - 322 ppi

Teradek RT Integration

Get critical follow focus information directly on your monitor, including lens focal length, iris, zoom, and more when Cine 7 is connected to a Teradek RT CTRL.3 or CTRL.1 controller.

Powered by SmallHD OS3

SmallHD OS3 software gives directors and camera operators industry leading imaging tools and a simplified user experience. Customize scopes, Waveforms, and False Color how you desire. Apply real-time 3D LUTs quickly and easily. Save time and be more confident creating with this powerful, data-driven tool set.

What's Included

Cine 7 SK RX + V-Mount Bracket
Sony L Series Battery Bracket
Gold Mount Battery Bracket
L-Series Battery Kit
Monitor Handles + Neck Strap
8 GB SD Card
Cleaning Cloth
702 Touch / Cine 7 Ultra Clear Screen Protector

Reviews

Product Specifications

Cine 7 SK RX + V-Mount Bracket

Display


Panel Type IPS LCD
Size Diagonal 7.02
Resolution 1920 x 1200
Pixel Density (PPI) 322
Aspect Ratio 16:10
Active Area 5.95 x 3.72
Contrast 1000:1
Colour Gamut 100% DCI-P3 Coverage
Colour Depth 8-b Panel with 10-b Scopes
Viewing Angle 8-b Panel with 10-b Scopes
Backlight Type LED
Adjustable Backlight Yes

Input Signal Types / Format


3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal Types / Formats


3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Wireless


Video Inputs 1x
Delay Tx to Rx < 1mSec (0.001 sec)
Supported Resolutions 1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50
Video Compression Visually lossless
Audio Compression 48 kHz 24-bit PCM
Wireless Network 5GHz
RF Channel Selection AFS (Automatic frequency selection)
Encryption AES-128
Range Upto 500' line of sight (or 500' LoS)
Noise Rejection Can coexist with WiFi and 5 Ghz cordless phones

Connector Type


SDI BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 3.5mm 3-pin Stereo Headphone Jack
Power In 2-pin Locking
USB USB 2.0 Micro-B receptacle

Controls


Primary Control Interface Touch Screen
Record / Capture Capture Tool

Power


Connector Type Lemo
Voltage DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Recommended Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Overload Protection DC input: Reverse polarity
Battery Types L-Series, V Mount, Gold Mount
Battery Chemistry Li-ion
Battery Charging Time (hours) Monitor does not support the charging of batteries

Environmental


Compliance FCC, IC, CE, RoHS
Operating Temperature 30° - 100° F
Storage Temperature 0 - 120° F
Height 5.48" (13.92cm)
Width 1.32" (3.35cm)
Depth/Length 7.09" (18.01cm)
Weight (Packaged) 56 oz (1587.57g)
Mount Points 4x ¼"-20 Mount Points (Left, Right, Bottom, and Back)

Software


Pixel Zoom (type) 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate(Manual/Automatic) Automatic or Manual Control
Image Flip (Manual/Automatic) Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colours) User Adjustable Colour Style and Intensity
Peaking User Adjustable Intensity
False Colour Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual - User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Image Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel
