• Webcode: 436286 • Mfr: DT-U31PROU
Product Highlights
  • 31.1" LED Monitor
  • 4096 x 2160 4K Resolution
  • SDI / HDMI / SFP/IP / Audio / UMB / GPI / Ethernet / USB Input
  • SDI / HDMI / Audio / UMB Output
  • 1500:1 Contrast Ratio
  • 350cd/m2 Brightness
  • 178° (H / V) View Angle

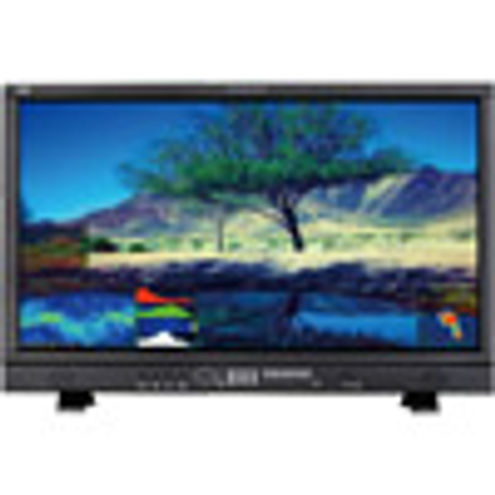

JVC Professional JVC Native 4K (4096) HDR MULTI-INTERFACE MONITOR JVC Professional JVC Native 4K (4096) HDR MULTI...
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $432.00 Learn More

Overview

Multi-Interface 4K HDR Studio Monitor

Key Features:

  • Native 4K panel (4096 x 2160) with LED backlight
  • Multiple 4K interfaces including 12G/6G-SDI, 4x 3G-SDI quad link, 4K60p HDMI 2.0
  • HLG-HDR & PQ-HDR Capability
  • Built-in 3D LUT auto calibration
  • Remote control via web browser

Wider Colour Gamut

The DT-U31PRO monitor supports 100% DCI-P3 and 84% ITU-R BT.2020 colour gamut.

Multiple 4K interfaces

DT-U series monitors support 12G/6G/3G-SDI input, 4x 3G-SDI quad link input (Both square division and Interleave), 4K60p HDMI 2.0 input, and by optional plug-in SFP adaptor, the DT-U monitors support additional SFP and video over IP SMPTE-2022 input.

4 independent SDI quadview mode

You can also input 4x independent SDI sources to quadview; support different formats SDI mixed input (require the same frequency rate)

3DLUT auto colour calibration

DT-U series monitors support 3DLUT 17x17x17 precise auto calibration, with built-in colour generator and calibration software. They currently support X-rite i1 Display (special version) and will support JETI Specbos 1211 (near-future update). Probes directly pluged into monitor USB port to auto calibrate. The calibration process time is as short as 30 minutes

Built-in De-log LUTs

DT-U series monitors have built-in De-log LUTs including JVC J-log1, ARRI Log-C, SONY S-log2, S-log3, Canon C-log, Panasonic V-log and RedLogFilm LUTs, to convert to ITU-Rec.709 directly.

User 3DLUT upload

DT-U series monitors support user 3DLUT cube files to upload by USB, which is convenient for colour creation during post-production monitoring.

Waveform/Vector/Histogram

Support waveform selection display (Y, Cb, Cr, R, G, B), and single lines selection mode; support vector scope and R/G/B/Y histogram display, with multiple display position, size and colour selection.

16-ch audio meters with alert and output selection

Support de-embed audio from SDI and HDMI, and display 16-ch audio level meters, with audio abnormal alerts info displayed on each audio bar. You can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

HLG and PQ Capability

DT-U Series monitors support HLG HDR, ST.2084 PQ and S-log3 HDR display to present realistic image.

Low latency mode

Support Low latency mode (less than half frame) under 4K input sources, the special image processing mode for lip-sync monitoring.

Webserver IP remote control

Connect the monitor in LAN and read the monitor status or set menu by computer web browser, which enables studio administrators to control all the monitors remotely.

Additional Features:

  • Gamma preset selection: 1.8, 2.2, 2.4 and 2.6.
  • TSL 3.1 and 4.0 UMD support
  • On-screen TALLY display
  • SDI Timecode (LTC, VITC1&2) display
  • AFD (Active Format Description) info display
  • Frame/Field view selection
  • R/G/B/Mono, False colour, Zebra stripes display
  • Focus assist display mode
  • H/V delay, freeze frame display mode
  • Safety area selection: 80%, 85%, 90%, 93%, 95%
  • Scale marker: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • Native scan, over scan and normal scan selection
  • GPI control via RS485 port connection
  • USB firmware upgrade

Reviews

Product Specifications

Model

DT-U31

DT-U31PRO

Size

80 cm (31.5")

79 cm (31.1")

Display area

69.8 x 39.3 cm (27.5 x 15.5")

69.8 x 36.8 cm (27.5 x 14.5")

Resolution

3840 x 2160

4096 x 2160

Colour depth

10-bit 1.073G

10-bit 1.073G

Brightness

300cd/m2

350cd/m2

Contrast

3000:1

1500:1

Viewing Angle

178°(H) / 178°(V)

178°(H) / 178°(V)

Surface treatment

Non-glass

Non-glass

Backlighting

LED

LED

Input Signal



SDI input

12G/6G/3G/HD/SD-SDI ×1

3G/HD/SD-SDI ×3

12G/6G/3G/HD/SD-SDI ×1

3G/HD/SD-SDI ×3

HDMI input

HDMI 2.0 ×1

HDMI 2.0 ×1

SFP/IP input

SFP×1 (Optional plug-in adaptor)

SFP×1 (Optional plug-in adaptor)

Audio input

RCA L×1; R×1

RCA L×1; R×1

UMD input

RS485 ×1

RS485 ×1

GPI input

RS485 ×1

RS485 ×1

Ethernet input

RJ45 ×1

RJ45 ×1

USB input

USB-A ×1

USB-A ×1

Output Signal



SDI output

12G/6G/3G/HD/SD-SDI ×1

12G/6G/3G/HD/SD-SDI ×1

HDMI output

HDMI 2.0 ×1

HDMI 2.0 ×1

Audio output

3.5mm ×1; Speaker ×2

3.5mm ×1; Speaker ×2

UMD output

RS485 ×1

RS485 ×1

General



AC Input

AC 100-240V 50/60Hz

AC 100-240V 50/60Hz

DC Input

DC 12V-17V

DC 12V-17V

Power consumption

Max 75W

Max 110W

Working temperature

0°C - +40°C

0°C - +40°C

Working humidity

10% - 90%

10% - 90%

Storage temperature

15°C - 60°C

15°C - 60°C

Storage humidity

10% - 90%

10% - 90%

Dimensions

74.8 x 48.5 x 9.1 cm (29.4 x 19.1 x 3.6")

74.8 x 46.7 x 9.1 cm (29.4 x 18.4 x 3.6")

Net weight

11.95 kg (26.3 lbs)

11.45 kg (25.2 lbs)
