- Webcode: 440968 • Mfr: DCS5KK
Product Highlights
- 24.2MP CMOS Sensor
- Full-Frame Format
- 30fps (6K) / 60 (4K)fps Continuous Shooting
- ISO 100-51200 Extendable to 50-204800
- 4K (3840x2160) at 30p video Recording
- 4K 60p 4:2:0 10bit Internal
- 14+Stops Dynamic Range
- Unlimited recording time

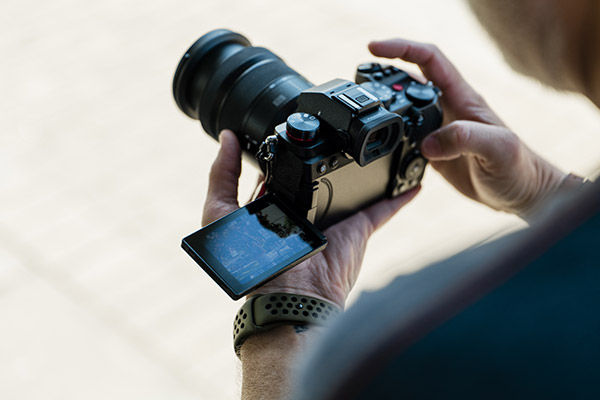

- Tilting Touchscreen
- Kit includes DC-S5 camera & 20-60mm lens
Kit Options:
Panasonic Lumix DC-S5 Mirrorless Kit w/ Lumix S 20-60mm f/3.5-5.6 L-Mount Lens
Panasonic Lumix DC-S5 Mirrorless Kit w/ ...
SAVE $700
$2,699.99
Add to Cart
Overstock
Web Availability:
In Stock
Product is In Stock in our Warehouse or in one of our store locations. We will confirm stock is available and process your order. If the available stock is sold before your order is processed, you will receive an email from us.
In-store or Curbside Pick-up
- Available in Toronto
Vistek Locations
- Toronto In Stock
Lease this for: $103.41 Learn More
Demo available:
Overview
DC-S5
Hybrid Full-frame Mirrorless
The LUMIX S5 is a new hybrid full-frame mirrorless camera that achieves both excellent performance in photo/video and stunning mobility for serious photographers and videographers.
At the heart of the camera, the LUMIX S5 contains a 24.2-megapixel 35mm full-frame CMOS sensor that boasts a wide dynamic range and high sensitivity performance. The LUMIX S5 further realizes recording maximum ISO 51,200 crystal-clear high sensitivity video with the adoption of the Dual Native ISO technology.
Key Features:
- 24.2MP Full-Frame CMOS Sensor
- ISO100-51200 / EX.50-204800
- 96MP High Res in JPEG
- Live-view Composite
- 10-bit Recording (4K 60p 4:2:0 10-bit / 4K 30p 4:2:2 10-bit)
- 4K 30p 8-bit No Time Limitation
- 14+ stops V-Log / V-Gamut
- 6.5-stop Dual I.S.
- Compact and Lightweight
Still
High Sensitivity
- ISO100-51200 (Extended 50-204800)
High-speed, High-precision AF
- Improved Face/Eye/Body Detection
- Improved Tracking AF Performance
Image Stabilizer
- 5-stop 5-axis B.I.S.
- 6.5-stop 5-axis Dual I.S. 2
Dual Native ISO
- For Super High Sensitivity Shooting with Low Noise
Video
4K 60p
- 4K 60p 30min
- 4K 30p Unlimited Recording Time (8-bit)
10bit Recording
- 4K 60p 4:2:0 10bit / 4K 30p 4:2:2 10bit Internal Rec
- 14+ stops V-Log / V-Gamut
Slow/Quick Motion
- 4K 1, 2, 5, 10, 15, 30, 60 fps
- FHD 1, 2, 5, 10, 15, 30, 60, 100, 120, 150, 180 fps

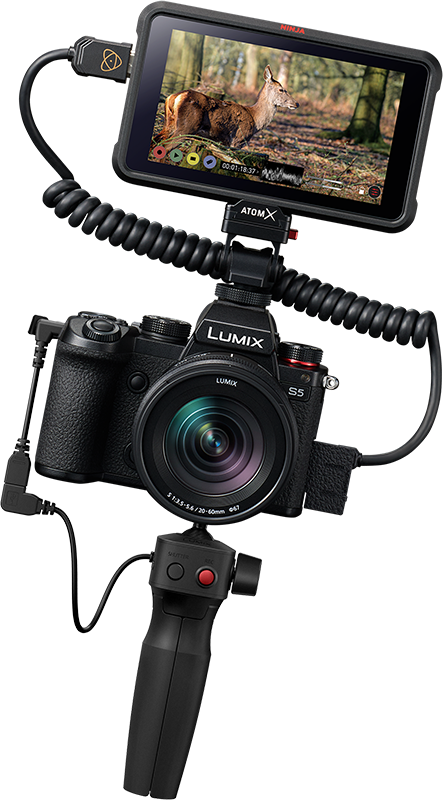

RAW Output via HDMI
- (Firmware Update)
14+ stops of V-Log and V-Gamut
Compatible with Cinema VariCam Look
Offering compatibility with Cinema VariCam Look, 14+ stops of dynamic range, and a very wide color spectrum, V-Log and V-Gamut come preinstalled. LUTs developed for VARICAM series can also be used for the LUMIX S5’s footage.
Anamorphic Mode
4K CinemaScope Images
-
Image Stabilizer Anamorphic (Video)
An image stabilizer ideal for an anamorphic lens can be used. Select from 1.30x, 1.33x, 1.5x, 1.8x or 2.0x depending on the lens magnification.
-
Anamorphic Desqueeze Display
Images can be desqueezed in cinescope size. Magnification rate is also selectable from 1.30x, 1.33x, 1.5x, 1.8x or 2.0x.
REC Frame Indicator
A red border surrounds the frame as you record, helping you avoid vlogging without recording.
Frame Marker
The ideal aspect ratio varies by media.
This feature helps you anticipate the right crop as you shoot. Can be used for both still photos and video.
Vertical Video
The vertical format is a standard choice for certain media. The LUMIX S5 can detect the vertical orientation and play back vertical videos accordingly.
Human Body Recognition / Animal Recognition
Using Deep Learning Technology
Deep Learning technology creates a human body / animal recognition AI to accurately recognize a person and animal. A human body recognition / animal recognition AI acquired from a huge number of images is processed by the camera's Venus Engine.
Improved Recognition AF
Faster Recognition Speed + Additional Head Recognition
- Quickly recognize the face and eyes of moving subjects
- Twice the recognition speed of conventional products
- Improved eye recognition accuracy when the face is tilted
- Improved face and eye recognition accuracy even if the subject is small
- Quickly recognize the moving human body
- Improved eye recognition accuracy when face turns around
- Improved human body recognition accuracy even if the subject is small
Video AF Improvement
Improved Head Recognition & Faster Recognition Speed
It keeps focusing on the subject's face, even when the person moves out of center
It keeps focusing on the person, even when their face turns around
It keeps focusing on the main subject, even If an unintentional subject enters the frame
Still Image AF Improvement
Improved DFD & Faster Recognition Speed
- Follow small subjects (Prioritize small frame)
- Don't lose focus to the background
- Quick refocus after losing focus (Combined with DFD D-range extension and object recognition)
- Improvement of AFC visual quality (smooth focusing) on monitor in live-view by changing the control algorithm of AFC and using DFD technology
Adam Pretty
S5 Behind the Scenes | Sports Photography
Todd White
S5 Behind the Scenes | Street Photography
Todd White
The Art of Glassblowing with Gail Allard
Durability to Shoot Under Tough Conditions
Designed with Dust and Splash Resistant in Mind
Sealing materials are used for the joints of the body, dials, and buttons. Even in areas where it's difficult to use sealing materials, the gaps between components are reduced, and the water-repellent coating is used in the fitting part.
Power
USB Power Charging
The large-capacity battery can be charged from a portable charger or PC via a USB adaptor.
USB Power Supply
This feature allows you to supply power to the camera while shooting. Convenient for video shooting with a fixed camera or during long shoots in the studio.
Power Save LVF Shooting
- Auto OFF: The eye sensor detects that the eye has moved away, and the camera automatically enters sleep mode.
- Auto ON: When the shutter button is half-pressed, advanced LUMIX technology instantly restores the shooting mode.
What's Included
Lumix DC-S5 Mirrorless Camera BodyBody Cap
Hot Shoe Cover
Cover for the Battery Grip Connector
Shoulder Strap
DMW-BLK22 Lithium-Ion Battery (7.2V, 2200mAh)
DMW-BTC15 Battery Charger
AC Adaptor
USB Connection Cable (A-C)
Lumix S 20-60mm f/3.5-5.6 Lens
Front Lens Cap
Rear Lens Cap
Lens Hood
Reviews
Product Specifications
DC-S5 |
|||||
|---|---|---|---|---|---|
| TYPE | Type | Digital Single Lens Mirrorless camera | |||
| Recording media | SD Memory Card / SDHC Memory Card / SDXC Memory Card Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards. |
||||
| Lens mount | L-Mount | ||||
| IMAGE SENSOR | Type | 35mm full-frame (35.6mm x 23.8mm) CMOS sensor | |||
| Camera effective pixels / Total pixels | 24.20 megapixels / 25.28 megapixels | ||||
| Aspect ratio / Color filter | 3:2 / Primary color filter | ||||
| Dust reduction system | Image sensor shift type | ||||
| LATITUDE | 14+ stops (V-Log) | ||||
| STILL IMAGE | Recording file format | Still image | JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072) | ||
| 6K PHOTO** / 4K PHOTO** | 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch)) 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch)) Extracted still images: JPEG (DCF, Exif 2.31) |
||||
| Aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1 | ||||
| File size (Pixels) | When using full-frame lenses | 3:2 | 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution Mode. 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.) |
||
| 4:3 | 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution Mode. 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.) |
||||
| 16:9 | 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution Mode. 3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.) |
||||
| 1:1 | 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution Mode. 2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.) |
||||
| 65:24 | 6000x2208(L) | ||||
| 2:1 | 6000x3000(L) | ||||
| When using APS-C/Super 35mm lenses | 3:2 | 3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 3504x2336(4K PHOTO) | |||
| 4:3 | 3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 3328x2496(4K PHOTO) | ||||
| 16:9 | 3984x2240(L) / 2880x1624(M) / 1920x1080(S) / 3840x2160(4K PHOTO) | ||||
| 1:1 | 2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 2880x2880(4K PHOTO) | ||||
| Image quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard | ||||
| Color space | sRGB, AdobeRGB | ||||
| MOTION PICTURE | Recording file format | MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit)) MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch)) |
|||
| Switch NTSC / PAL | Yes (NTSC (59.94Hz) / PAL(50.00Hz)) | ||||
| MOV** | NTSC (59.94Hz) | Full-frame | [4K] 3840x2160 | 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
|
| [FHD] 1920x1080 | 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
||||
| APS-C / Pixel by Pixel | [4K] 3840x2160 | 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable. 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
|||
| [Anamorphic 4K] 3328x2496 (4:3) | 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
||||
| [FHD] 1920x1080 | 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
||||
| PAL (50.00Hz) | Full-frame | [4K] 3840x2160 | 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. | ||
| [FHD] 1920x1080 | 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
||||
| APS-C / Pixel by Pixel | [4K] 3840x2160 | 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable. 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
|||
| [Anamorphic 4K] 3328x2496 (4:3) | 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable. 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
||||
| [FHD] 1920x1080 | 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
||||
| MP4** | NTSC (59.94Hz) | Full-frame | [4K] 3840x2160 | 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
|
| [FHD] 1920x1080 | 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
||||
| APS-C / Pixel by Pixel | [4K] 3840x2160 | 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
|||
| [FHD] 1920x1080 | 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
||||
| PAL(50.00Hz) | Full-frame | [4K] 3840x2160 | 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
||
| [FHD] 1920x1080 | 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
||||
| APS-C / Pixel by Pixel | [4K] 3840x2160 | 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
|||
| [FHD] 1920x1080 | 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
||||
| SLOW & QUICK | MP4** | NTSC (59.94Hz) | Full-frame | [FHD] 1920x1080 | 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more. |
| APS-C / Pixel by Pixel | [4K] 3840x2160 | 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 1, 2, 5, 10, 15, 30, 60 fps |
|||
| PAL (50.00Hz) | Full-frame | [FHD] 1920x1080 | 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more. |
||
| APS-C / Pixel by Pixel | [4K] 3840x2160 | 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 1, 2, 5, 10, 15, 30, 60 fps |
|||
| VIEWFINDER | Type | OLED Live View Finder | |||
| Pixels | Approx. 2.36 million dots | ||||
| Field of view / Magnification | Approx. 100% / Approx. 0.74x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2 | ||||
| Eye point / Diopter adjustment | Approx. 20 mm at infinity; -1.0 m-1 / -4.0 - +4.0 (dpt) | ||||
| Eye sensor | Yes | ||||
| Display speed | 120fps / 60fps | ||||
| Display time lag | Approx. 0.005sec | ||||
| REAR MONITOR | Type | TFT LCD monitor with static touch control | |||
| Monitor size | Free-angle, 3.0-inch (7.5cm), 3:2 aspect | ||||
| Pixels | Approx. 1.84 million dots | ||||
| Field of view | Approx. 100% | ||||
| FOCUS | Type | Contrast AF system | |||
| DFD technology | Yes | ||||
| Focus mode | AFS (Single) / AFC (Continuous) / MF | ||||
| AF mode | Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3 (Full area touch is available) (Scalable AF frame size and flexible AF position) |
||||
| AF detective range | EV -6 - 20 (F1.4, ISO100 equivalent, AFS) | ||||
| AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction | ||||
| AF assist lamp | Yes | ||||
| AF lock | Set the Fn button in custom menu to AF lock | ||||
| Post Focus / Focus Stacking | Yes / Yes | ||||
| Others | AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control | ||||
| EXPOSURE CONTROL | Light metering system | 1,728-zone multi-pattern sensing system | |||
| Light metering mode | Multiple / Center Weighted / Spot / Highlight Weighted | ||||
| Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) | ||||
| Exposure mode | Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure | ||||
| ISO sensitivity (Standard output sensitivity) | Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO | ||||
| Dual Native ISO | [Normal] Native ISO: 100, 640 Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO [V-Log] Native ISO: 640, 4000 Auto: Auto / 320* / 640-51200 *Extended ISO [HLG] Native ISO: 400, 2500 Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO [Cinelike D2 / Cinelike V2] Native ISO: 200, 1250 Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO |
||||
| Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) | ||||
| AE lock | Set the Fn button in custom menu to AE lock | ||||
| IMAGE STABILIZATION SYSTEM | Image sensor shift type (5-axis / 5.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.] Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.] |
||||
| WHITE BALANCE | White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 | |||
| White balance adjustment | Blue/Amber bias, Magenta/Green bias | ||||
| Color temperature setting | 2500-10000K in 100K | ||||
| SHUTTER | Type | Focal-plane shutter | |||
| Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25 Creative Video M mode / MF mode: 1/16,000 - 1/2 |
||||
| Self timer | 10sec, 3 images / 2sec / 10sec | ||||
| Remote control | Remote control by DMW-RS2 (sold separately) | ||||
| Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) | ||||
| BRACKET | AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst | |||
| Aperture bracket | 3, 5 or all positions in 1 EV step | ||||
| Focus bracket | 1 to 999 images, focus steps can be set in 10 levels | ||||
| White balance bracket | 3 images in blue/amber axis or in magenta/green axis, color temperature setting | ||||
| BURST SHOOTING | Burst speed | Mechanical shutter / Electronic front curtain shutter | AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
||
| Electronic shutter | AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
||||
| Number of recordable images | RAW / RAW+JPEG: More than 24 images JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.) * When recording is performed under the test conditions specified by Panasonic. |
||||
| 6K PHOTO** / 4K PHOTO** | Burst speed | 6K PHOTO: 30 frames/sec 4K PHOTO: 60 frames/sec, 30 frames/sec |
|||
| Exif information | Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.) | ||||
| FLASH | Flash type | TTL External Flash (sold separately) | |||
| Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. | ||||
| Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. | ||||
| Flash output adjustment | 1/3EV step ±3EV | ||||
| Synchronization speed | Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode. | ||||
| Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch | ||||
| EXTRA TELE CONVERSION | 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording. | ||||
| PHOTO STYLE | Photo Style | Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 (HLG) / My Photo Style 1-10 | |||
| Picture adjustment | Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / ISO / WB *Adjustable settings vary depending on the Photo Style mode. |
||||
| FILTER | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine* *For photos only. |
||||
| MOTION PICTURE FUNCTION | Luminance level | 8-bit: 0-255 / 16-235 / 16-255 10-bit: 0‒1023 / 64‒940 / 64‒1023 |
|||
| Wave form monitor | Yes | ||||
| LUT display | LUT View Assist (Monitor) / LUT View Assist (HDMI) | ||||
| Time code | Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.) | ||||
| Knee control | Yes (in Like709 mode) | ||||
| FUNCTION BUTTON | REC | Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Post-Focus / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Slow & Quick Setting / Time Code Display / Sound Rec Level Disp. / Sound Rec Level Adj. / Sound Rec Level Limiter / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / Waveform Monitor / Anamorphic Desqueeze Display / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Restore to Default | |||
| PLAY | Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default | ||||
| LEVEL GAUGE | Yes | ||||
| OSD LANGUAGE | Please refer to "OSD" Sheet | ||||
| PictBridge compatible | |||||
| INTERFACE | USB | SuperSpeed USB 3.1 Gen1 Type-C | |||
| HDMI*** | Monitor-through | When a mode other than [4K/60p]/[4K/50p] is selected for [Picture Quality]: 4:2:2 10bit, 4:2:2 8bit, 4:2:0 8bit When [4K/60p]/[4K/50p] mode is selected in [Rec Quality]: 4:2:2 10bit*, 4:2:0 8bit *When 4:2:2 10bit mode is selected, it is not possible to record motion picture or still picture on the memory card in the camera unit. Info Display: ON / OFF (selectable) HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable) |
|||
| Playback | microHDMI TypeD / VIERA Link, Audio: Stereo NTSC (59.94Hz): Auto / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p PAL (50.00Hz): Auto /4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p |
||||
| Remote input | φ2.5mm | ||||
| External microphone / external audio device input | φ3.5mm for external microphone / external audio device MIC (Plug-in Power) / MIC / LINE is selectable. Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately). |
||||
| Headphone output | φ3.5mm | ||||
| Microphone | Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately). | ||||
| XLR microphone | Yes with DMW-XLR1 (sold separately) | ||||
| Speaker | Monaural | ||||
| SD card slot | SD Memory Card, SDHC Memory Card, SDXC Memory Card Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards. |
||||
| WIRELESS | Wi-Fi | 2.4GHz (STA/AP) (IEEE802.11b/g/n) 5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries. Please refer to "Wi-Fi" Sheet |
|||
| Bluetooth | Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) | ||||
| DUST AND SPLASH RESISTANT* | Yes. *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. |
||||
| POWER | Battery | Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging |
|||
| Battery life (CIPA standard) | Approx. 440 images (rear monitor), 470 images (LVF), 1,500 images (Power Save LVF mode*) with S-R2060 *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. |
||||
| Continuous recordable time (Motion picture)** | MP4 [4K/60p]: Approx. 110 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged. MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 100 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged. |
||||
| Actual recordable time (Motion picture)** | MP4 [4K/60p]: Approx. 55 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged. MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 50 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged. |
||||
| Battery grip | DMW-BGS5 (sold separately) | ||||
| DIMENSIONS / WEIGHT | Dimensions (W x H x D) | Approx. 132.6 x 97.1 x 81.9 mm / 5.22 x 3.82 x 3.22 inch (excluding protrusions) | |||
| Weight | Approx. 714g / 1.58 lb (SD Memory Card x 1, Battery, Body) Approx. 630g / 1.39 lb (Body only) |
||||
| OPERATING ENVIRONMENT | Operating temperature | 0oC to 40oC (32oF to 104oF) | |||
| Operating humidity | 10%RH to 80％RH | ||||
| STANDARD ACCESSORIES | Software | Recording | LUMIX Tether ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac) |
||
| Playback / Editing | ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet. https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows) ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet. http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac) |
||||
Questions & Answers
Panasonic Lumix DC-S5 Mirrorless Kit w/ Lumix S 20-60mm f/3.5-5.6 L-Mount Lens
Looking for a personal touch? Not sure if you are choosing the right product? Our staff is here to help.
We want to make sure you get the right product for your needs.
Our staff will help you understand the options available so you can be confident in your purchase.
As the country’s leading Professional Imaging retailer, Vistek is in the perfect position to ensure you make the right choice.
Contact us today for a personal touch.
Featured Products
1 review
Panasonic Lumix DC-S5 Mirrorless Kit w/ Lumix S 20-60mm f/3.5-5.6 L-Mount Lens
Overstock$2,699.99
SAVE $700
Panasonic Lumix DC-S5 Mirrorless Kit w/ Lumix S 20-60mm f/3.5-5.6 L-Mount Lens
Demo Condition: EXC$2,379.99
SAVE $1,020
