Product Highlights
- Mobile Journalism / Content Creation
- 550MHz ~ 960MHz Frequency Range (Tx /Rx)
- 2 m (6') Cable Length
- Omnidirectional Pickup Pattern
- 20 Hz - 20 kHz Frequency Response (Mic)
- Locking 3.5mm TRS Connection
- Up To 9+ / 8+ hrs Battery Life (Tx / Rx)
Saramonic K9-US Professional Dual Digital UHF Wireless Mic System w/ 32-Bit Float, Time Code, Mini Lavaliers
Saramonic K9-US Professional Dual Digita...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Overview

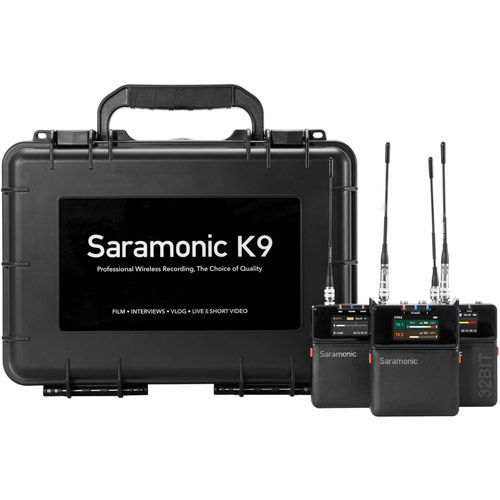

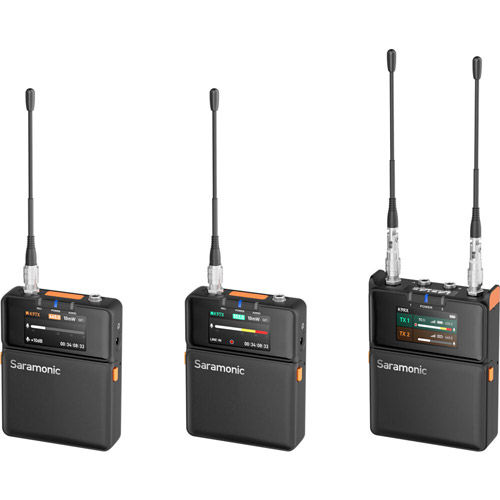

K9-US Professional Dual Digital UHF Wireless Mic System
Performance, reliability and pro features that 2.4 GHz just can't match.
A premium, dual-channel UHF digital wireless lavalier microphone system designed for filmmakers, videographers, and high-level content creators who demand crystal-clear, broadcast-quality audio.
Delivering Ultra-Wide UHF Spectrum, Pro-Level Performance and Reliable Power
Operates in the ultra-wide 550–960MHz spectrum with GPS-based frequency updates, auto frequency scanning, and selectable RF output power. Delivers a strong, reliable transmission even in crowded RF environments, outperforming 2.4GHz systems.

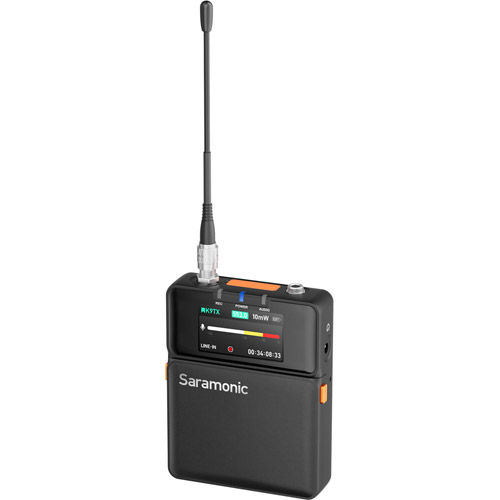

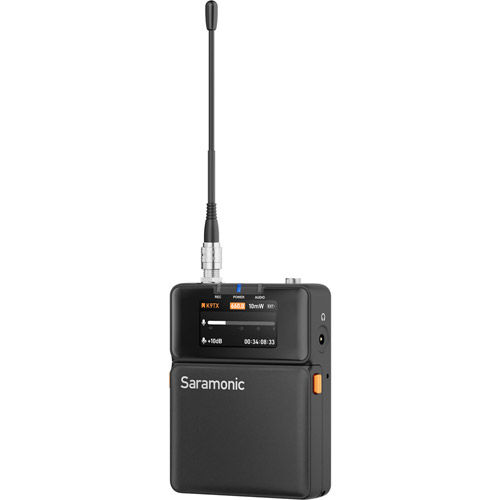

Powerful Bodypack Transmitters with Industry-Leading Dynamic Range
Record cinema-quality sound with the K9TX bodypack transmitters that offer locking 3.5mm TRS mic/line inputs and a remarkable 130dB dynamic range to capture every nuance—from soft whispers to loud vocal bursts with stunning clarity.
Miniature Lavaliers that are Discrete, Rugged and Ready for Real Action
Two ultra-compact 3mm lavaliers are included. Engineered for durability and discretion, they deliver broadcast-quality audio performance in even the toughest environments. Featuring IP67 water and dust resistance and Kevlar reinforced cables, providing exceptional strength and reliability from desert shoots to stormy weather.

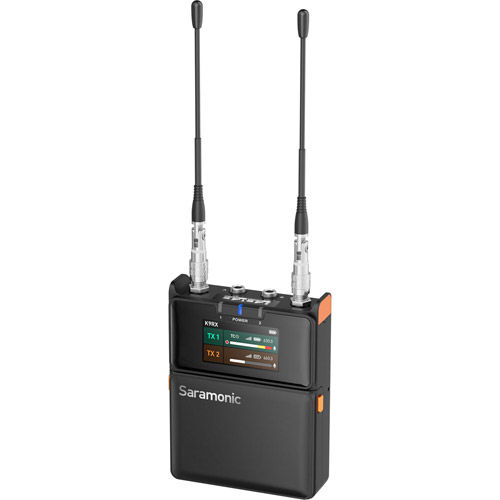

Portable Dual Receiver with Dual LED Screen and Flexible Output Options
The lightweight dual receiver offers both analog (120dB) and digital output options. A top-mounted LED display makes status monitoring easy in audio bags or on camera. Elbow-style antennas ensure optimal positioning, while SMA connectors support antenna distribution systems and external antennas for added stability.
32-Bit Float Onboard Recording Transmitters
Transmitters features on-board 24-bit and 32-bit float recording, perfect for environments with heavy RF interference. The included 32GB microSD cards (expandable to 256GB) offer extensive recording capacity and peace of mind in challenging recording environments.
Advanced Timecode Synchronization
Your recordings are always in sync with built-in frame-accurate timecode synchronization. Jam sync to external timecode sources via 3.5mm, or wirelessly with the Saramonic TC NEO timecode generator (sold separately). With 8 programmable sync groups, managing complex multi-system setups has never been easier.
Total Control with the Saramonic System Mobile App
Take full control of your setup with the Saramonic System app. Remotely manage frequencies, gain, power, mute, transmitter recording, timecode sync, and more without touching the hardware. Enhance your workflow and ensure your audio remains flawless, especially on fast-paced film sets or a dynamic live shoot.

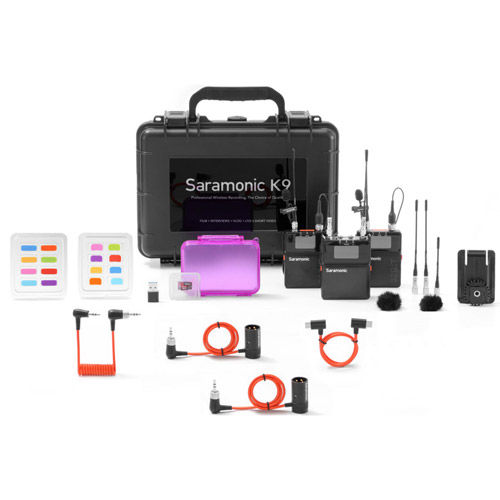

What's Included
2x TransmittersReceiver
6x SMA Elbow Antennas for TX
6x SMA Antennas for RX
Cold Shoe Mount
3x Belt Clips
2x Lavalier Microphones
2x Foam Windscreens
2x Fur Windshields
2x Lavalier Mic Clips
Lavalier Mic Case
USB-C to USB-A Adapter
2x 32GB Micro SD Cards
2x 3.5mm TRS to XLR Audio Cables
USB-C to USB-C Data Cable
3.5mm TRS to TRS Audio Cable
3x Lithium Iron Battery Packs
Portable Carrying Case
32x Colored Tags
Antenna Length
Frequency Reference Card
Reviews
Product Specifications
K9-US Professional Dual Digital UHF Wireless Mic System |
|
|---|---|
Transmitter |
|
| RF Modulation | Proprietary Digital RF Modulation |
| RF Freq Range | 550MHz ~ 960MHz (Assign local legal frequency bands based on the region) |
| RF Power | 10mW, 25mW, 50mW, 100mW |
| RF Frequency Step | 100KHz |
| RF Bandwidth | 200KHz |
| Channel RF Spacing | 700KHz |
| Antenna Connector | 50Ω SMA |
| Dynamic Range | 130dB |
| Distortion | <0.5% |
| Frequency Response | 20Hz ~ 20kHz |
| Selectable Low Cut | OFF, 75Hz, 100Hz, 150Hz |
| Mic Power/Input Select | MIC-3V, MIC-5V, Line-Level |
| Mic Input Connector | 3.5mm TRS |
| Gain Range | 0dB ~ 30dB |
| ADC Sampling Rate | 48KHz |
| Bit Depth | 24bit |
| Clock Accuracy | 0.15 PPM (1 frame out in 48 hours) |
| Timecode Type | LTC (SMPTE) |
| Timecode Framerates | 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF, 50, 60 |
| Media | MicroSD Card (Up to 256Gb) |
| File Format | WAV |
| Sample Rate | 48KHz |
| Record Format | 24-Bit or 32-Bit Float |
| MIC Power | MIC-3V, MIC-5V, LINE |
| Equivalent Input Noise | -132dBV (-130dBu) max (A-weighting, gain= 30dB, 150ohm source impedance) |
| Power Supply | External Battery / Power |
| Battery Life | Up to 9+ Hours with High-Quality Lithium-Ion AA’s |
| Dimensions | 80 x 62 x 19mm (3.14 x 2.44 x 0.74") |
| Weight | (85g) (excluding batteries and antenna) - (120.5g) (including batteries and antenna) |
| Operating Temperature | -20°C ~ +45°C |
| Storage Temperature | -30°C ~ +60°C |
Receiver |
|
| RF Modulation | Proprietary Digital RF Modulation |
| RF Frequency Range | 550MHz ~ 960MHz (Assign local legal frequency bands based on the region) |
| RF Power | 10mW, 25mW, 50mW, 100mW |
| RF Frequency Step | 100KHz |
| RF Bandwidth | 200 kHz |
| Channel RF Spacing | 700KHz |
| Antenna Connectors | 2x 50Ω SMA |
| Receiver Output | 2x Locking 3.5mm Analog Outputs & USB-C Digital Output |
| Analog Output Dynamic Range | 120dB |
| Distortion | <0.5% |
| DAC Bit Depth | 24-bit |
| Output Type | Mono, Stereo, Headphone |
| Power Supply | External Battery / Power |
| Battery Life | Up to 8+ Hours with High-Quality Lithium-Ion AA’s |
| Dimensions | 88.1 x 66.1 x 23.6mm (3.46 x 2.6 x 0.92") |
| Weight | (112g) (excluding batteries and antennas) - (157.5g) (including batteries and antennas) |
| Operating Temperature | -20°C ~ +45°C |
| Storage Temperature | -30°C ~ +60°C |
Lavalier Microphone |
|
| Pickup Pattern | Omnidirectional |
| Max. SPL | 118dBSPL |
| Dynamic Range | 110dB |
| Sensitivity | -38dB (1.5V, 2.2K, at 1KHz) |
| Equivalent Noise Level | Typically, 25dB (A-weighted, Equivalent Sound Pressure Level) |
| Signal-To-Noise Ratio | >68dB |
| Operating Voltage | 1.3V to 5.0V |
| Frequency Response | 20Hz~20KHz |
| Distortion | <3% |
| Weatherproof Standard | IP67 |
| Operating Temperature | -20℃~+70℃ |
| Tensile Performance | ≥50 N |
| Tensile Strength Maximal pulling force | ≥50 N |
| Weight | 11 g (0.388 oz) |
| Cable Length | 1.8 m (5.9') |
| Mic Head Size | Ø3mm x 17.5mm |
| Connector | Locking 3.5mm TRS with Sennheiser Style Pin-Out |
