SD-10 Spectrophotometer Color Measuring Device, Bluetooth
SD-10 Spectrophotometer Color Measuring Device, Bluetooth
SD-10 Spectrophotometer Color Measuring Device, Bluetooth
SD-10 Spectrophotometer Color Measuring Device, Bluetooth
No Reviews Q & A
Write your Review
Product Highlights
  • 400 - 700 mm Spectral Range
  • USB-C Connectivity
  • Lithium-Ion Battery
Epson SD-10 Spectrophotometer Color Measuring Device, Bluetooth Epson SD-10 Spectrophotometer Color ...
$1,199.00 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

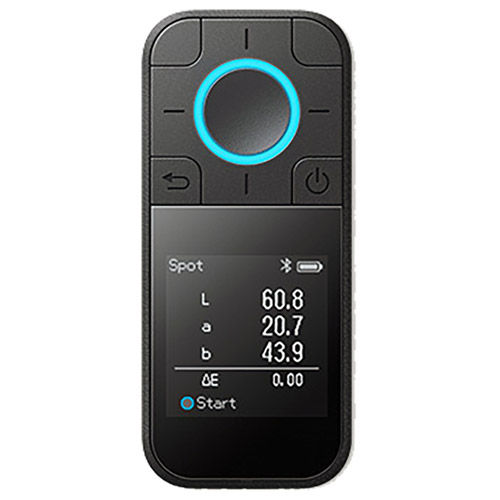

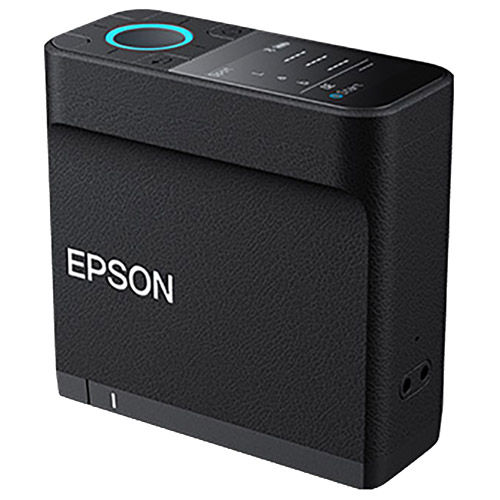

SD-10 Spectrophotometer

View colour on a whole new level with the full-featured, portable Epson SD-10 Spectrophotometer, combining accuracy and speed to give you the colour information you need to make critical colour decisions. The first spectrophotometer engineered by Epson, this easy-to-use device measures colours accurately, consistently and quickly. Its compact size makes it easy to carry, and its embedded battery allows you to take measurements virtually anywhere, anytime. And, with Bluetooth wireless connectivity, the available Epson Spectrometer mobile app, and workflow integration, the SD-10 can help you elevate your colour capabilities.

Key Features:

  • Full-featured spectrophotometer: Meets industry-standard measurement capabilities: M0, M1e and M2 modes
  • Easy-to-use, portable design: Compact size makes it easy to carry; battery power allows you to perform measurements from virtually anywhere
  • Standalone operation: Built-in LCD display lets you view colour measurements quickly
  • Wireless Bluetooth connectivity: Connect to a mobile device or computer using Bluetooth Low Energy technology
  • Epson Spectrometer mobile app: Versatile mobile app allows for streamlined collaboration and improved workflow
  • Large aperture for textured surfaces: 7.6 mm aperture measures up to 1.5 times the area covered by similar products, allowing for greater accuracy
  • Integration with Epson Edge Print software: Directly measure and replace colors within the print workflow; connect via Bluetooth or USB
  • Build colour libraries: Use the mobile app to create colour palettes, find similar PANTONE colors and record measurements
  • Colour confidence: Use the mobile app to identify whether your Epson printer, media and ICC profile can reproduce a measured colour

What's Included

SD-10 Spectrophotometer
Protective Travel Case
Wrist Strap
USB-A to USB-C Cable

Reviews

Product Specifications

SD-10 Spectrophotometer
Spectral Range 400 nm–700 nm
Photometric Range 10 nm (interpolated by software)
Light Source LED
Measurement Modes Spot, Comparison (Spot), Comparison (Scan)
Measurement Conditions M0: UV included (ISO 13655:2017) M1e: D50 (equivalent to 13655:2017) M2: UV excluded (ISO 13655:2017)
Measurement Aperture 7.6 mm
Measurement Geometry 5˚ circumferential/normal geometry (45˚ c: 0˚)
Illuminant D50, D65, A, F1, F2, F3, F7, F8, F9, F10, F11, F12
Observer Angle 2˚, 10˚
Delta E Methods ∆E 2000, ∆E 1994 Graphic Arts, ∆E 1994 Textiles, ∆E 1976
Memory 100 colors (Spot Mode)
Interinstrument Agreement ∆E 2000 Average: 0.4 or less ∆E 2000 Maximum: 1.0 or less Deviation from SD-10 Manufacturing Standard for 12 BCRA Color Tiles: D50, 2˚ Ambient Temperature: 23˚ C (73.4˚ F) Humidity: 50%
Short-Term Repeatability ΔE 1994: 0.1 Average of 10 Measurements Every 3 Seconds on White Tile: D50, 2˚ Ambient Temperature: 23˚ C (73.4˚ F) Humidity: 50%
Colour Difference from BCRA Tile Values ΔE 2000 Average: 1.0 or less Deviation from the Color Measurement Value for 12 BCRA Color Tiles by a Measuring Instrument Traceable to the National Metrological Standard: D50, 2˚ Ambient Temperature: 23˚ C (73.4˚ F) Humidity: 50%
General Connectivity: Bluetooth Low Energy 4.0, USB-C (Full-Speed USB 2.0)
Languages: English, French, German, Dutch, Italian, Spanish, Portuguese, Turkish, Russian, Simplified Chinese, Traditional Chinese, Korean, Japanese
Battery Type: Lithium ion
Capacity: 1,860 mAh
Operating Conditions Temperature: 32˚ F–95˚ F Humidity: 5%–85% RH noncondensing
Weight and Dimensions Shutter Open: 1.38" x 3.15" x 3.15"
Shutter Closed: 1.38" x 3.15" x 3.06"
Weight: 6.56 oz
