Elinchrom EL-Skyport WiFi

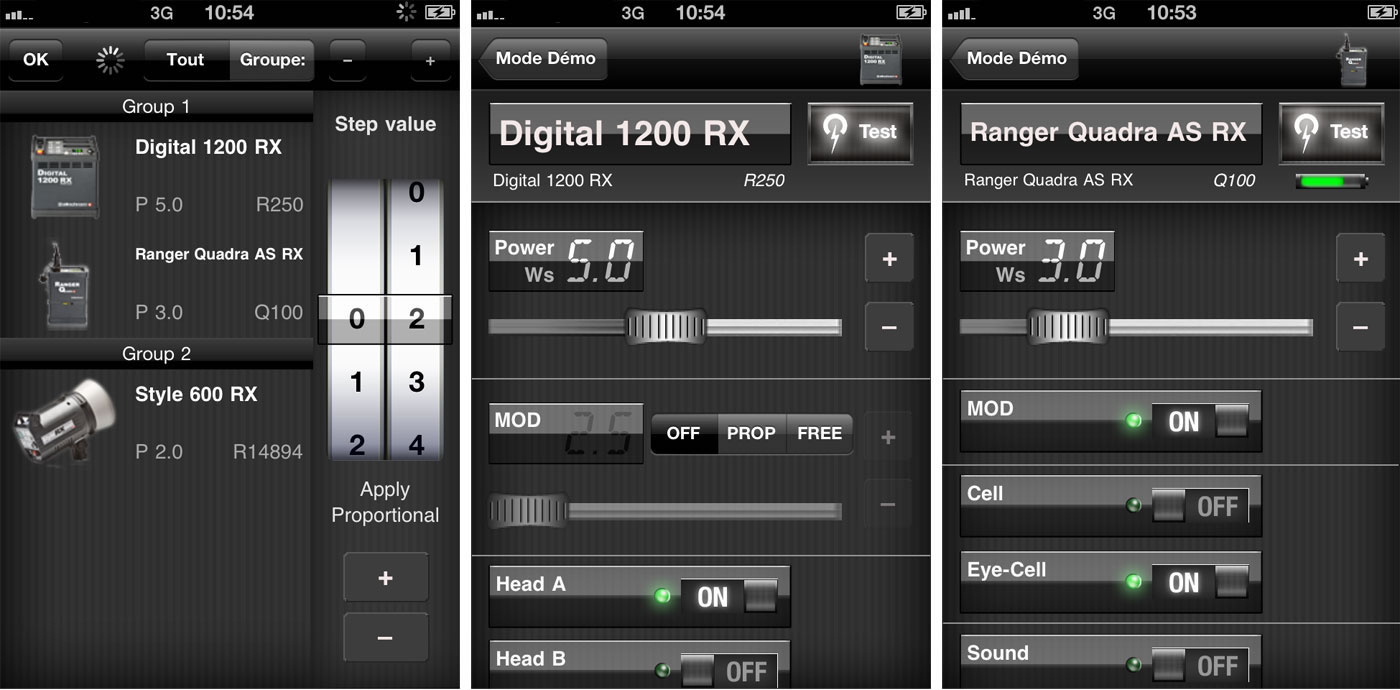

With the Elinchrom EL-Skyport WiFi module and your Apple iPhone, iPad, or iPod Touch, you can now control your Elinchrom RX flash lights via remote control!
- Works with iPhone, iPad, iPod Touch
- Internal rechargeable Li-Ion battery, one charged battery lasts up to 10 hours
- Li-Ion battery recharges in approx. 3 hours
- Integrated intelligent quick-charge circuit
- Multi-Voltage, Multi-Connector EL-Skyport Universal Charger
- Indication LED’s for charge and operating modes
- Multi use, as EL-Skyport Universal Receiver module, when synchronised directly with a flash unit or as a EL-Skyport RX WiFi module to enable remote control functions for Elinchrom flash “RX” units with iPhone™, iPad™, iPod Touch™
- 3.5 mm SYNC-socket for all common flash units, when used directly as a “Universal Receiver”
- EL-Skyport NORMAL SYNC and SPEED SYNC mode settings
- Settable 8 frequency channels and 4 workgroups
- Interference free operation with 40 Bits security
- Distance range: WiFi up to 50 m outdoors and 20 m indoor.
- Distance range: EL-Skyport up to 100 m outdoors and 40 m indoor.

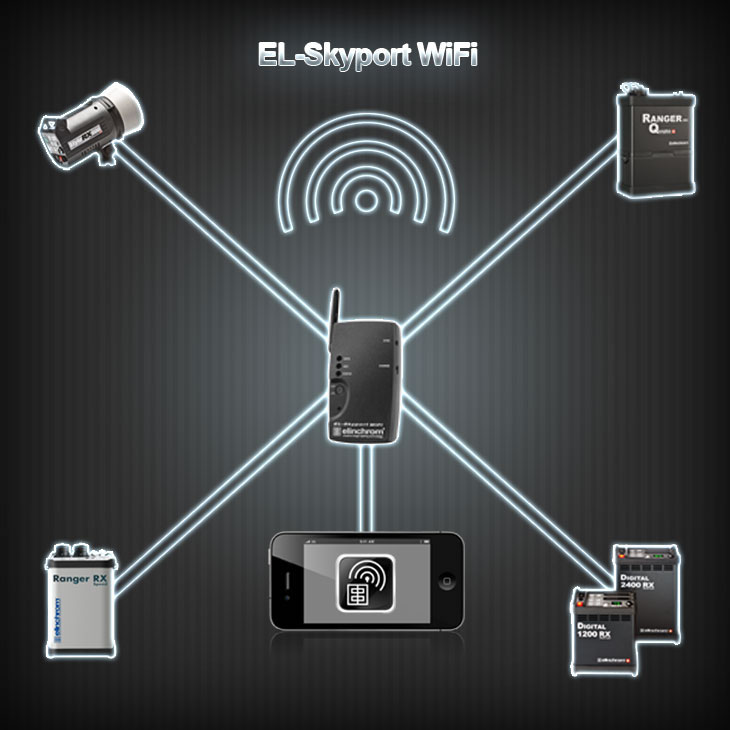

- Detection of all Elinchrom RX units:
1. Digital RX 1200 / 2400 (with EL-Skyport Transceiver RX module connected to the flash unit).
2. Style RX 300 / 600 / 1200 (with EL-Skyport Transceiver RX module connected to the flash unit).
3. Ranger RX / RX SPEED / RX SPEED AS (with EL-Skyport Transceiver RX module connected to the flash unit).
4. Ranger RX Quadra AS (with built-in EL-Skyport RX receiver).
- EL-Skyport Universal Receiver modules
- Wireless Firmware Update possibility with EL-Skyport 3.0 PC/MAC software
- Automatic Auto-Standby to save battery power, when the module is not used for more than 1 hour
- Camera triggering capability; requires extra camera cables
- Designed, engineered and made in Switzerland
Compatible RX units include:
- Compacts: Style RX 300 / 600 / 1200
- Battery Power Packs: Ranger Quadra RX / Ranger RX / Ranger RX Speed / Ranger RX Speed AS
- Power Packs: Digital RX 1200 / 2400
What do you need to make it work:
- EL-Skyport RX WiFi module
- EL-Skyport charger with USA, EURO, UK adapters
- Sync cable 40 cm, 3.5 mm - 3.5 mm jack
- Sync cable 40 cm, 3.5 mm – EL Standard Socket
- Sync Adapter 6.3 mm – 3.5 mm Jack
- Sync Adapter 3.5 mm – PC (female)
- Limited Warranty
