Eizo CG245W-BK 24" Wide Screen TFT LCD Monitor Black CG Edition
The CG245W comes with an industry-first built-in calibration sensor so you can schedule the monitor to self-calibrate at your convenience.
Built-In Calibration Sensor
A built-in sensor is housed within the monitor’s top bezel and swings down over the center top of the screen when calibration begins. This built-in sensor eliminates the need for a third-party calibration device and even operates in portrait mode.
Using either the OSD menu or the bundled ColorNavigator software, you can schedule the ColorEdge CG245W to self-calibrate at a specific time and at specific intervals. You can even schedule calibration for outside of work hours when your computer is turned off and you are no longer present.
Since the PC itself is not necessary for self-calibration, the ability to calibrate the monitor is not dependent on using an operating system supported by the ColorNavigator software. Therefore, a calibrated ColorEdge CG245W can be used with Linux even though ColorNavigator currently does not support this OS.
Correlation with Other Sensors

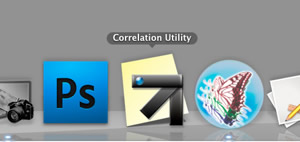

The ColorEdge CG245W can be correlated to the measurement results of an external calibration sensor. This is convenient if the ColorEdge CG245W is used in a work environment with other ColorEdge monitors and one measurement device must be used as a standard for all calibrating. Correlation is done with a new “Correlation Utility” included with the bundled ColorNavigator software.
Simple and Precise Calibration with ColorNavigator
The bundled ColorNavigator software makes calibration both simple and quick. Just input target values for brightness, white point, and gamma. The built-in sensor directly utilizes the monitor's look-up table and creates an ICC profile within minutes. What's more, you can always download the latest version of ColorNavigator for free on eizo.com.
Wide Color Gamut
The monitor reproduces 98% of the Adobe RGB color space so it can display most colors in a digital photo taken in Adobe RGB mode. Furthermore, it also has an sRGB mode to accurately reproduce colors in this narrower but commonly used color space, such as those seen on web pages or digital photos taken in sRGB mode.
Three Inputs Including DisplayPort
Connect with up to three PCs via the monitor's dual DVI-I inputs which accept digital and analog signals, and the DisplayPort (digital) input terminals. With DisplayPort, the monitor can display 10-bit color* which is more than 1 billion colors shown simultaneously. This is 64 times greater than the 16.7 million colors of 8-bit display. The result is even smoother color gradations and noticeably reduced Delta-E between two adjacent colors. *A graphics board and software which support 10-bit output are necessary for 10-bit display.
Brightness and Color Uniformity with DUE

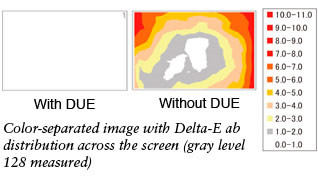

Fluctuations in brightness and chroma on different parts of the screen is a common trait of LCD monitors. To counteract EIZO a digital uniformity equalizer (DUE). DUE utilizes the monitor's 12-bit look-up table (LUT) with an extensive palette of 4,081 grayscale tones for each R, G, and B, and internal calculation accuracy of 16-bits. This ensures a Delta-E difference of 3 or less across the screen.
Factory Adjustment of Gamma
To ensure that each ColorEdge monitor produces the most accurate and consistent color gradations possible, EIZO carefully measures and sets every shade of R, G, and B from 0 – 255 on the production line with the monitor's 12-bit Look-Up Table, to produce a monitor gamma value of 2.2. Should the user prefer a different value, ColorNavigator software can be used to set the gamma value from a range of 1.0 up to 2.6 in increments of 0.1.
Verification Documents Included
EIZO stands behind the quality of the ColorEdge series by including two verification documents with each monitor. One document verifies the uniformity on 25 points across the screen while the other certifies that all 256 color tones on the gamma curve were individually adjusted at the factory.
Brightness and Color Temperature Stability

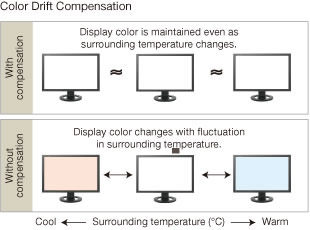

To ensure proper display of color, the ColorEdge CG245W comes equipped with patented EIZO technology that stabilizes the monitor’s brightness level after startup or coming out of power saving mode. Furthermore, a temperature sensor detects and automatically suppresses changes in color and brightness caused by fluctuations in the surrounding temperature.
3D LUT for Better Additive Color Mixture
The monitor utilizes a new EIZO-developed 3D LUT. Whereas a typical 1D LUT adjusts color on separate tables for each red, green, and blue, a 3D LUT accomplishes this on a single, mixed-color cubic table. A 3D LUT improves the monitor's additive color mixture (combination of RGB), a key factor in its ability to display neutral gray tones.
Ideal for Moving Image Work, Too
An overdrive circuit is included to reduce gray-to-gray response time to 5 ms and ensure that moving images look clean and sharp with an absolute minimum of blurring and ghosting.
Shading Hood for Portrait and Landscape Modes
Most shading hoods can only be used in landscape mode, but the ColorEdge CG245W comes bundled with a unique shading hood that is designed for portrait mode as well. Now you can keep the glare off your screen no matter which mode you work in.
Flexible Screen Positioning
The ColorEdge CG245W comes with a “FlexStand” that offers tilt, swivel, 90° rotation for portrait mode viewing, and 174 mm of height adjustment. Its innovative, bearing-less design reduces mechanical wear and the amount of torque required to adjust height.
Color Vision Deficiency Simulation
To avoid creating inconveniences and even dangers for those with color vision deficiency, care must be taken when choosing color schemes for everyday items such as maps, road signs, web sites, and power indicator lights. This monitor can instantly simulate how still and moving images appear to people with two types of red-green (protanopia and deuteranopia) and one type of blue-yellow (tritanopia) color vision deficiency.
LED Buttons and On-Screen Button Guide
For dimly lit work environments, the LED front buttons can be backlight to seven different brightness settings. An on-screen button guide appears above the buttons to indicate what each one is for.
Commitment to Quality
While outsourcing production is now common practice in the monitor industry, EIZO continues to manufacture its products the same way it has throughout its 40 year history — with its own staff at its own factories. This allows EIZO to keep close control over production quality and offer the industry’s only 5-year manufacturer’s limited warranty.
- 1920 × 1200 native resolution
- 850:1 contrast ratio
- 270 cd/m2 brightness
- DisplayPort and dual DVI-I inputs
- Monitor hood included
- 24" Wide Screen TFT LCD
- AC power cord
- signal cables (DVI-D – DVI-D
- DisplayPort – DisplayPort)
- USB cable
- setup guide
- EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual)
- adjustment certificate
- monitor hood
- quick reference
- warranty card
