• Webcode: 426602 • Mfr: PXWZ190
Product Highlights
  • 1/3-type 3 CMOS Sensor
  • 4K UHD (3840x2160) Up to 60fps
  • 28.8-720mm 25x Zoom Lens
  • Built-in Electronic Variable ND Filters
Rebates Available
Sony PXW-Z190 4K 3-CMOS 1/3" Sensor XDCAM Camcorder Sony PXW-Z190 4K 3-CMOS 1/3" Sensor...
Web Availability: In Stock
Vistek Locations
  • Toronto In Stock
  • Ottawa Available for Order
  • Mississauga Available for Order
  • Calgary Available for Order
  • Edmonton In Stock
Please call and verify availability at the store as stock changes daily.

Lease this for: $179.97 Learn More

Overview

PXW-Z190

4K Handheld Camcorder with all-new 1/3-type 3CMOS with 4K 50p/60p* recording capability, 25x zoom lens and advanced Face Detection AF.

This superb all-rounder is the de facto choice for a wide range of 4K and HD single camera shoots with an all-new 1/3-type 3CMOS sensor. A powerful 25x zoom lens with three independent lens rings delivers pin-sharp 4K imaging for almost any professional shooting scenario. Advanced Face Detection AF and Sony’s unique Electronic Variable ND filter making shooting great content stress-free.

4K 50p/60p with a stunning 25x zoom lens

Advanced workflow features
Instant HDR means you can deliver stunning imagery quickly without need for additional colour grading. Dual MI Shoe allows simultaneous use of wireless audio and video lighting, while advanced network performance support is easily enabled when required.

A wealth of formats and features for professionals
Sony’s familiar control layout and robust build quality make this a camera you can rely upon. It supports a wide range of formats including XAVC-Long, DVCAM, MPEG HD422/ MPEG HD* and Proxy 1080i. Dual SD slots, 3G-SDI output and Remote Terminal ensure it can support all workflow scenarios.

4K 1/3-type 3CMOS Sensor
The PXW-Z190 is the world’s first professional camcorder with a 4K (QFHD) 1/3-inch type sensor. Red, blue, and green light are independently captured by separate image sensors within the Exmor RTM system in 3840 x 2160 resolution at up to 60fps. Even if you’re delivering in HD, 4:2:2 10bit recordings will capture detail and image texture that HD sensors simply cannot see.

Advanced Face Detection AF
The PXW-Z190 features newly developed Face detection AF. You can choose between Face Priority AF and Face Only AF. Simply keep the person in frame and however you move to obtain a better angle, you can be confident the PXW-Z190 will keep your subject in pin-sharp focus.

Built-in electronic Variable ND Filters
Sony’s ground-breaking integration of electronic variable ND Filters into the body of a camcorder enables fast, agile shooting. Moving from shadowy interiors to bright sun-lit exteriors is no problem with the PXW-Z190. Unlike conventional optical ND filters, the electronic ND filter on the PXW-Z190 can be controlled from 1/4ND to 1/128ND linearly while ND Filters can be set to fully auto. You can even manually adjust Depth of Field using the iris lens ring, while relying on the PXW-Z190 to maintain constant exposure without changing gain nor shutter speed.

Instant HDR workflow
Shoot, edit and view HDR content in HLG without the need for additional colour grading. Premium content services are switching to HDR and the PXW-Z190 is ready with Hybrid Log-Gamma (HLG) recording, for easy file-based workflows, whilst achieving the image quality of HDR. This simple workflow enables the shooting, editing and viewing of HDR content in HLG, without devoting a lot of time to post-production work and additional colour grading.

Network workflow flexibility

PXW-Z190 comes with 5GHz* and 2.4GHz Wi-Fi as standard – simply turn on and log onto your preferred network. Install the free ‘Content Browser Mobile’ app** on your smartphone to operate the camera remotely controlling Iris, Zoom, Focus WB and other functions from the palm of your hand. One-touch authentication is also possible with smartphones that offer NFC connectivity.

The Z190 is also easily upgraded to offer all the below features with optional CBKZ-SLNW1.

  • High quality QoS Streaming to Network RX station (optional)
  • XDCAM air secure wireless workflow
  • MPEG TS UDP streaming to peripheral common receiver
  • FTP Transfer of proxy clip and high resolution clip to remote servers
  • Wired LAN streaming and file transfer
  • Trimming proxy and high resolution clip prior to sharing

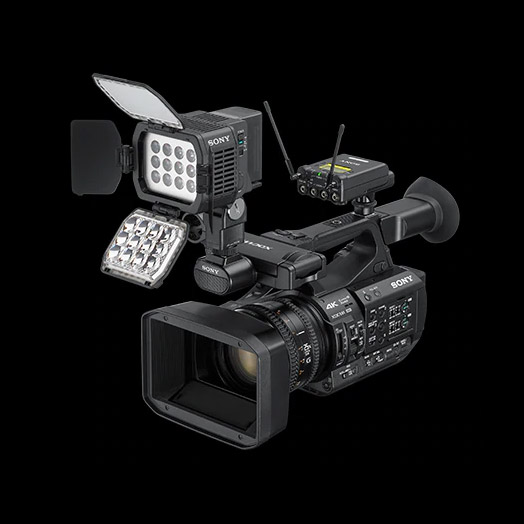

Dual Multi-Interface (MI) Shoe

MI Shoe provides signal connections and coordinated on/off switching to compatible Sony accessories. Connectors at front and back of camcorder maximize operational flexibility. For example, you can connect and control Sony Wireless Microphone systems such as the UWP-D11 or UWP-D12 and the HVL-LBPC light at the same time.* Cable-less connection eliminates the risk of accidental disconnection..


Dual XLR and 4 Channel Audio

The PXW-Z190 offers four channel audio recording with two independent volume dials enabling precision control of external audio inputs, including an MI-shoe attached microphone.


Dual SD media slots

The camcorder is equipped with two SD memory card slots, which can record in either Simul or Relay or Back up mode. Simul mode permits simultaneous recording to two memory cards, ideal for archival purposes. Relay mode automatically switches recording from the first to the second memory card when the first is full to extend recording times. In Back up mode, users can set up the two Start/Stop buttons on the PXW-Z190, one on the grip and one on the camcorder body, to independently start and stop recording on different memory cards while recording in Simul mode.

25x Professional Zoom Lens

Wth three independent rings and large focal length

The PXW-Z190 is equipped with a 25x professional zoom lens able to zoom from 28.8mm to 720mm (35mm equivalent). The 1/3-inch type lens has three independent control rings, which allows manual control of focus, zoom and iris, making for better and faster adjustment.

The image can be enlarged without any picture degradation in an HD mode and a 50x zoom equivalent image is captured with sensor cropping extender.

What's Included

PXW-Z190 4K XDCAM Camcorder
Lens hood (Pre-installed)
EVF eyecup
Battery pack BP-U30
AC Adapter/charger BC-U1A
Power Code
USB cable
Warranty Booklet
Operating instructions

Reviews

Product Specifications

PXW-Z190

Mass Approx 2.3 kg (body)
Approx. 5 lb 1.1 oz (body)
Approx. 2.8 kg (with lens hood, eyecup, BP-U30 battery, a SD memory card)
Approx. 6 lb 2.8 oz (with lens hood, eyecup, BP-U30 battery, a SD memory card)
Dimensions (W x H x D) 190.0 × 202.0 × 419.7 mm (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
7 1/2 x 8 x 16 1/2 inches (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
Power Requirements DC In: 12V,
Battery: 14.4V
Please use genuine Sony batteries to ensure correct and safe operation
Power Consumption Approx. 22W
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 29W
(while recording with LCD On, EVF On when the external device connector is used.)
Operating Temperature 0°C to 40°C
32°F to 104°F
Storage Temperature -20°C to +60°C
-4°F to +140°F
Recording Format (Video) <XAVC Long>
XAVC-L QFHD mode:
VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
XAVC-L HD 50 mode:
VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
XAVC-L HD 35 mode:
VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
XAVC-L HD 25 mode:
VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC

<DVCAM>
DVCAM mode:
CBR, 25Mbps, DVCAM
Recording Format (Audio) <XAVC Long>
XAVC-L mode:
LPCM 24-bit, 48kHz, 4 channels

<DVCAM>
DVCAM mode:
LPCM 16-bit, 48kHz, 4 channels
Recording Frame Rate <XAVC Long>
XAVC-L QFHD 150 mode:
3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode:
1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280x720/59.94P, 50P
XAVC-L HD 35 mode:
1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L HD 25 mode:
1920x1080/59.94i, 50i

<DVCAM>
DVCAM mode:
720x480/59.94i, 29.97PsF 720x576/50i, 25PsF
Recording/Playback Time <XAVC Long>
XAVC-L QFHD 150 mode

When using 128GB memory card:
Approx. 88 minutes
XAVC-L HD 50 mode

When using 128GB memory card:
Approx. 240 minutes
XAVC-L HD 35 mode

When using 128GB memory card:
Approx. 325 minutes
XAVC-L 25 mode

When using 128GB memory card:
Approx. 445 minutes

<DVCAM>
When using 128GB memory card: Approx. 425 minutes
Recording Format (Proxy Audio) XAVC Proxy: AAC-LC, 128 kbps, 2 channels
Recording Format (Proxy Video) XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920x1080, 9Mbps
1280x720, 9Mbps
1280x720, 6Mbps
640x360, 3Mbps
480x270, 1Mbps
480x270, 0.5Mbps
