Overview

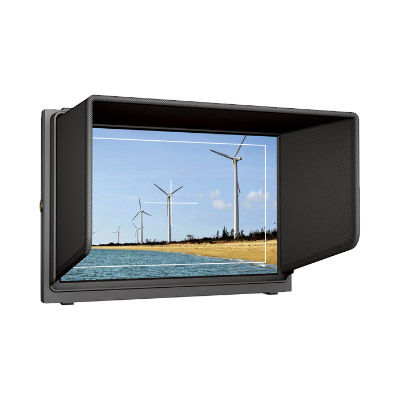

Introducing TM1018, Lilliput's powerful new addition to the field monitor range.

With multitouch capacitive menu functionality and a crystal clear IPS panel, things seem even better for the filmmaker with an eye for quality

Optimised for the professional film maker, the TM1018/O/P is a prime example of Lilliput's push for higher and higher quality products using the latest technologies. The capacitive touchscreen uses the same technology used in high end smart phones and the IPS screen panel is the latest in the range of high resolution LCD technology to give you more detail on the screen. This functionality allows control over the myriad range of functions available for this top of the range field monitor, including peaking, focus assist, waveform analysis and much more!

10 inch monitor with wide screen aspect ratio

The TM1018's 10.1" LCD panel is great for users who need a field monitor that is lightweight and easy to carry around. The wide screen aspect ratio lends itself well to all kinds of professional applications.

High contrast ratio

The TM1018 provides even more innovations to pro-video customers with its super-high contrast LCD. The 800:1 contrast ratio produces colours that are vivid, rich - and importantly - accurate.

Complete range of AV inputs

Due to HDMI, component and composite video inputs on the TM1018, it can be found in all kinds of pro video applications. You can find the TM1018 in TV broadcast rooms, security monitoring rooms, audio visual installations, and camera crews.

Three different mounting options

Like the FA1011, the TM1018 can also features a desktop stand and VESA 75 mount. However, the TM1018 also has the option of being mounted by ¼ inch BSW thread. This makes the TM1018 perfect for mounting on cameras and tripods.



Reviews

Product Specifications

Detailed Specifications
Screen size (diagonal) 10.1"
Aspect ratio 16:9
Resolution 1280×800 (native), 1920×1080 (maximum) pixels
Scan frequency 60-72 Hz
Response time 20 ms
Viewing angle 170º x, 170º y
Brightness 350 cd/m²
Contrast ratio 800:1
LCD backlight LED
Video inputs HDMI, VGA, component, composite
Audio outputs <1.2W Speaker, 3.5mm Headphone Output
Touch screen inputs Capacitive
Input power source DC 12V
Operating temperature -20 to 60 deg C
Mount type VESA 75, desktop stand
Dimensions (WxDxH) 250 x 29.6 x 170 mm
Weight 1144 g
