Product Highlights
  • 7" Touchscreen LCD Monitor
  • 1920 x 1200 Max. Resolution
  • In-Plane Switching IPS Technology
  • HDMI / HD-SDI / SD-SDI / 3G-SDI Inputs
  • HDMI / SDI / Audio / Power In / USB Connectors
  • 1000:1 Contrast Ratio
  • 1800nits Brightness
  • 160° View Angle
Small HD Cine 7 ARRI Kit Small HD Cine 7 ARRI Kit
$3,809.00 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.
Lease this for: $145.88 Learn More

Overview

Cine 7 Arri Kit

Full HD 7-inch Touchscreen Monitor with DCI-P3 Color and 1800 nits brightness

The New Industry Standard 7”

Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and integrated Teradek RT and Bolt functionality.

Camera Control for ARRI

Compatible with ARRI ALEXA Mini, ALEXA Mini LF and AMIRA cameras.

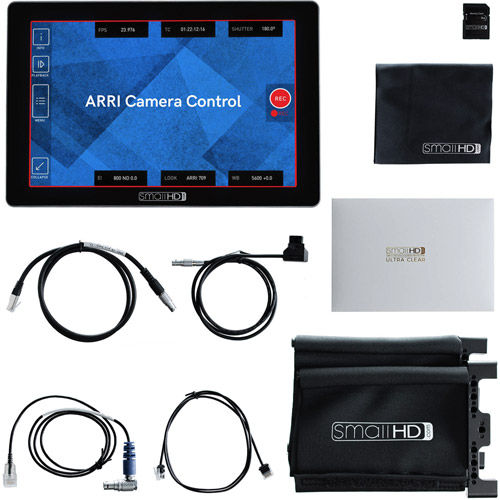

What's Included

Cine 7 Arri Kit
Sony L Series Battery Bracket (Smart 7 Monitor Series)
LEMO to D-Tap/P-Tap Power Cable 91 cm (36")
7" Sun Hood (Smart 7 Monitor Series)
Arri Alexa Camera Control Cable
Arri Alexa Camera Control Cable (Right Angle)
Camera Control for Arri (Software Only)
8GB SD Card
Cleaning Cloth
SMART-7-SUNHOOD

Reviews

Product Specifications

Cine 7 Arri Kit

Display


Panel Type IPS LCD
Diagonal Size 7.02
Resolution 1920x1200
Pixel Density 322 ppi
Aspect Ratio 0.6736111111111112
Active Area 5.95 x 3.72
Brightness 1800 Nits
Contrast 1000:1
Gamut 100% DCI-P3 Coverage
Colour Depth 10-bit Processing (8-bit panel)
Viewing Angle 160
Backlight Type LED
Adjustable Backlight Yes

Input Signal


3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal


3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type


SDI BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 3.5mm 3-pin Stereo Headphone Jack
Power In 2-Pin Locking
USB USB 2.0 Micro-B receptacle

Controls


Primary Touchscreen
Record Capture Image Capture Tool

Power


Connector LEMO
Voltage DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Battery Types L-Series (included), V Mount, Gold Mount
Overload Protection DC input: Reverse polarity
Battery Chemistry Li-Ion
Battery Charging Time Monitor does not support the charging of batteries

Software


Pixel Zoom 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate Automatic or Manual Control
Image Flip Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Colour Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual - User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page
LUT Import via SD Card or USB Storage Device
Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel

Environmental


Item Weight / Package Weight 20 oz / 32 oz
Height (in) 4.67
Width (in) 1.32
Length / Depth (in) 7.09
Compliance FCC, IC, CE, RoHS
Operating Temperature 30F to 100F
Storage Temperature 0F to 120F
Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction Anodized aluminum chassis
