Product Highlights
- G50: 470-534 MHz Frequency Range
- 100 m (330') Range
- XLR / 6.35mm (1/4") Connection
- Steel / Aluminum Housing
- 100-240 VAC Power
Shure ULXD4Q Quad-Channel Digital Wireless Receiver (G50: 470 to 534 MHz)
Shure ULXD4Q Quad-Channel Digital Wi...
$9,289.00
Add to Cart
FREE SHIPPING
Available
Web Availability:
Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Lease this for: $340.91 Learn More
Overview

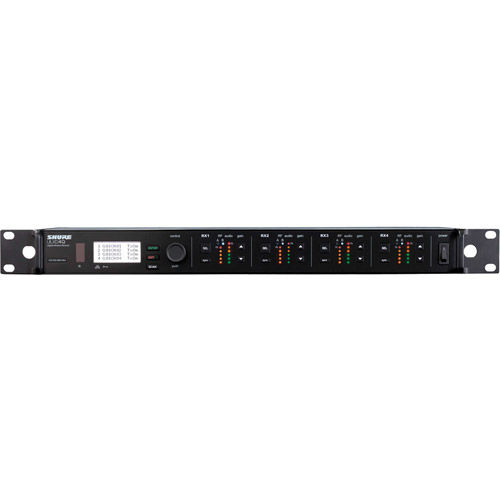

ULXD4Q Quad-Channel Digital Wireless Receiver
Digital quad wireless receiver offers an intelligent four-channel option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 64 MHz tuning range, and AES 256 encryption for security.
Key Features:
- Four receivers in a rugged 1RU metal chassis with internal power supply
- Up to 64 MHz tuning range (region dependent)
- Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
- Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
- Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
- Audio summing routes two or more audio channels to combinations of XLR receiver outputs, controlled via channel gain adjustment
Additional Features:
- Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench 6 software for advanced coordination, monitoring, and control; support for Dante digital networked audio
- Compatible with AMX and Crestron control systems
- Interference detection and alerts
- Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
- Removable half wave antennas
- 24 bit / 48 kHz digital audio
- 20 Hz – 20 kHz frequency range with flat response
- Greater than 120 dB dynamic range
- Up to 22 active transmitters in one 8 MHz TV channel; High Density mode enables up to 63 active transmitters in one 8 MHz channel
- AES-256 bit encryption equipped for secure wireless transmission
Reviews
Product Specifications
ULXD4Q Quad-Channel Digital Wireless Receiver |
|||||
|---|---|---|---|---|---|
ULX-D System Specifications |
|||||
| RF Carrier Frequency Range | |||||
| Working Range | 100 m ( 330 ft) | ||||
| RF Tuning Step Size | 25 kHz, varies by region | ||||
| Image Rejection | >70 dB, typical | ||||
| RF Sensitivity | −98 dBm at 10-5 BER | ||||
| Latency | <2.9 ms | ||||
| Audio Dynamic Range |
|
||||
| Total Harmonic Distortion | <0.1% | ||||
| System Audio Polarity | Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output. | ||||
| Operating Temperature Range | -18°C (0°F) to 50°C (122°F) | ||||
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) | ||||
ULXD4Q Specifications |
|||||
| Weight | 3.45 kg (7.6 lbs), without antennas | ||||
| Power Requirements | 100 to 240 V AC, 50-60 Hz, 0.32 A max. | ||||
| Dimensions | 44 x 482 x 274 mm | ||||
| Housing | Steel Aluminum |
||||
Audio Output |
|||||
| Gain Adjustment Range | −18 to +42 dB in 1 dB steps (plus Mute setting) |
||||
| Configuration |
|
||||
| Impedance | 100 Ω | ||||
| Full Scale Output |
|
||||
| Mic/Line Switch | 30 dB pad | ||||
| Phantom Power Protection | Yes | ||||
Cascade Output |
|||||
| Connector Type | BNC | ||||
| Configuration | Unbalanced, passive | ||||
| Impedance | 50 Ω | ||||
| Insertion Loss | 0 dB | ||||
Networking |
|||||
| Network Interface | Dual Port Ethernet 10/100 Mbps, 1Gbps, Dante Digital Audio | ||||
| Network Addressing Capability | DHCP or Manual IP address | ||||
| Max. Cable Length | 100 m (328 ft) | ||||
RF Input |
|||||
| Spurious Rejection | >80 dB, typical | ||||
| Connector Type | BNC | ||||
| Impedance | 50 Ω | ||||
| Bias Voltage | 12 to 13 V DC, 150 mA maximum, per antenna | ||||
