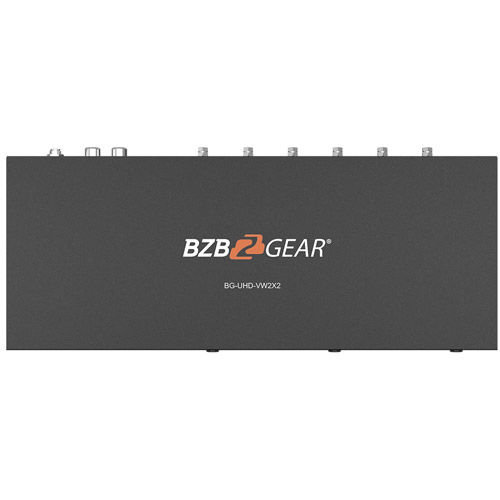

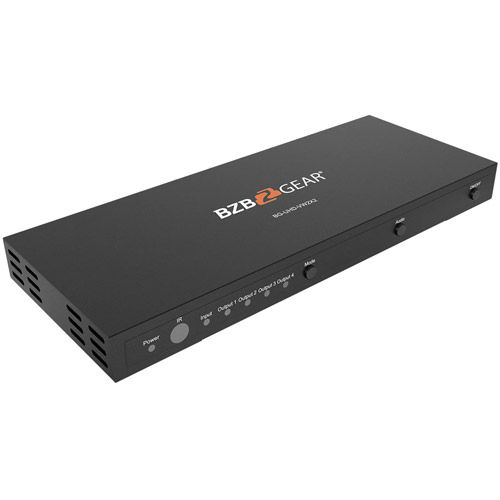

BZBGear 2x2 4K 60Hz HDMI Video Wall Controller with Audio

2X2 4K 18Gbps UHD HDMI Video Wall Processor/Controller with Audio Extraction

Video walls shouldn’t be difficult to create. That’s why the BG-UHD-VW2X2 video wall processor requires almost no configuration. All users need to do is plug in their devices, select the layout, and adjust for bezel correction with three simple button presses. If needed, 180° output rotation is an option available for inverted displays to help with bezel obstructions.

Key Features:

• High Input Resolution: Input Up To 4K@60Hz 4:4:4
• Video Wall Processor: Spread a Source Across Multiple Displays
• HDMI Loop-Out: Additional Local Display Connectivity
• Audio De-Embedding: 1 x RCA, 1 x TOSLINK
• Alternate Layouts: Choose From a Variety Of Video Wall Configurations
• Multiple Control Options: Front panel, IR Remote, RS232

These features combine to make this video wall processor a great industry-compliant device with no-fuss setup. With its ease of use, this video wall processor is a great and affordable choice for any application that would benefit from an eye-catching video wall display.

Additional Features:

• Compatible with HDCP2.2
• Sturdy metal housing
• 180° output rotation for installations with inverted displays
• Mirror mode available (2x2 only)
• Plug and play unit
• Output up to 1080p@60Hz on each display
• Edge shielding functions
• Supports AUX and Spdif audio extraction
• Configure for 1x1, 2x2, 1x2 (H), 1x3 (H), 1x4 (H), 2x1 (V), 3x1 (V), 4x1 (V) layouts

Connectivity

Simplicity is one of the BG-UHD-VW2X2’s greatest strengths. This video processor supports high resolution 4K@60Hz 4:4:4 input resolutions. The four HDMI outputs have a maximum resolution of 1080p@60Hz. This video processor is compliant with both HDCP 2.2 and HDMI 2.0. The device also supports loop out up to 4K@60Hz 4:4:4 for additional local display connectivity. For audio extraction, RCA and TOSLINK audio outputs are available.

Control

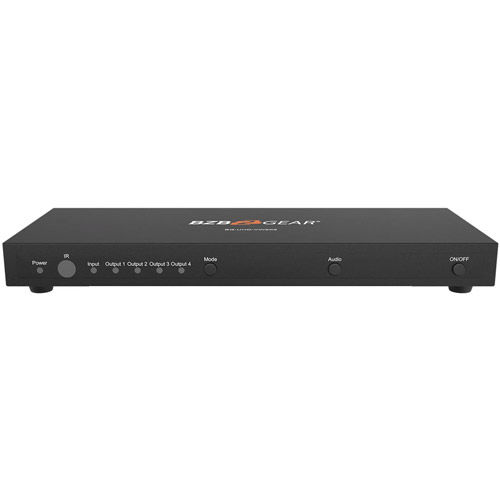

Operators have access to multiple control options for the BG-UHD-VW2X2, including an IR remote control, front panel buttons, and RS-232. On the IR remote, five preset bezel adjustments are available. Operators can also rotate the display 180° for inverted displays if needed. These configurations work for both commercial displays and for consumer-based TVs.
