Product Highlights
- Up to 200 m (660') Cable Transmission
- 4K @ up to 60 Max. Resolution
- 12G/ 6G/ 3G/ HD/ SD-SDI / 2x BNC Output
- Metal Material Construction
- 11.8 Gbps Bandwidth
- 12 V Power Supply
BZBGear 12G/6G/3G/HD/SD-SDI Pattern Generator
BZBGear 12G/6G/3G/HD/SD-SDI Pattern Ge...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Lease this for: $116.01 Learn More
Overview
12G/6G/3G/HD/SD-SDI Video Test Pattern Generator

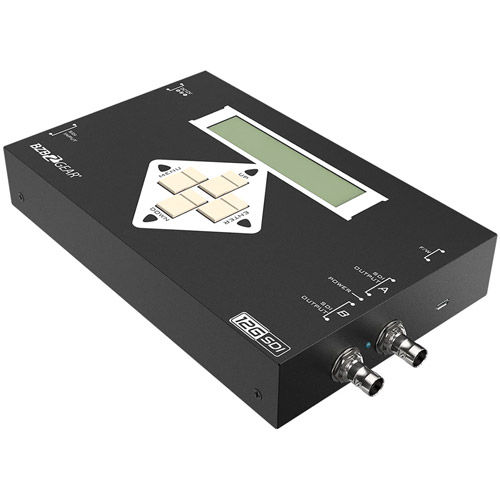

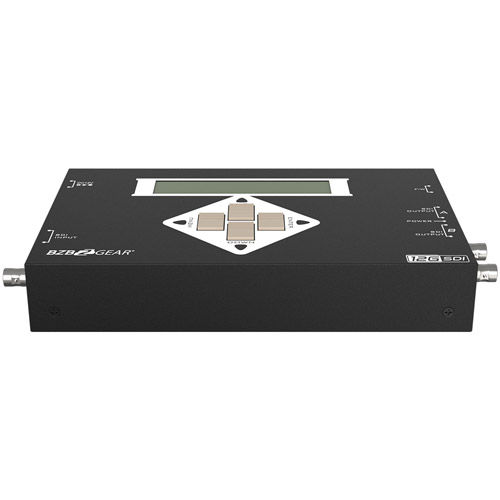

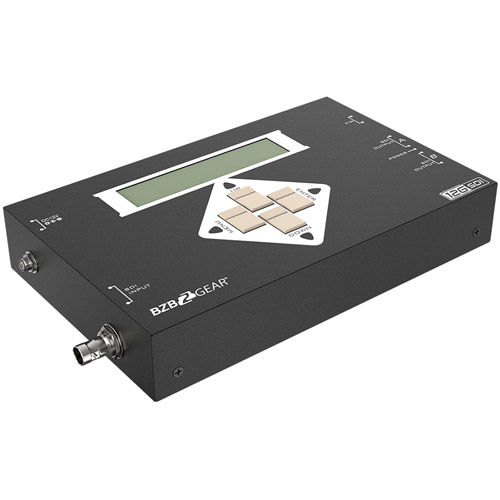

The BG-SDITPG is a 12G-SDI test pattern generator that can generate test signals at resolutions up to 3840x1260@60Hz. Designed for video production environments, the BG-SDITPG is an essential part of any video crew’s toolkit. Encased in a durable metal housing, this unit is equipped with carefully chosen still and moving test patterns that allow video engineers to quickly test SDI equipment and cabling.
Key Features:
- 4K2K@60 Support: Ultra HD refers to a TV resolution of 3840 x 2160 pixels
- Multi-Format: 12G, 6G, 3G, HD, SD
- Audio Generator: 8 Channel AES Compliant @48KHZ
- Dual Output: Simultaneous 12G SDI outputs
- Easy to Use: 4 simple buttons access all functions
- Locking PSU: Prevents accidental disconnection
If troubleshooting a video display is necessary, a video test pattern generator may be necessary. Video test pattern generators can help AV technicians fine tune displays in various categories in the field. As an advanced SDI pattern generator, the BG-SDITPG supports multiple SDI formats such as 12G, 6G, 3G, HD, and SD. It also multi-pattern support to test different kinds of display characteristics.
Additional Features:
- Multi-Format - 12G, 6G, 3G, HD, SD
- Audio Generator - 8 Channel AES Compliant @48KHZ
- Dual Output - Simultaneous 12G SDI outputs
- Easy to Use - 4 simple buttons access all functions
- Multiple Patterns - Choose from multiple still and moving test patterns
- Locking PSU - Prevents accidental disconnection
Features

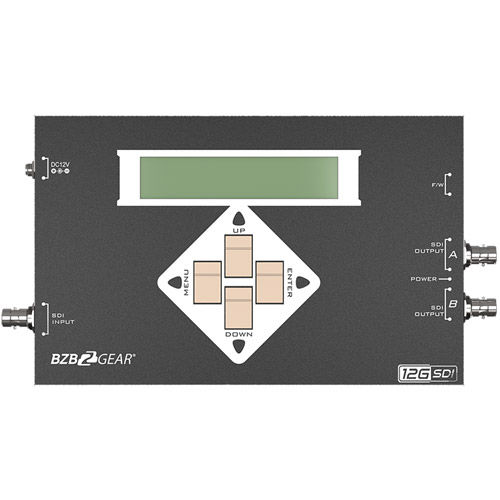

The BG-SDITPG video test pattern generator supports a maximum resolution of 4K2K@60Hz. With two simultaneous 12G-SDI outputs, users can test two signal chains at once. The test patterns can be transmitted at 12G/6G/3G/HD/SD-SDI formats, ensuring full compatibility with legacy systems. This unit can also generate up to 8 channel AES compliant audio signals at 48kHz sampling rate. The easy-to-use interface of the BG-SDITPG is operated using the LCD screen and 4 top cover buttons.
What's Included
BG-SDITPG Test Pattern Generator12V Power Supply Unit
Reviews
Product Specifications
12G/6G/3G/HD/SD-SDI Video Test Pattern Generator |
|
|---|---|
| Role of usage | Pattern generator |
| SDI standards | 12G/6G/3G/HD/SD-SDI |
| Auto SDI rate detection | Yes |
| Supported protocols | SMPTE 259M (270Mbps / 360Mpbs) SMPTE 292M / HDTV (1.485 & 1.485/1.001Gbps) SMPTE 424/425M (2.97 & 2.97/1.001Gbps) SMPTE ST-2081 (5.94&5.94/1.001Gbps) SMPTE ST-2082 (11.88&11.88/1.001Gbps) |
| Video bandwidth | 11.88Gpbs |
| Data rates | 143 / 270 / 1483 / 1485 / 2967 / 2970 / 5934 / 5940 / 11868 / 11880 Mbps |
| Video support | [12G] 4K2K@50/59.94/60 [6G] 4K2K@23.97/24, 25, 30 [3G] 1080p@50/59.94/60 (4:2:2) [HD] 720p@50/59.94/60, 1080p@24/30, 1035i@50/59.94/60, 1080i@50/59.94/60 [SD] NTSC@59.94Hz, PAL@50Hz |
| SDI signal type | SMPTE-292M / 259M / 424M / ST-2081 / ST-2082 |
| Output impedance | 75W |
| Cable (Belden 1694A) equalization / transmission | [12G-SDI] up to 50m (165ft) / [6G-SDI] up to 100m (330ft) / [3G-SDI] up to 200m (660ft) |
| Audio Support | Yes |
| PCB Stack-up | 6-layer board [impedance control — differential 100W; single 75W] |
| Output | 2x BNC [SDI] |
| BNC connector | 75W interlocking socket |
| [HD] Eye pattern characteristics | Amplitude: Within 800mV <10%Long time jitter <1.0 UI Rise overshoot: Less than 2% Timing jitter <1.0 UI Fall overshoot: Less than 2% Alignment jitter <0.2 UI |
Mechanical |
|
| Housing | Metal enclosure |
| Dimensions | Model 5.9” x 7.5” x 1.3” [150 x 190 x 32mm] Package 10.3” x 6.7” x 3.8” [263 x 170 x 97mm] Carton 1'7” x 1.2' x 11.3” [512 x 364 x 288mm] |
| Weight | Model 1.5 lbs [660g] Package 2.8 lbs [1260g] |
| Fixedness | Interlocking power supply |
| Power Supply | 12V 2A DC |
| Power Consumption | 8 Watts [max] |
| Operation temperature | 32~104°F / 0~40°C |
| Storage temperature | -4~140°F / -20~60°C |
| Relative humidity | 20~90% RH [no condensation] |
