PTZ Full HD 1080P 10X Zoom HDMI/SDI/USB 3.0 Live Streaming Camera
PTZ Full HD 1080P 10X Zoom HDMI/SDI/USB 3.0 Live Streaming Camera
PTZ Full HD 1080P 10X Zoom HDMI/SDI/USB 3.0 Live Streaming Camera
PTZ Full HD 1080P 10X Zoom HDMI/SDI/USB 3.0 Live Streaming Camera
PTZ Full HD 1080P 10X Zoom HDMI/SDI/USB 3.0 Live Streaming Camera
PTZ Full HD 1080P 10X Zoom HDMI/SDI/USB 3.0 Live Streaming Camera
No Reviews Q & A
Write your Review
Product Highlights
  • 2.7 MP 1/2.7″ Exmor CMOS Sensor
  • 1920 x 1080 Max. Resolution
  • 0.5 lux Min. Illumination
  • HDMI / 3G-SDI / USB 3.0 / RJ45 Video Output
  • 3.5mm Interface / Line In Audio Input
  • TCP/IP / RTSP / RTMP Protocol
  • 12 VDC Max. Power Consumption
  • 72° View Angle
BZBGear PTZ Full HD 1080P 10X Zoom HDMI/SDI/USB 3.0 Live Streaming Camera BZBGear PTZ Full HD 1080P 10X Zoom HDM...
$1,729.00 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.
Lease this for: $70.20 Learn More

Overview

All-In-One PTZ 1080P Full HD 10X HDMI/SDI/USB 3.0/POE Live Streaming Camera

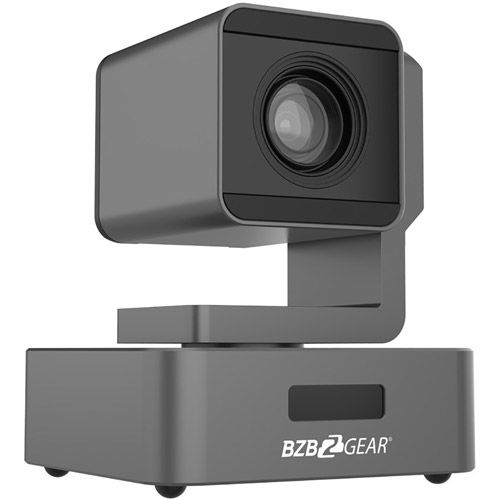

The BG-VPTZ-HSU3 is a compact 1080p HD PTZ camera. Designed with a compact footprint to unobtrusively blend into offices and classrooms, this performer is equipped with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs.

Key Features:

  • Broadcast Quality Video: Fluid motion, clear image, and accurate colors
  • Latest Streaming Tech: Supports H.264/H.265 video compression and RTMP(S) network protocol for Youtube/Facebook live streaming
  • Simultaneous Video Outputs: 3G-SDI / HDMI / USB3.0 / IP Streaming
  • Power over Ethernet: Delivers power directly over an ethernet cable from your PoE enabled network switch
  • Audio Embedding: Connect audio mixer output or powered mic and embed audio into your live stream

Connectivity and Features

The BG-VPTZ-HSU3 camera can capture images at resolutions up to 1080p@60Hz. With simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs this camera can integrate seamlessly with nearly any workflow. Available with 10X, 20X, or 30X optical zoom lenses, the BG-VPTZ-HSU3 produces detailed close-ups in even large venues.

Additional Features:

  • Flexible installation options: Supports ceiling, wall, tripod, or desk mount installations
  • Multiple control options
  • All-aluminum high-stability chassis
  • AAC audio encoding support
  • Smart menu & WebGUI Interface
  • Resolutions up to 1080p@60Hz
  • Advanced video image processing

The 3.5mm audio input jack allows the BG-VPTZ-HSU3 to embed audio directly into the video stream. The camera supports H.264 and H.265 video compression formats, and can broadcast in ONVIF, RTSP, and RTMP IP streaming protocols.

  • Includes 2D/3D noise reduction functions
  • Small form factor for tight installs
  • Main and sub streams available

Control

This camera can be controlled using RS-232, RS-485, LAN, or IR remote control. There are various protocols supported including IP VISCA, ONVIF, and PELCO-P/D. There are 255 available preset positions that can be stored internally, with nine of those presets being available via IR remote control.

What's Included

BG-VPTZ-HSU3 Camera
IR Remote Controller
RS-232 to DB 9pin Cable
12V/ 2.0 A DC Power Adapter

Reviews

Product Specifications

All-In-One PTZ 1080p Full HD 10x HDMI/SDI/USB 3.0/POE Live Streaming Camera

Camera Specs


Image Sensor 1/2.7″ Exmor CMOS
Frame Rate 1080p@60/ 59.94 / 50 /30 / 29.97 /25
1080i@60/59.94 / 50 / 30 / 29.97 / 25
720p@60/50/ 30 / 25, 480i@60, 576i@50
Zoom Optical - 10X/20X/30X
F-Number 1.6(W)-3.5(T)
Focus f=5.1mm~51mm
Effective Pixels 2.70 Megapixel
View Angle 72°
Min. Illumination 0.5lux (F 1.8, AGG ON)
Shutter Speed 1 to 1/10000s
Image Adjustment Vertical Flip & Mirror Supported

Input/Output Interface


Video Output HDMI, 3G-SDI, USB 3.0, RJ45 Network (10/100M Adaptive Ethernet ports)
Audio Input 3.5mm audio interface, Line In
Communication Interface 1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
Power Connection DC IN 12V, Power over Ethernet

Mechanical


Pan/Tilt Rotation ±178°, Tilt Rotation Angle -30°~ +90°
Pan 90°/s; Tilt: 90°/s
Presets Max 255 Presets ( Remote 9 Presets)
Network Protocol VISCA, PELCO P/D, ONVIF Protocol

IPC Video Features


Video standard H.265/H.264/MJPEG
Video Stream Main stream, Sub stream
Main stream resolution 1920x1080, 1280x720
Sub stream resolution 720x480, 320x240
Bit Rate 128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
Bit Rate Type Variable rate, Fixed rate
Max. Frame 60fps
Audio encode standard G.711, G.722, G.722.1, G.728, G.722.1C AAC
Audio Stream Rate 96K, 128K, 256K
Supported Protocols TCP/IP, RTSP, RTMP

Generic


Dimensions (L*W*H) 4.7in x 4.7in x 5.7in / 120mm x 120mm x 145mm
Weight 1.6 kg (3.5 lbs)
Operating Temperature -10°C ~ 50°C
Max. Consumption 12W DC12V@1A
