- Webcode: 458831 • Mfr: LEYE SDI
- FREE SHIPPING Available
Product Highlights
- 1440 x 900 Max. Resolution
- 450nit Brightness
- 1100:1 Contrast Ratio
- HDMI / 3G-SDI Video Input
- Aluminum / EPE / ABS Plastic Material Construction
- 7-24 V Input
- 160° View Angle

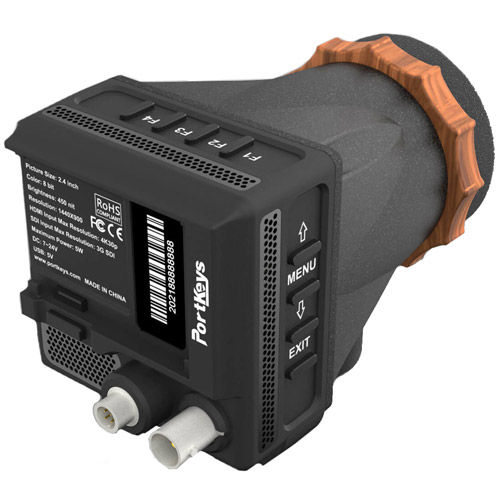

PortKeys LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
PortKeys LEYE 3G-SDI & HDMI 2.4" LCD El...
$799.99
Add to Cart
FREE SHIPPING
Available
Web Availability:
Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Overview
LEYE SDI
LEYE SDI is an upgraded version of LEYE, adding integrated Canon E6 battery plate, which can be powered by Canon E6 battery or power bank.
Key Features:
- SDI interface, support 4K HDMI and 3G-SDI signal input
- Image flip
- Added passive heatsink vent, the heat dissipation performance is better
- Self-locking 4 pin Aviation power connector
- Customized peaking range
- Image crop
- Peaking no longer grab Guides, Grids
- Waveform optional detect data before or after loading 3D LUT.
- 2.4-inch Panel: 2.4″ Screen size LCD EVF with 1440×900 effective resolution, 8bit Color Depth, 1100:1 Contrast, 450nit Brightness.
- Round Sponge Eye Mask: Wearing glasses to watch barrier-free. The sponge mask prevents direct sunlight from burning the LCD screen.
- Red Oak Diopter Swivel: +8D~-3D Adjustable diopters. It is suitable for users with different eyesight.
- Advanced Features: 3D LUT, Peaking, Luma waveform, Zebra, Histogram, Audio meters, Guides, Cross hair, False color, Grids, Underscan, H/V Delay, Anamorphic, Sharpness, Check field, Contrast, Backlight, Brightness, Chroma, Color temperature, Tint, Osd flip, Display flip, Image crop, Battery voltage checking, Customized peaking range, Waveform optional detect data before or after loading 3D LUT.
Reviews
Product Specifications
LEYE 3G-SDI / 4K HDMI Camera Viewfinder |
|
|---|---|
Basic Parameters |
|
| Screen Size | 2.4" |
| Dimension | 12.5 x 7 x 7.8 cm (") |
| View Angle | 160° H / 160° V |
| Brightness | 450nit |
| Max. Resolution | 1440 x 900 |
| Contrast Ratio | 1100:1 |
| Weight | 265 g ( oz) |
| Colour Depth | 8bit |
| Material Construction | Aluminum alloy / EPE / ABS Engineering Plastics |
| Max. Power | 5 W |
Software Function |
|
| 3D LUT | Peaking |
| Luma Waveform | Zebra |
| Histogram | Audio Meters |
| Guides | Cross Hair |
| False Colour | Grids |
| UnderScan | H/V Delay |
| Anamorphic | Sharpness |
| Check Field | Contrast |
| Backlight | Brightness |
| Chroma | Colour Temperature |
| Tint | OSD Flip |
| Display Flip | Image Crop |
Interface |
|
| Video Input | 4K HDMI 30p 3G-SDI |
| Power Input | DC 7-24 V |
| USB-A | Firmware update 3D LUT Support power supply of 5V 2A power bank |
| Support Battery Model | Canon LP-E6 |
| HDMI Signal | 4096 x 2160p @ 24Hz 3840 x 2160p @ 23.97 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz 1920 x 1080p @ 23.97 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz 1920 x 1080psf @ 23.97 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz 1920 x 1080i @ 50 Hz, 59.94 Hz, 60 Hz 1280 x 720p @ 50 Hz, 59.94 Hz, 60 Hz 720 x 576p @ 50 Hz 720 x 576i @ 50 Hz 720 x 480p @ 50 Hz, 59.94 Hz, 60 Hz 720 x 480i @ 50 Hz, 59.94 Hz, 60 Hz |
| SDI Signal | 1920 x 1080p @ 50fps, 59.94fps, 60fps 1920 x 1080p @ 50 Hz, 59.94 Hz, 60 Hz YUV422 1920 x 1080p @ 23.98 Hz / 24 Hz / 25 Hz / 29.94 Hz / 30 Hz YUV444/YUV422/RGB444 1920 x 1080psf @ 23.98 Hz / 24 Hz / 25 Hz / 29.94 Hz / 30 Hz YUV444/YUV422/RGB444 1920 x 1080i @ 50 Hz, 59.94 Hz, 60 Hz YUV444/YUV422/RGB444 1280 x 720p @ 50 Hz, 59.94 Hz, 60 Hz YUV444/YUV422/RGB444 720 x 480i @ 59.94 Hz YUV422 720 x 576i@ 50 Hz YUV422 |
