O3 Air Unit
No Reviews Q & A
Write your Review
  • Webcode: 460352 • Mfr: 65936561
Product Highlights
  • 1/1.7" Sensor
  • 10 km (6 mi) Max. Transmission Range
  • 5.725-5.850 GHz Frequency
  • 7.4 - 26.4 V Input
DJI O3 Air Unit DJI O3 Air Unit
$249.00 Add to Cart
Add to Wishlist
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

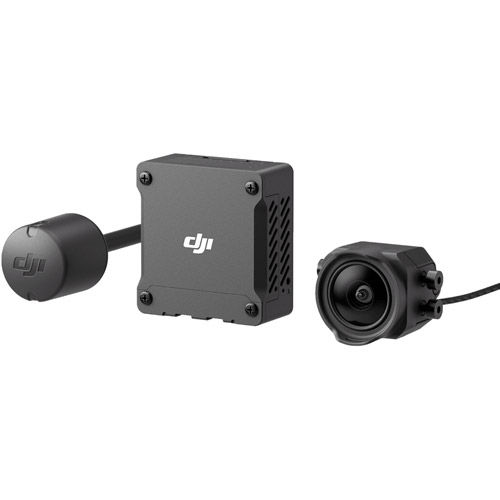

O3 Air Unit

Integrating DJI's cutting-edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high-definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance with its 1/1.7-inch sensor, 155° super-wide FOV, flagship video technology, and other upgrades. It is also compatible with a wide range of products and delivers a video transmission solution that helps you to fully release your aerial creativity.

Powered By Flagship Video Transmission

Equipped with DJI O3+ Video Transmission, the DJI O3 Air Unit provides a host of powerful video transmission capabilities. Control your drone with snappy responsiveness and get a crisp, ultra-sharp live feed. The 2T2R omnidirectional antennas further ensure the stability and smoothness of video transmission within the signal coverage range.

Seeing is Believing

The DJI O3 Air Unit features a video transmission resolution of up to 1080p, while maintaining a high frame rate of 100 fps. It also supports the H.265 video coding format, presenting additional clarity and smoothness in your live view.

Go The Extra Mile

Fly farther and explore more with the DJI O3 Air Unit's extended 10 km transmission range. It can even automatically select the frequency band to use the optimal signal, and it delivers excellent anti-interference performance. The stable, long-range connection gives you peace of mind as you fly and lets you enjoy distant scenery in the palm of your hand.

Level-Up Your Visuals

The DJI O3 Air Unit features upgraded imaging specs across the board. The air unit camera module is equipped with 20 GB of built-in storage as well as a 1/1.7-inch sensor to present richer details and high-quality imagery. It supports 4K/120fps video and shoots 155° super-wide FOV footage for stunning visual effects. In addition, D-Cinelike color mode provides more creative freedom for color grading, allowing you to more flexibly edit and adjust your footage.

Elevate Your Creations

The O3 Air Unit camera module can be used with the DJI Avata ND Filters Set (ND8/16/32). Made of high-quality materials, the ND filters present true color details and light-dark contrast, providing flexible aperture control and exposure selection.

Fine Tune Your Experience

The DJI O3 Air Unit supports Canvas mode, allowing you to customize the on-screen display information of your DJI Goggles 2 or DJI FPV Goggles V2. Adjust the PID parameters and set up the system to suit your style.

Packed with Power

The DJI O3 Air Unit offers vast compatibility in a lightweight and compact body for flexible combinations and assembly. When used with DJI Goggles 2 and DJI FPV Remote Controller 2, you can enjoy complete mobility.

Reviews

Product Specifications

O3 Air Unit
Weight Air Unit (camera module excluded): Approx. 28 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g
Dimensions Transmission Module (L×W×H): 32.5×30.5×14.5 mm
Camera Module (L×W×H): 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm
Communication Frequency 2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX)
Transmission Power (EIRP) FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
End to End Latency With DJI Goggles 3/DJI Goggles Integra/DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
Max. Video Transmission Range 10 km (FCC), 2 km (CE), 6 km (SRRC)
Supported Flight Control System The DJI O3 Air Unit supports Betaflight 4.3.0 and higher versions.
Input Voltage 7.4-26.4 V
Operating Temperature -10º to 40º C (14° to 104° F)
Channels Supports auto mode
Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
Channels Info FCC/SRRC/CE:
40 MHz:
Channel 1: 5794.5 MHz

20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz
Supported SD Cards microSD (up to 256 GB)

Recommended microSD Cards

 SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC
Supported DJI Goggles DJI Goggles 3, DJI Goggles Integra, DJI Goggles 2, and DJI FPV Goggles V2
Supported DJI Remote Controller DJI FPV Remote Controller 3 and DJI FPV Remote Controller 2
