SLXD4D Dual-Channel Digital Wireless Receiver (J52: 558 to 602 + 614 to 616 MHz)
No Reviews Q & A
Write your Review
Product Highlights
  • Dual Channel Receiver
  • J52: 558 - 616 MHz Frequency Band
  • 20 Hz - 20 kHz Frequency Response
  • 1/4" (6.35mm) & XLR Connection
  • Steel Housing
  • 118 dB Dynamic Range
  • 15 VDC Power Source
Shure SLXD4D Dual-Channel Digital Wireless Receiver (J52: 558 to 602 + 614 to 616 MHz) Shure SLXD4D Dual-Channel Digital Wi...
$1,219.00 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

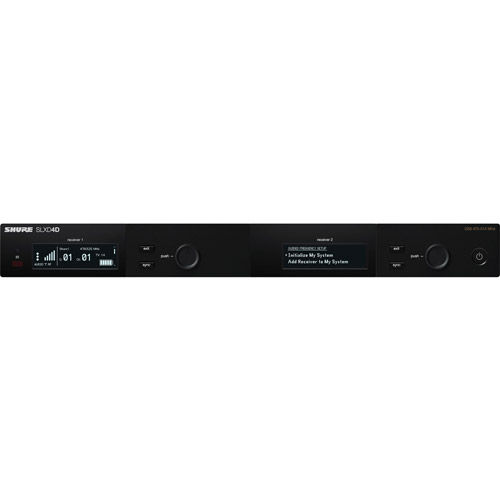

SLXD4D
Dual-Channel Digital Wireless Receiver

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations.  Featuring industry-leading digital wireless technology and design in a convenient dual, full-rack configuration, the SLXD4D saves space and accessories for any size of multi-system configuration   A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Key Features:

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • Interchangeable microphone capsules
  • Rugged metal construction

What's Included

SLXD5 Single-Channel Portable Digital Wireless Transmitter
WA311 Non-Conductive Cold Shoe Mount Adapter
2x AA Alkaline Batteries
Locking 3.5mm-to-XLR Cable (18")
Locking 3.5mm Audio Extender Cable (16")
Zippered Carrying Pouch

Reviews

Product Specifications

SLXD4D Dual-Channel Digital Wireless Receiver
Dimensions 1.65 × 15.5 × 5.98 in
(42 × 393 × 152 mm)
Weight 3.2 lb (1451 g)
Housing Galvanized Steel
Power Requirements 15 VDC @ 600 mA

RF Input


Spurious Rejection >75 dB
Connector Type BNC
Impedance 50 Ω

Audio Output


Gain Adjustment Range –18 to +42 dB in 1 dB steps
Configuration 1/4" (6.35 mm): Balanced
(Tip=audio +, Ring=audio –,
Sleeve=ground)
XLR: Balanced
(1=ground, 2=audio +, 3=audio –)
Impedance 1/4" (6.35 mm): 1.3 kΩ (670 Ω
Unbalanced)
XLR (line): 400 Ω (200 Ω Unbalanced)
XLR (mic): 150 Ω
Full Scale Output 1/4" (6.35 mm): +15 dB differentially
(+9 dBV single)
XLR (LINE setting): +15 dBV
XLR (MIC setting): –15 dBV
Mic/Line Switch 30 dB pad
Phantom Power Protection 1/4" (6.35 mm): Yes
XLR: Yes

Networking


Networking Interface Single Port Ethernet 10/100 Mbps
Network Addressing Capability DHCP or Manual IP address
Max. Cable Length 100 m (328')
