Prism 873 Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card
Prism 873 Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card
Prism 873 Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card
Prism 873 Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card
No Reviews Q & A
Write your Review
Product Highlights
  • Designed for Prism Rack Base System
  • Up to 4K @ 60p Max. Resolution
  • 2x SD/HD/3G/6G/12G-SDI/BNC Video Output
  • 3.5mm Sterep Audio Output
  • Up to 15 W Power
  • TCP / IP / UDP / HTTP / DHCP / NTP / SSL / IGMP Protocol
Teradek Prism 873 Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card Teradek Prism 873 Prism 873 4K 10bit H...
$4,449.99 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.
Lease this for: $170.43 Learn More

Overview

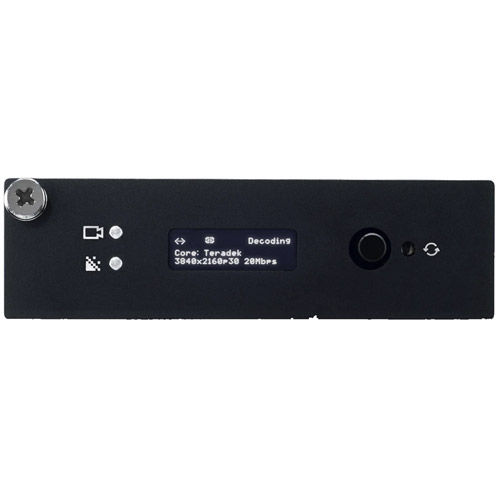

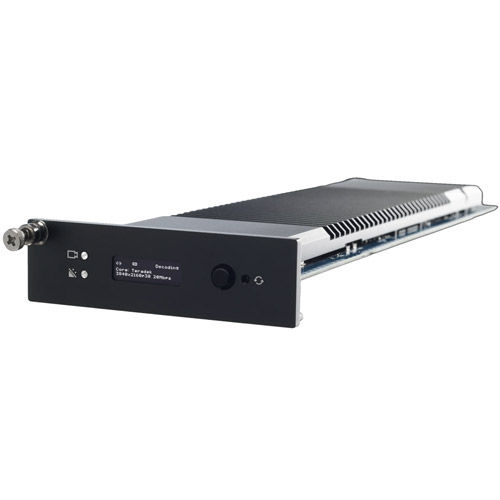

Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card

Industry leading, low-latency blade decoder for Prism 1RU and 2RU rack mount systems. Supports 4K, 10-bit, 4:2:2 video decoding in a high density format. Can receive video from Prism, Cube, Slice, Core, and T-Rax encoders.

Key Features:

  • Designed for Prism Rack Base System
  • HEVC / H.264 compression
  • Supports decoding up to 2160p60
  • HDR ready: 10-bit, 4:2:2
  • Protocols: SRT, MPEG-TS 2x
  • 12G-SDI outputs
  • 3.5mm analog audio input and output

What's Included

Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card
Audio/Video Backplate

Reviews

Product Specifications

Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card

Video


Hdr Support 10-bit, 4:2:2
Video Outputs 2 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)

Supported Resolutions


Supported Resolutions 4Kp 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60*
1080PsF 23/24/25/29/30*
720p 50/59.94/60
576i 480i
*Prism encoders can encode interlaced or PsF video, but it will be deinterlaced inside the Prism first for H.264. Prism does not output H264 interlaced stream, but
can output HEVC interlaced streams. Prism decoders can interlace video, i.e. it can receive progressive stream and output 1080i/etc video.

Video Processing


Video Compression ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
Supported Video Bitrate 250 Kbps to 85 mbps
Video Format Conversion Support Built in Video Scaler and Deinterlacer
Colour Correction None

Protocol Support


Network Protocols TCP/IP, UDP, HTTP, DHCP, NTP, SSL,IGMP
Supported Video Transport Protocols SRT, MPEG-TS, RTSP
Remote Control Teradek Core

Audio Processing


Audio Compression AAC-LC

Outputs


Audio Output Embedded, 2 channels
3.5mm Stereo Line Level Analog

Interfaces


Configuration Interfaces Feature-rich Web UI for configuration and control
0.9” OLED Status Display w/ Nav control
Video LED
ENC/DEC LED
Switches Reset Switch

Network


Ethernet Dual 10/100/100 Ethernet

Power


Power Input Powered By Chassis
Nominal Power Consumption Up to 15W per card
