Product Highlights
  • 1 No. of Track
  • 20 Hz - 20 kHz Frequency Response
  • 900 mAh Capacity
  • 3.5mm Jack / USB-C Input
  • Lithium-Ion Chemistry
  • 48 kHz Sample Rate
TENTACLE Sync TRACK E - Basic Box TENTACLE Sync TRACK E - Basic Box
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: In Stock
Product is In Stock in our Warehouse or in one of our store locations. We will confirm stock is available and process your order. If the available stock is sold before your order is processed, you will receive an email from us.
In-store
  • Available in Calgary
  • Available in Toronto
Vistek Locations
  • Toronto In Stock
  • Ottawa Available for Order
  • Mississauga Available for Order
  • Calgary In Stock
  • Edmonton Available for Order
Please call and verify availability at the store as stock changes daily.

Overview

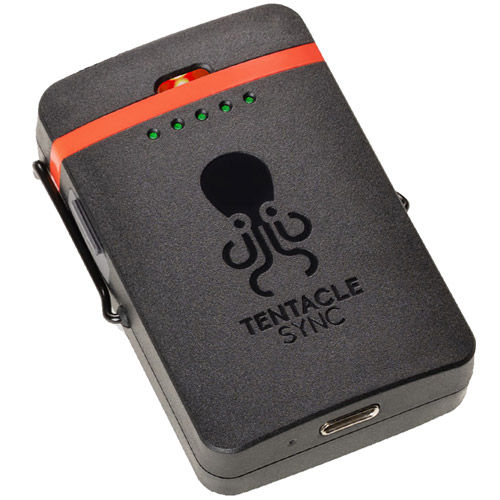

TRACK E Audio Recorder

The TRACK E Timecode Audio Recorder can easily fit in your pocket for recording on the go. This allows mobile operation for example as a recorder for a clip-on microphone eliminating the need for a radio-link. This means that the TRACK E will work in environments where regular wireless transmitter fail. Controllable through the Setup App for iOS or Android, it seamless integrates into the Tentacle Sync eco system. The app lets you synchronize timecode and operate as many Tentacle devices as you need via Bluetooth. You can monitor audio wirelessly and will be notified immediately by the app if something doesn’t go as planned. For even more convenience, you can sync, start and stop your TRACK E devices from your Apple Watch.

Key Features:

  • 32-bit Float Recording / 24-bit Recording
  • Control, Sync & Record up to Hundreds of Devices via Bluetooth® within Seconds
  • Wireless Audio Monitoring via Bluetooth®
  • Wireless Timecode Sync via Bluetooth®
  • Jam-Sync via Cable

TRACK E features 32-bit floating point technology for a significantly extended dynamic range. 32-bit floating point also means that no digital clipping will occur, making the TRACK E a versatile set-&-forget-device that will always deliver high quality audio. With the TRACK E users can treat audio in a similar way as photographers use the RAW camera photo format – all details can be adjusted in post production, significantly reducing the preparation time before you start shooting. In addition, regular 24-bit recording is supported as well.

The TRACK E uses its included 16 GB microSD card for recording. An input limiter and a high-pass filter guarantee for pristine recording quality. A 3.5 mm locking connector offers a secure connection for your microphone. In addition to wireless sync, TRACK E features standard SMPTE timecode input/output so you can also connect to other timecode devices. A free license of Tentacle Sync Studio (Mac) is included with every TRACK E purchase.

Additional Features:

  • Timecode In/Out
  • Push Notifications about Critical Battery States, Recording Errors and Low Remaining Recording Time
  • Minimum Battery Runtime 10 hours
  • 16 GB microSD Card included
  • Tentacle Sync Studio Software License included (macOS)

What's Included

Tentacle Sync TRACK E – Pocket Audio Recorder
16 GB microSD card

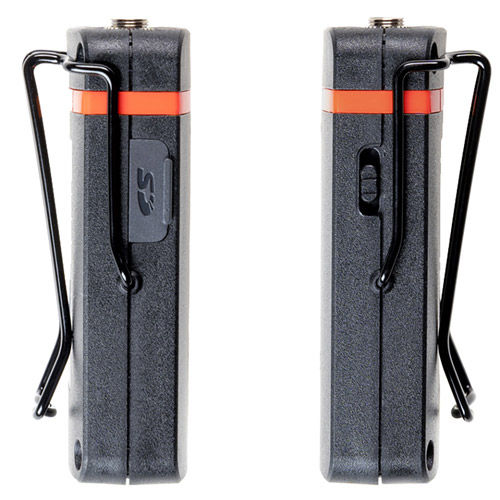

Belt Clip made of Powder-Coated Stainless Steel in Black
USB-A to USB-C Charging Cable (USB 2.0)
Software License for Tentacle Sync Studio (macOS)

Reviews

Product Specifications

TRACK E Audio Recorder

Recording


Number of Tracks 1
Sampling Rate 48 kHz
Recording Bit-Depth 32-bit Float / 24-bit
Recording File Formats WAV (BWF)
Recording Time 30 hrs (24-bit) / 23 hrs (32-bit Float) with 16 GB Card
Storage Media microSDHC Card up to 32 GB (Class 10)
Signal Processing Low Cut Filter, Limiter (24-bit only)

Connectivity


Microphone Input 3.5 mm Jack (screw lock)
Mic Plug-In Power 5 V
Headphone Output 3.5 mm Jack
USB Connection USB-C (USB 2.0)
USB Modes Charging, Card Reader, Firmware Update

Performance


Frequency Response 20 Hz – 20 kHz
Gain Range +6 to +46 dB
Dynamic Range 110 dB typ
THD+N ≤ -85 dB (0,05%)

Control & Sync


Bluetooth 5.2 Low Energy
Remote Control Tentacle Setup App (iOS/Android)
Audio Monitoring Wireless via Bluetooth (Tentacle Setup App)
Control Push Notifications via Bluetooth (Tentacle Setup App)
Synchronization Via Bluetooth (Tentacle Setup App) or Jam-Sync via Cable
Timecode Input LTC via Mic In
Timecode Output LTC via Headphone Out
Frame Rates SMPTE 12M / 23.98, 24, 25, 29.97, 29.97DF, 30

Power


Power Source Built-in rechargeable Lithium Polymer Battery
Battery Capacity 900 mAh
Battery Operation Time min 10 hours
Battery Charging Time max. 2 hours

Hardware


Mounting Belt Clip (removable) – Black Powder-Coated Stainless Steel
Belt 58 g / 2.1 oz
Dimensions 47 x 68 x 19 mm / 1.85 x 2.67 x 0.74 inches
