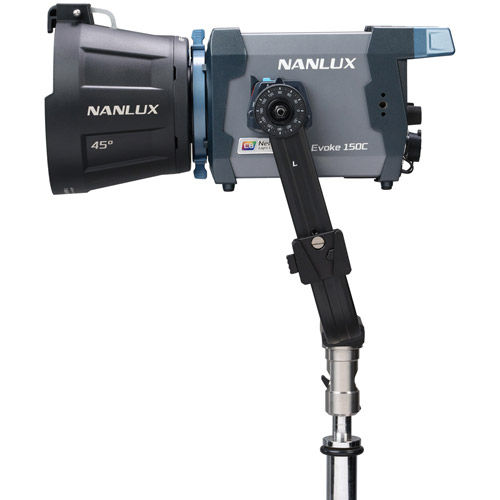

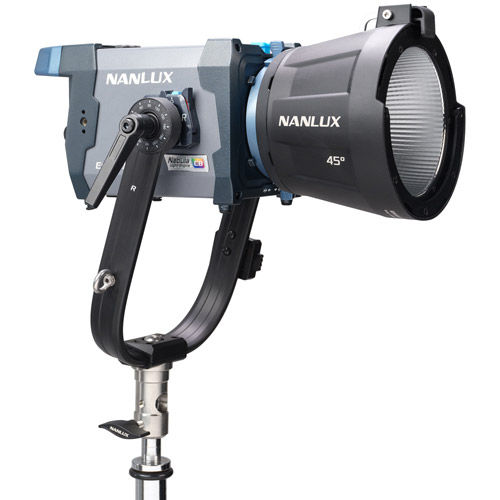

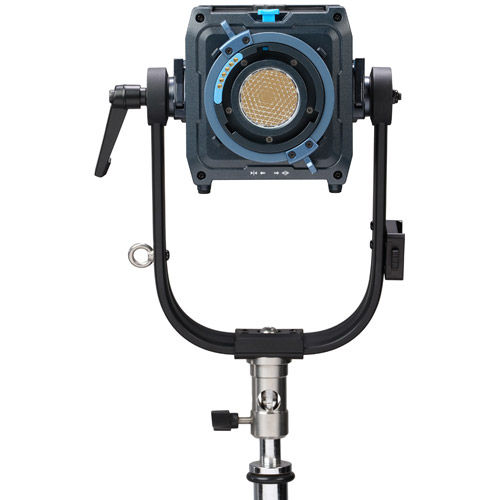

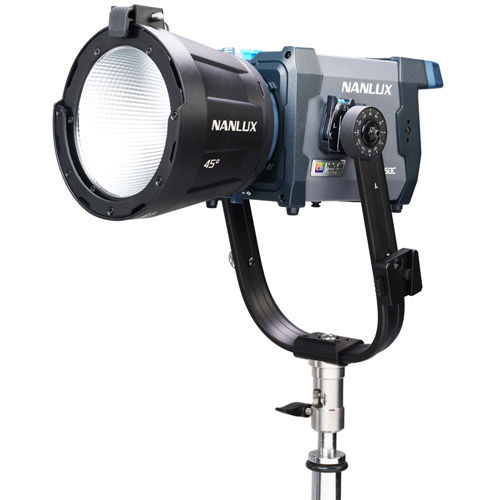

Nanlux Evoke 150C LED Full-Color Spot Light
Nanlux Evoke 150C LED Full-Color Spot...- Toronto Available for Order
- Ottawa Available for Order
- Mississauga Available for Order
- Calgary Available for Order
- Edmonton Available for Order
Lease this for: $61.31 Learn More
Overview
Evoke 150C | LED Full-Colour Spot Light
Key Features:
- Innovative Nebula C8 Light Engine
- IP66 Rating
- Lightweight 2.11 kg (4.65 lbs)
- All-in-One Design
- Two Power Options
- Ergonomic Design
- Linear Dimming
- Multiple Control Methods
- 5 Fan Modes
- FE Mount and FM Mount Complete Accessory Ecosystem
Innovative Nebula C8 Light Engine
Combining deep red, red, amber, lime, green, cyan, blue, indigo) to achieve 1,000K-20,000K with G/M±200 adjustment.
IP66 Rating
For robust weather protection.
Weighing Only 2.11 kg (4.65 lbs)
Made of magnesium alloy for significant weight reduction.
All-in-One Design
Unibody with integrated power supply and controller.
Two Power Options
AC power supply or one 14.4–28V V-mount battery for full power output.
Ergonomic Design
Including single-sided locking mechanism with an angle indicator, tilt-angle yoke, and additional PosiTight system on FE mount.
Linear Dimming
From 0.0% to 100.0%, with precise control between 0.0% and 0.1%.
Multiple Control Methods
On-board, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, NFC, Wired Controller.
5 Fan Modes
SMART, FULL SPEED, LOW SPEED, PAUSE, OFF.
FE Mount and FM Mount Complete Accessory Ecosystem
Built with FE mount (FM mount with electronic contacts), compatible with FE and FM accessories, and includes the PosiTight system for dual security.
What's Included
Evoke 150C LED Full-Colour Spot LightRF-FE-45 FE Mount Reflector 45°
AC Power Cable 4.5m
D-Tap Cable
USB Flash Drive
AS-MB-1 Magnetic Base
User Manual
Carrying Bag
Reviews
Product Specifications
Evoke 150C |
|
|---|---|
| EAN Code | 6949987492306 |
| Rated Power | 150W |
| Input Voltage / Current | AC100-240V/50-60Hz, 2A Max DC14.4-28V PD3.0 (12-28V) 60W Min |
| Beam Angle | 47° |
| LED Light Engine | Nebula C8 Light Engine: dRRALGCBI |
| CCT | 1000K-20000K (G/M±200) |
| CRI | Average 96 |
| TLCI | Average 97 |
| TM-30 Rf | Average 96 |
| TM-30 Rg | Average 100 |
| Dimming | 0.0% - 100.0%, by 0.1% increment |
| Dimensions | Light Fixture: 209.14 × 146.95 × 127.29 mm (8.23 × 5.79 × 5.01") Yoke: 282.46 × 226.32 × 89.21 mm (11.12 × 8.91 × 3.51") RF-FE-45 FE Mount Reflector 45°: Φ131.8 × 206 × 195.5 mm (Φ5.19 × 8.11 × 7.7") D-Tap Cable: 1.5 m (4.92') AS-MB-1 Magnetic Base: 29×43.7 × 17.3 mm (1.14 1.72 × 0.68") Carrying Bag: 360 × 220 × 245 mm (14.17 × 8.66 × 9.65") |
| Weight | Light Fixture: 2.11 kg (4.65 lbs) Yoke: 0.54 kg (1.19 lbs) RF-FE-45 FE Mount Reflector 45°: 0.34 kg (0.75 lbs) AC Power Cable 4.5 m: 0.37 kg (0.82 lbs) D-Tap Cable: 0.09 kg (0.2 lbs) AS-MB-1 Magnetic Base: 0.03 kg (0.066 lbs) Carrying Bag: 2.43 kg (5.36 lbs) |
Evoke 150C Illumination |
|||
|---|---|---|---|
Light Only |
|||
CCT/Distance |
1M |
3M |
5M |
| 2700K | 11310 lux 1051 fc |
1239 lux 115 fc |
460 lux 43 fc |
| 3200K | 12120 lux 1126 fc |
1320 lux 123 fc |
491 lux 46 fc |
| 5600K | 12160 lux 1130 fc |
1328 lux 123 fc |
495 lux 46 fc |
| 6500K | 12680 lux 1178 fc |
1368 lux 127 fc |
514 lux 48 fc |
| R | 1705 lux 158 fc |
179 lux 17 fc |
67 lux 6 fc |
| G | 5680 lux 528 fc |
615 lux 57 fc |
230 lux 21 fc |
| B | 1600 lux 149 fc |
174 lux 16 fc |
65 lux 6 fc |
With 25° Reflector |
|||
| 2700K | 78200 lux 7265 fc |
5090 lux 473 fc |
1696 lux 158 fc |
| 3200K | 85400 lux 7934 fc |
5570 lux 517 fc |
1831 lux 170 fc |
| 5600K | 83500 lux 7757 fc |
5460 lux 507 fc |
1818 lux 169 fc |
| 6500K | 87600 lux 8138 fc |
5730 lux 532 fc |
1875 lux 174 fc |
| R | 10160 lux 944 fc |
645 lux 60 fc |
235 lux 22 fc |
| G | 38700 lux 3595 fc |
2520 lux 234 fc |
838 lux 78 fc |
| B | 10920 lux 1014 fc |
712 lux 66 fc |
237 lux 22 fc |
With 45° Reflector |
|||
| 2700K | 20660 lux 1919 fc |
1978 lux 184 fc |
724 lux 67 fc |
| 3200K | 22640 lux 2103 fc |
2177 lux 202 fc |
791 lux 73 fc |
| 5600K | 22230 lux 2065 fc |
2155 lux 200 fc |
784 lux 73 fc |
| 6500K | 23230 lux 2158 fc |
2230 lux 207 fc |
814 lux 76 fc |
| R | 2604 lux 242 fc |
238 lux 22 fc |
90l ux 8 fc |
| G | 10200 lux 948 fc |
982 lux 91 fc |
357 lux 33 fc |
| B | 2882 lux 268 fc |
276 lux 26 fc |
100 lux 9 fc |
