• Webcode: 253740 • Mfr: ECM680S
  • FREE SHIPPING Available
Product Highlights
  • Shotgun Microphone
  • Stereo/Mono Shotgun Pickup Pattern
  • XLR Connection
  • Wired
Web Availability: Special Order

Overview

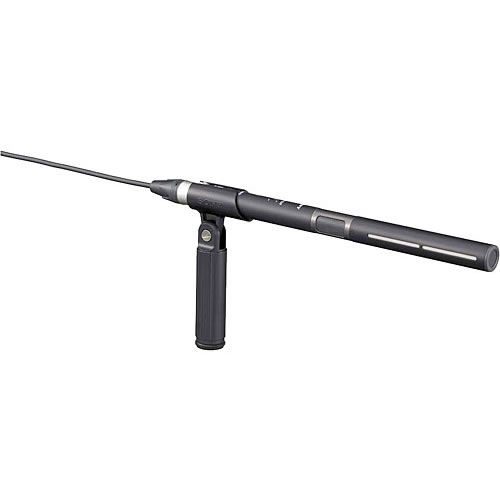

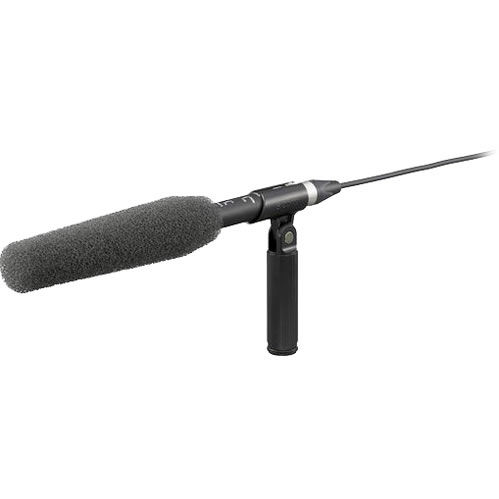

The Sony ECM-680 Stereo Shotgun Microphone provides both M/S (Mid-Side) stereo, and mono audio capturing, at the touch of a switch. The electret-condenser, unidirectional (cardioid) ECM-680, features internal M/S decoding for true stereo placement.

In mono mode, the ECM-680 captures audio like a true shotgun microphone, with superb audio rejection and increased range. The wide frequency response, excellent signal-to-noise ratio and wide dynamic range result in pristine audio reproduction. Measuring only 9-inches long, the ECM-680 is an ideal solution for camera mount applications.

Key Features



  • Switchable M/S and Unidirectional Modes
  • Switchable Low-Cut Filter
  • Wide & Flat Frequency Response
  • Includes Remote Audio 5-Pin Stereo XLR Female to Dual XLR Male Y-Cable - 18"

M/S Stereo and Mono Capturing
The electret-condenser, unidirectional (cardioid) ECM-680 features internal M/S decoding for true stereo placement. In mono mode, the ECM-680 captures audio like a true shotgun microphone, with superb audio rejection and increased range.

Pristine Audio Quality
The wide frequency response, excellent signal-to-noise ratio and wide dynamic range result in pristine audio reproduction.

Built-in Low Cut Filter
Built-in, two position low-cut filter switch eliminates unwanted low-frequency noise and ambiance.

What's Included

  • Sony ECM-680S M/S Stereo Shotgun Microphone
  • Windscreen
  • Microphone Holder
  • Microphone Spacer
  • 5-pin XLR to 5-pin XLR Microphone Cable
  • Stand Adapter
  • Carrying Case
  • Operating Instructions

Reviews

Product Specifications



Detailed Specifications
Transducer Electret Condenser
Polar Pattern M/S (Mid-Side) Stereo
Unidirectional (Cardioid)
Frequency Response Stereo: 50Hz to 20kHz
Mono: 40Hz to 20kHz
Dynamic Range (Typical) Stereo: 104dB or more
Mono: 106dB or more
Signal-to-Noise Ratio Stereo: 74dB or more
Mono: 76dB or more
Maximum Input Sound Level 124dB SPL
Power Requirements DC 40 to 52V
Consumption: Stereo - 4mA or less x 2ch
Mono - 4mA or less
Output Impedance 100 ohms +/- 20%
Output Connectors 5-pin XLR (Cable Supplied)
Pad No
Low Frequency Roll-Off Two Position (M,V) Low-Cut Filter
Dimensions (L x Diameter) 9.84 x 0.78" (250 x 20 mm)
Weight 140 g (4.9 oz)
